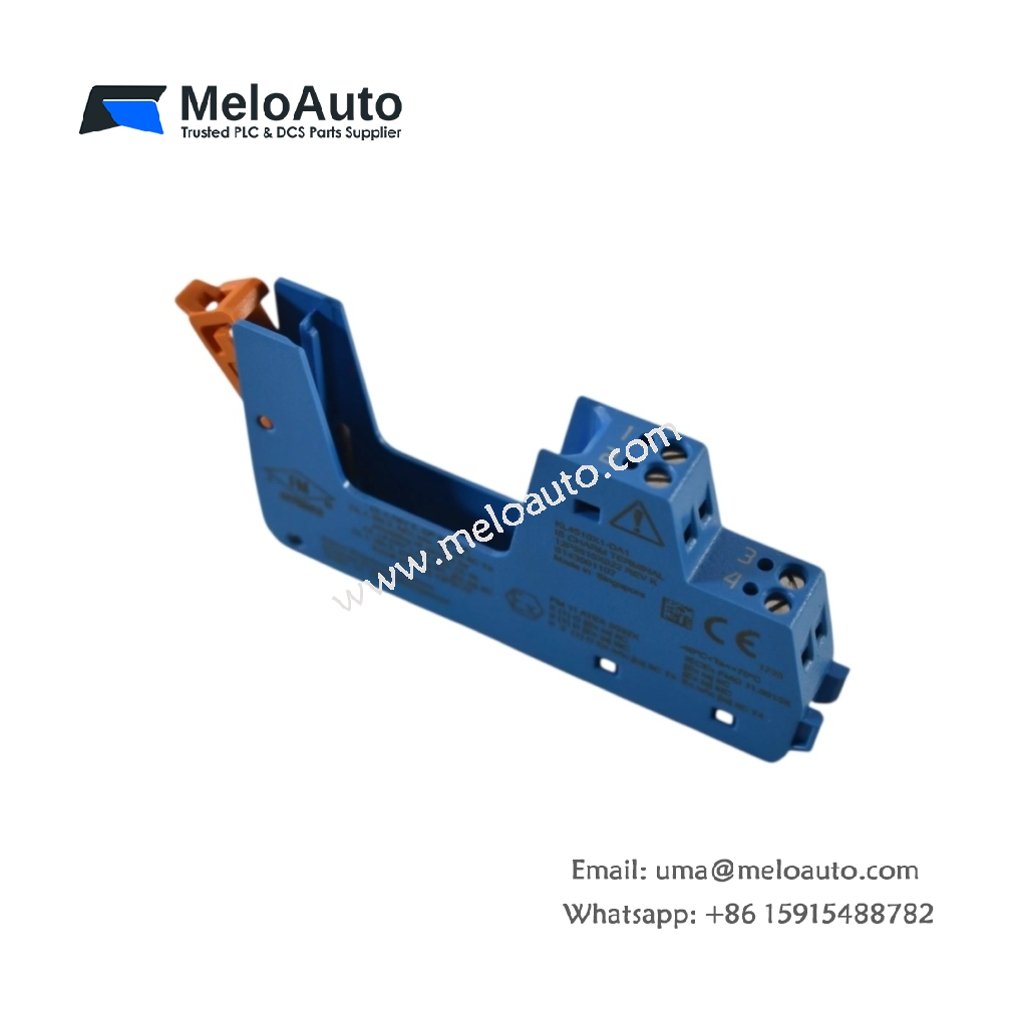

Emerson KL4510X1-DA1 DeltaV IS CHARM Terminal Block Specs

The KL4510X1-DA1 terminal block from Emerson serves DeltaV IS CHARM cabinets with dependable intrinsically safe wiring. This module routes field signals safely and keeps hazardous-area circuits separated from control electronics. Engineers choose this block when they need certified IS protection and tidy marshalling.

Technical Specifications

Parameter	Specification
Product Model	KL4510X1-DA1
Module Type	DeltaV IS CHARM Terminal Block
Connection Type	Screw-type clamping terminals
Interface	Field wiring terminals, CHARM carrier contacts
Mounting	DeltaV IS CHARM carrier slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.28 kg
Dimensions	Approx. 165 mm × 100 mm × 30 mm
Energy Storage	On-board capacitors for signal filtering
Component Count	Multiple termination points per block

Interface and Wiring Details

The KL4510X1-DA1 links hazardous-area field wiring to the DeltaV IS CHARM carrier. Screw-type clamps hold conductors firmly and resist vibration in continuous plant operation. Therefore, technicians achieve secure terminations without soldering or adapter kits. The block seats in one carrier slot and connects through dedicated carrier contacts.

Physical and Environmental Parameters

The module measures roughly 165 mm by 100 mm by 30 mm and weighs about 0.28 kg. Its slim housing fits dense marshalling panels and keeps cabinet layout efficient. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board filtering suppresses noise before signals reach the CHARM electronics.

Why This Module Matters

Plant teams value the KL4510X1-DA1 for its IS-rated construction and straightforward servicing. The energy storage components steady signals across long field cable runs. As a result, measurement quality stays consistent and maintenance takes less time. Technicians also appreciate the clear channel labeling and fast terminal access.
