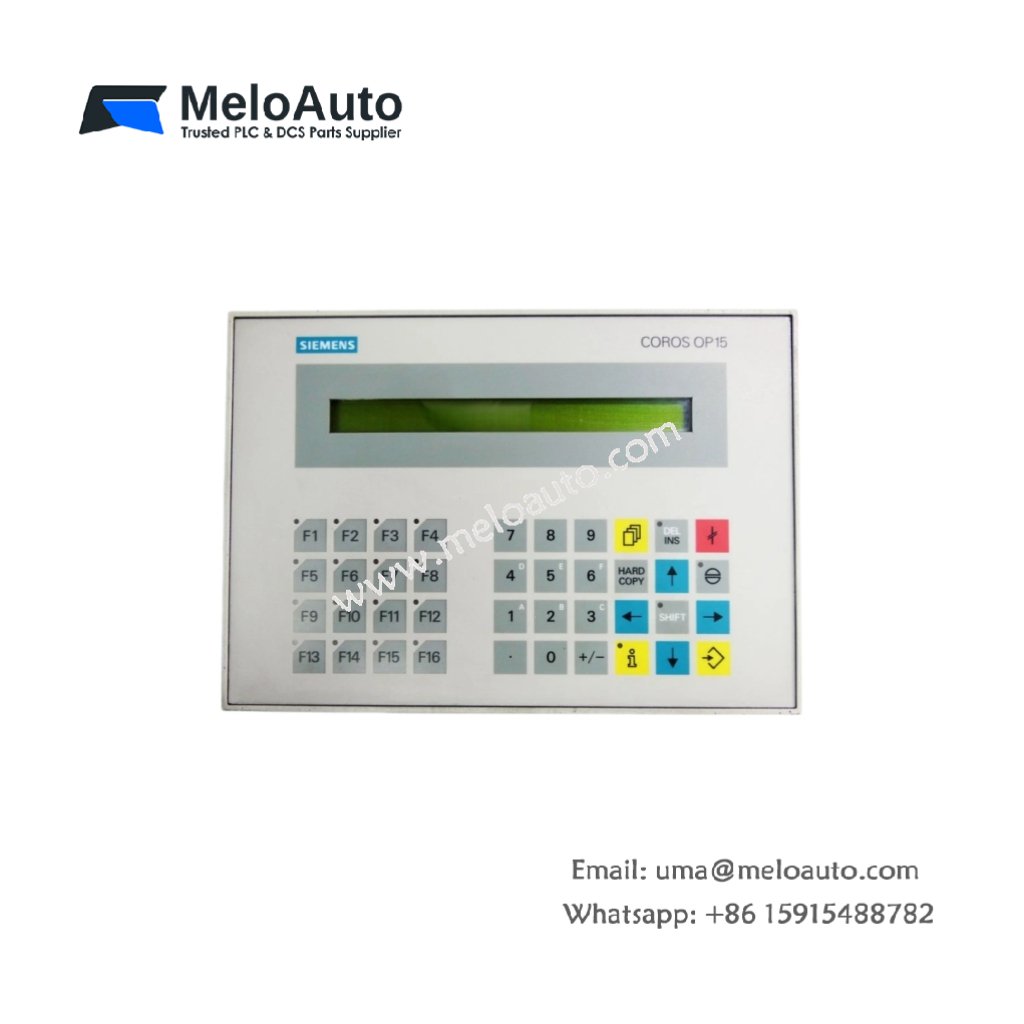

The 6AV3515-1EB01 functions as a robust operator panel for Siemens industrial automation systems. This unit provides a clear graphical interface for monitoring and controlling machinery. It displays process parameters, alarm messages, and production statistics effectively. The panel accepts operator commands through a combination of touchscreen and function keys. Consequently, it enables efficient human-machine interaction in demanding factory environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Category | Operator Panel |
| Part Number | 6AV3515-1EB01 |
| Display Type | TFT LCD (color) |
| Display Size | 15.0 cm (diagonal) |
| Display Resolution | 640 x 480 pixels (VGA) |
| Touchscreen | Resistive (analog) |
| Function Keys | 12 (configurable) |
| Communication | RS-232, RS-422, RS-485, Ethernet |
| Memory | 8 MB (application storage) |
| Power Supply | 24 VDC |
| Current Consumption | 500 mA (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 23.0 cm x 18.0 cm x 6.5 cm |
| Weight | 1.6 kg |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel-mount (cutout: 19.5 cm x 14.5 cm) |
Display and Interaction Features
The 6AV3515-1EB01 features a bright TFT display for excellent visibility in industrial conditions. Users can adjust the backlight brightness to suit ambient lighting. The resistive touchscreen responds reliably to gloved hands and stylus inputs. Additionally, twelve configurable function keys provide quick access to critical operations. The module supports multi-language text for international deployment. Furthermore, the panel includes a real-time clock for time-stamping events.
Communication and Integration
This operator panel supports multiple interfaces for flexible system integration. It connects to Siemens PLCs, drives, and third-party devices seamlessly. Users can create dynamic screens using the WinCC configuration software. The 6AV3515-1EB01 also supports recipe management and data logging functions. Its IP65 front rating ensures reliable operation in dusty and wet environments.
