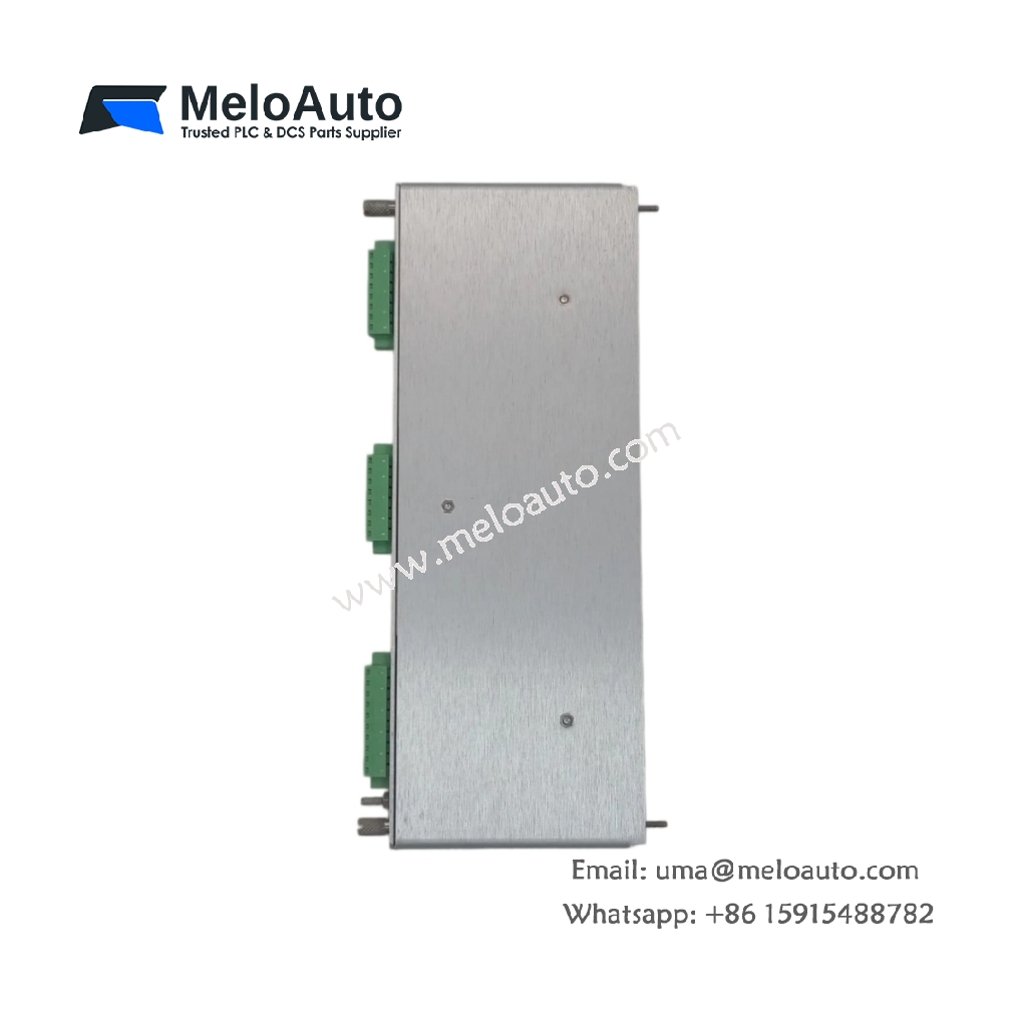

Bently Nevada 126632-01 RIM | 3500 Rack Interface Module

The Bently Nevada 126632-01 RIM (Rack Interface Module) serves as the primary communication interface for 3500 monitoring systems. This module connects the monitoring rack to external communication processors and host systems. The unit provides diagnostic data and configuration management for the entire rack.

Technical Specifications

Parameter	Specification
Product Type	Rack Interface Module (RIM)
Model	126632-01
Compatibility	Bently Nevada 3500 system
Communication Ports	1 x RS-232, 1 x RS-485
Data Transfer Rate	9600 bps – 115.2 kbps
Diagnostic Features	Real-time status, error logging
Rack Management	Module configuration, health monitoring
Dimensions (W x H x D)	241 x 152 x 25 mm
Weight	0.75 kg
Internal Components	1 x processor, 2 x UARTs, 1 x power monitoring IC
Connector Type	25-pin D-sub (female)
Power Supply	24V DC (from backplane)
Power Consumption	3.5W (typical)
LED Indicators	4 x status LEDs (power, communication, fault)
Operating Temperature	-20°C to +65°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Mounting	3500 rack (plug-in)
Approvals	CE, UL, CSA, ATEX

Primary Communication Hub for 3500 Systems

The Bently Nevada 126632-01 functions as the central communication hub for the 3500 rack. This module manages all data exchange between the monitoring system and external hosts. The unit consolidates data from multiple monitoring modules for transmission. Users can access real-time vibration and position data through this interface.

Dual Communication Interfaces for Flexible Connectivity

Two communication ports provide RS-232 and RS-485 connectivity for flexible integration. The RS-232 port connects to local programming devices and laptops. The RS-485 port supports multi-drop networking for multiple racks. Users can connect to various host systems without special adapters.

Comprehensive Rack Management and Diagnostics

The RIM manages configuration, health monitoring, and event logging for the entire rack. Users can view module status, channel health, and system diagnostics through the interface. The module logs errors and events for maintenance planning. This management capability simplifies system administration.

Real-Time Status and Health Monitoring

Four status LEDs provide immediate visual feedback on module and system operation. The power LED confirms proper supply to the rack interface. Communication LEDs indicate active data transfer on each port. A fault LED alerts operators to rack or module errors.

Seamless 3500 Rack Integration

The module plugs directly into the 3500 rack backplane for simple installation. A 25-pin D-sub connector provides field wiring for communication cables. Users can replace modules without disturbing field wiring. The half-height design fits standard 3500 rack configurations efficiently.

Low Power Consumption for Energy Efficiency

The Bently Nevada 126632-01 draws only 3.5W for minimal heat generation. This low power consumption reduces thermal load within the rack. The unit operates reliably across -20°C to +65°C ambient temperatures. Users can deploy the module in various industrial environments without thermal concerns.
