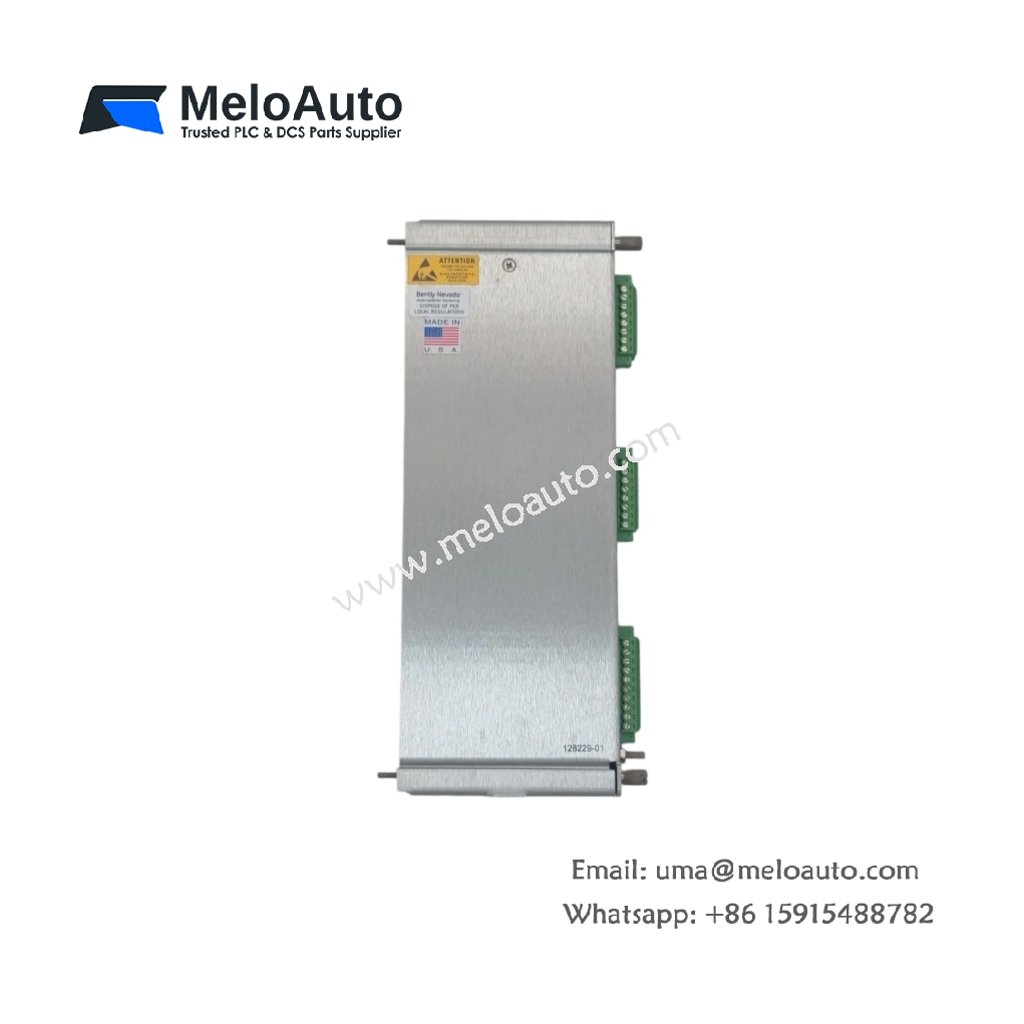

The Bently Nevada 3500/44 126599-01 Aero GT vibration I/O module provides specialized monitoring for aero-derivative gas turbines. This module interfaces with accelerometers and proximity probes for comprehensive vibration analysis. The unit delivers 4 isolated channels with advanced signal processing for turbine protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Vibration I/O module |
| Model | 3500/44 (Aero GT) |
| Compatibility | Bently Nevada 3500 system |
| Number of Channels | 4 inputs (isolated) |
| Input Types | Accelerometers, proximity probes, velocity transducers |
| Input Signal Range | ±5V, ±10V (configurable) |
| Frequency Range | 0.5 Hz to 10 kHz (configurable) |
| Dynamic Range | 80 dB (minimum) |
| Isolation Voltage | 500V DC (channel-to-channel) |
| Integration Options | Velocity, displacement (programmable) |
| Filter Types | Low-pass, high-pass, band-pass (configurable) |
| Dimensions (W x H x D) | 241 x 152 x 25 mm |
| Weight | 0.85 kg |
| Internal Components | 4 x isolation amplifiers, 1 x DSP, 4 x filters, 4 x ADCs |
| Signal Processing | Digital filtering, FFT, trend analysis |
| Connector Type | 25-pin D-sub (female) |
| Power Supply | 24V DC (from backplane) |
| Power Consumption | 6W (typical) |
| LED Indicators | 4 x status LEDs (channel health) |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | 3500 rack (plug-in) |
| Approvals | CE, UL, CSA, ATEX |
Specialized Monitoring for Aero-Derivative Turbines
The Bently Nevada 3500/44 126599-01 delivers specialized vibration monitoring for aero-derivative gas turbines. This module handles the high-frequency vibration characteristic of these machines. The unit supports accelerometers, proximity probes, and velocity transducers for comprehensive coverage. Users can monitor critical turbine components including bearings and blades.
Four Isolated Channels with Advanced Processing
Four isolated input channels provide independent measurement for multiple vibration points. 500V DC isolation prevents ground loops and protects against electrical noise. Each channel includes programmable filters and integration options. Users can configure velocity, displacement, or acceleration measurements per channel.
Wide Frequency Range for Comprehensive Analysis
The module covers 0.5 Hz to 10 kHz for complete vibration frequency analysis. This range captures both low-speed and high-speed turbine vibrations. Programmable filters eliminate unwanted frequencies for accurate measurements. Users can analyze sub-synchronous, synchronous, and harmonic vibration components.
Digital Signal Processing for Precise Measurements
An integrated DSP performs real-time signal processing for accurate vibration data. Digital filtering reduces noise and improves measurement fidelity. The module provides FFT analysis for frequency-domain diagnostics. Users can trend vibration amplitude and phase over time for predictive maintenance.
Configurable Input Types for Versatile Applications
The module accepts accelerometers, proximity probes, and velocity transducers. Users can configure each input for specific sensor types and ranges. Integration options allow velocity or displacement calculations from acceleration inputs. This versatility accommodates various turbine monitoring strategies.
Seamless 3500 Rack Integration
The module plugs directly into the 3500 rack backplane for simple installation. A 25-pin D-sub connector provides field wiring for all vibration sensors. Users can replace modules without system shutdown. The half-height design fits standard 3500 rack configurations efficiently.
