Product Overview

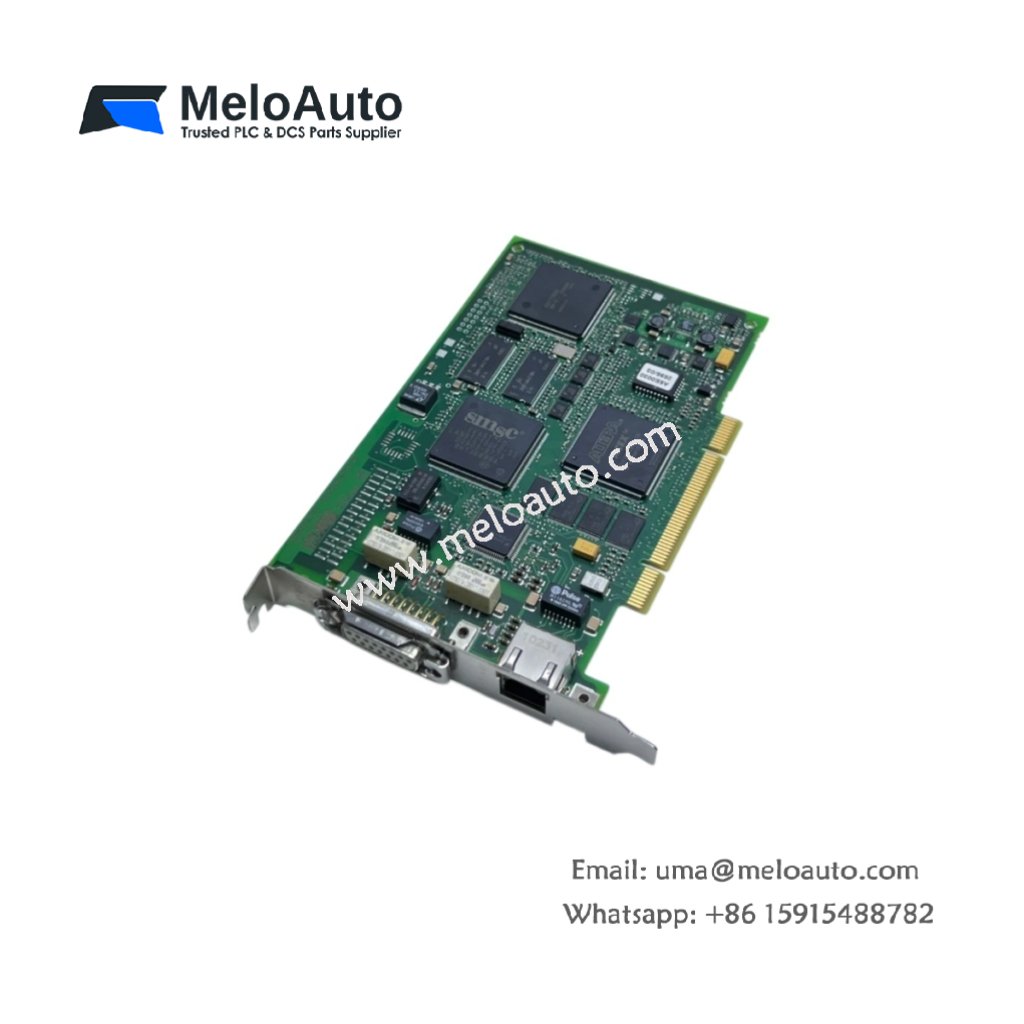

The Siemens 6GK1161-3AA01 communication network card connects SIMATIC S5 programmable controllers to industrial Ethernet networks. This module provides a reliable interface for data exchange between automation systems and higher-level control networks. It supports the S5-95U, S5-100U, S5-101U, S5-102U, S5-103U, S5-105U, S5-110U, S5-115U, S5-130U, and S5-135U PLC families. The card enables seamless integration into existing plant-wide communication infrastructures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6GK1161-3AA01 |
| Product Type | Communication Network Card |
| Compatibility | SIMATIC S5 Series (S5-95U through S5-135U) |
| Network Interface | Industrial Ethernet |
| Transmission Rate | 10/100 Mbps |
| Connection Type | RJ45 |
| Weight | Approximately 0.3 kg |
| Dimensions | 100 x 80 x 25 mm |
| Power Supply | 5 V DC (from backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Key Features and Benefits
Reliable Ethernet Connectivity
The Siemens 6GK1161-3AA01 provides a dependable path for integrating S5 systems into modern Ethernet-based control networks. It supports standard 10/100 Mbps transmission rates for flexible deployment scenarios. The RJ45 interface ensures compatibility with widely available cabling infrastructure.
Wide PLC Compatibility
This communication network card supports an extensive range of SIMATIC S5 controllers, from the compact S5-95U to the powerful S5-135U. This broad compatibility makes it a versatile solution for maintaining legacy systems. Users can standardize on a single card model across multiple S5 platforms.
Industrial-Grade Reliability
The card operates reliably within a 0°C to +60°C temperature range and withstands 5% to 95% humidity levels. Its robust construction ensures long-term performance in demanding factory environments. The module draws power directly from the PLC backplane, eliminating the need for separate power wiring.
Installation and Integration
Installing the 6GK1161-3AA01 requires inserting the card into an available slot on the S5 PLC rack. The module automatically configures itself upon system startup for most applications. Users can access diagnostic information through standard Siemens engineering tools. The card supports both TCP/IP and ISO protocols for maximum flexibility.
