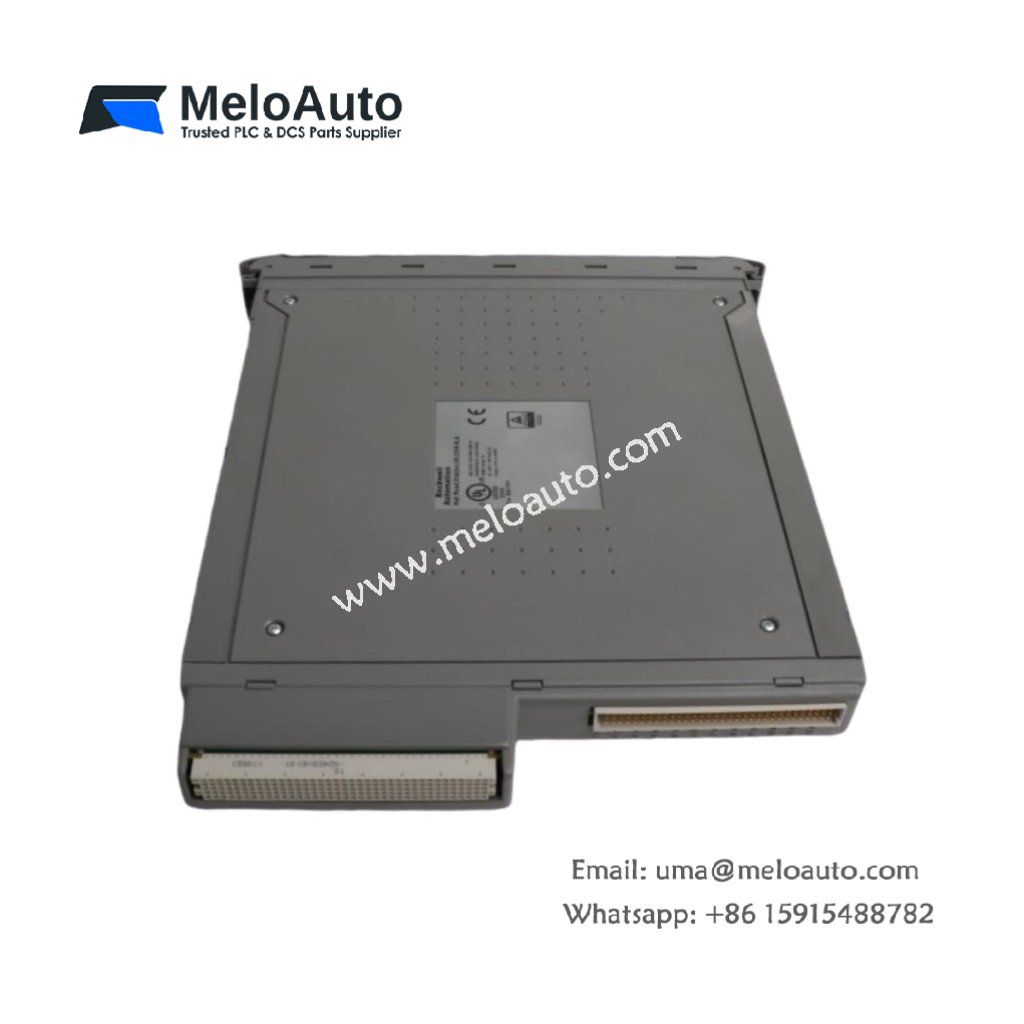

ICS TC31402 8-Channel Temperature Input Module

The ICS TC31402 is a high-performance 8-channel temperature input module designed for use with ICS Triplex programmable logic controllers (PLCs). This module is built to meet the needs of demanding industrial applications that require precise temperature measurements. Whether for process control, machine monitoring, or environmental sensing, the ICS TC31402 provides reliable and accurate performance in harsh conditions.

Key Features:

8-Channel Temperature Input: Collect data from multiple temperature sensors simultaneously.
Wide Input Range: Measures temperatures from -200°C to +1372°C, suitable for a variety of applications.
Supports Thermocouple and RTD Sensors: Compatible with multiple sensor types, including thermocouples and RTDs.
Programmable Input Filters: Allows for customization of input signal filtering to improve accuracy.
Built-in Calibration Circuitry: Ensures long-term accuracy with minimal maintenance.
Isolation Between Channels and Ground: Protects against electrical interference and noise.
Ruggedized Design: Designed for use in industrial environments with high reliability.
Easy Installation and Configuration: Simplifies setup, making it quick to integrate into your control systems.

Applications:

Temperature Measurement: Ideal for applications that require accurate temperature monitoring, such as process control and machine control.
Energy Management: Helps monitor temperature in energy systems for more efficient operation.
Environmental Monitoring: Track temperature changes in controlled environments to ensure optimal conditions.

Technical Specifications

Specification	Value
Part Number	TC31402
Manufacturer	ICS
Product Type	8-Channel Temperature Input Module
Input Channels	8
Temperature Range	-200°C to +1372°C
Sensor Types Supported	Thermocouple, RTD
Input Filters	Programmable
Calibration Circuitry	Built-in
Channel-to-Ground Isolation	Yes (1500V isolation)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Weight	0.66 lbs (0.30 kg)
Dimensions	4.2 x 3.1 x 1.4 inches (106.7 x 78.7 x 35.6 mm)
Power Consumption	0.6W (typical)
Power Supply	24V DC

Installation and Integration

The ICS TC31402 is designed for easy installation and seamless integration with ICS Triplex PLCs. The module supports a wide range of temperature sensors, including thermocouples and RTDs, making it versatile for different industrial applications. With its programmable input filters and built-in calibration circuitry, the TC31402 ensures stable and accurate temperature measurements over time.

The module also features channel-to-ground isolation to protect against external electrical interference, ensuring reliable performance even in noisy environments. Its rugged design makes it suitable for use in harsh industrial settings where durability and accuracy are crucial.
