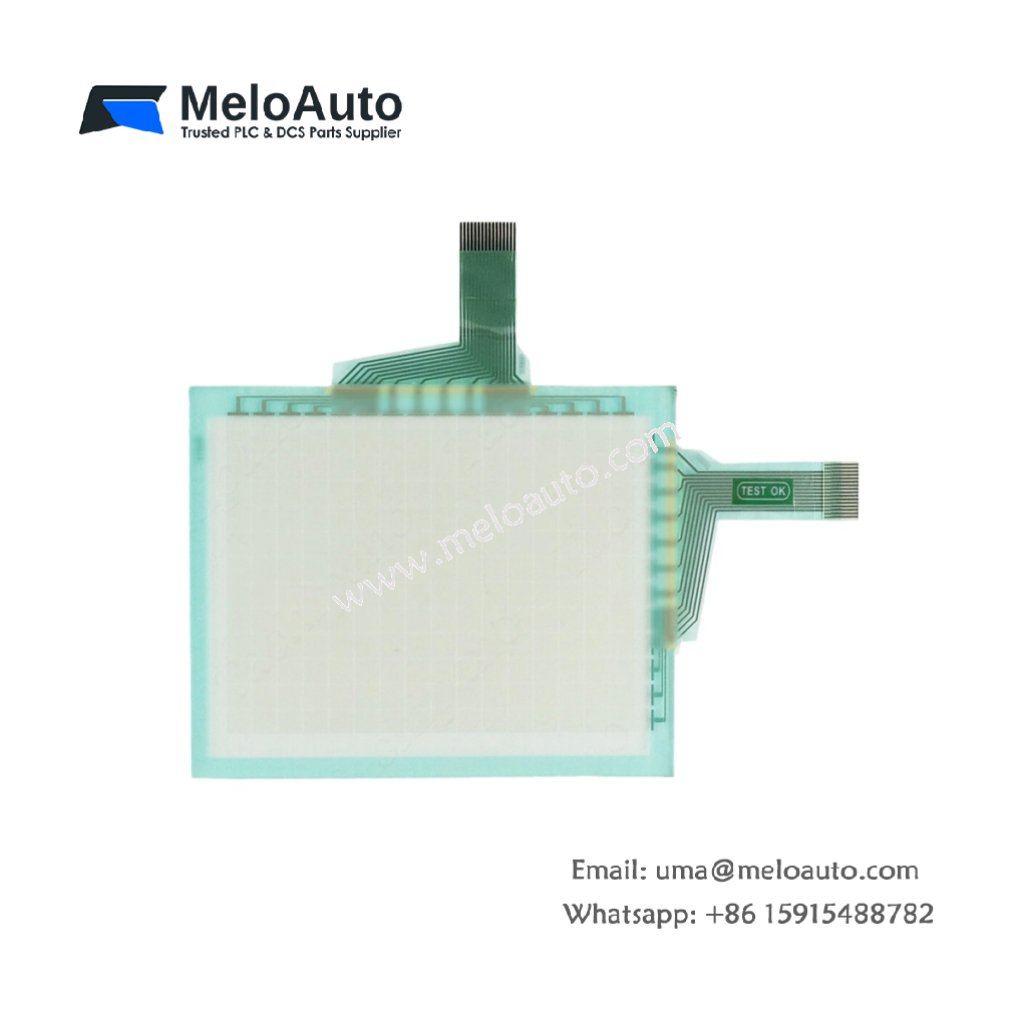

GE QPKCGDE0000 QuickPanel Display

This panel provides a graphical touch interface for machine monitoring and control. The GE QPKCGDE0000 displays process data and accepts operator commands via touch screen. It measures 220 mm in width and 150 mm in height. This unit weighs approximately 1.1 kg for panel mounting.

Technical Specifications Table

Parameter	Value
Product Model	GE QPKCGDE0000
Brand	GE Fanuc
Category	QuickPanel Display / HMI
Display Type	STN (Super-Twisted Nematic) color LCD
Display Size	6 inches diagonal
Display Resolution	320 x 240 pixels (QVGA)
Color Depth	256 colors
Touch Technology	Resistive analog touch screen
Communication Ports	1 x RS232, 1 x RS422/485, 1 x Ethernet (optional)
Dimensions (W x H x D)	220 mm x 150 mm x 55 mm
Panel Cutout	205 mm x 135 mm
Weight	1.1 kg
Internal Components	1 x 32-bit RISC CPU, 1 x flash memory, 1 x SDRAM
User Memory	4 MB flash for configuration data
Runtime Memory	8 MB SDRAM
Energy Storage	1 x 3 V lithium cell for real-time clock
Backlight Type	CCFL (Cold Cathode Fluorescent Lamp)
Backlight Life	50,000 hours typical
Operating Voltage	24 V DC external supply
Power Consumption	15 W maximum

Internal Architecture and Display Features

This QuickPanel uses a 32-bit RISC processor for fast screen rendering. A 6-inch STN color LCD shows 320 x 240 pixels with 256 colors. The GE QPKCGDE0000 includes a resistive touch screen for gloved-hand operation. Flash memory stores your HMI configuration without needing battery backup. A separate lithium cell maintains the real-time clock for time-stamped events. The CCFL backlight provides 50,000 hours of typical operating life.

Installation and Connection Guide

First, cut a 205 mm x 135 mm opening in your cabinet door for mounting. Next, insert the panel from the front and secure it with the mounting clamps. Then, connect a 24 V DC power supply to the rear terminal block. Link the RS232 port to your PLC or programming PC for configuration. Use GE QuickDesigner software to create your operator screens and assign touch functions. The panel communicates with GE Series 90-30, Series 90-70, and third-party PLCs via RS422/485. Replace the lithium cell when the low battery warning appears on the display screen.
