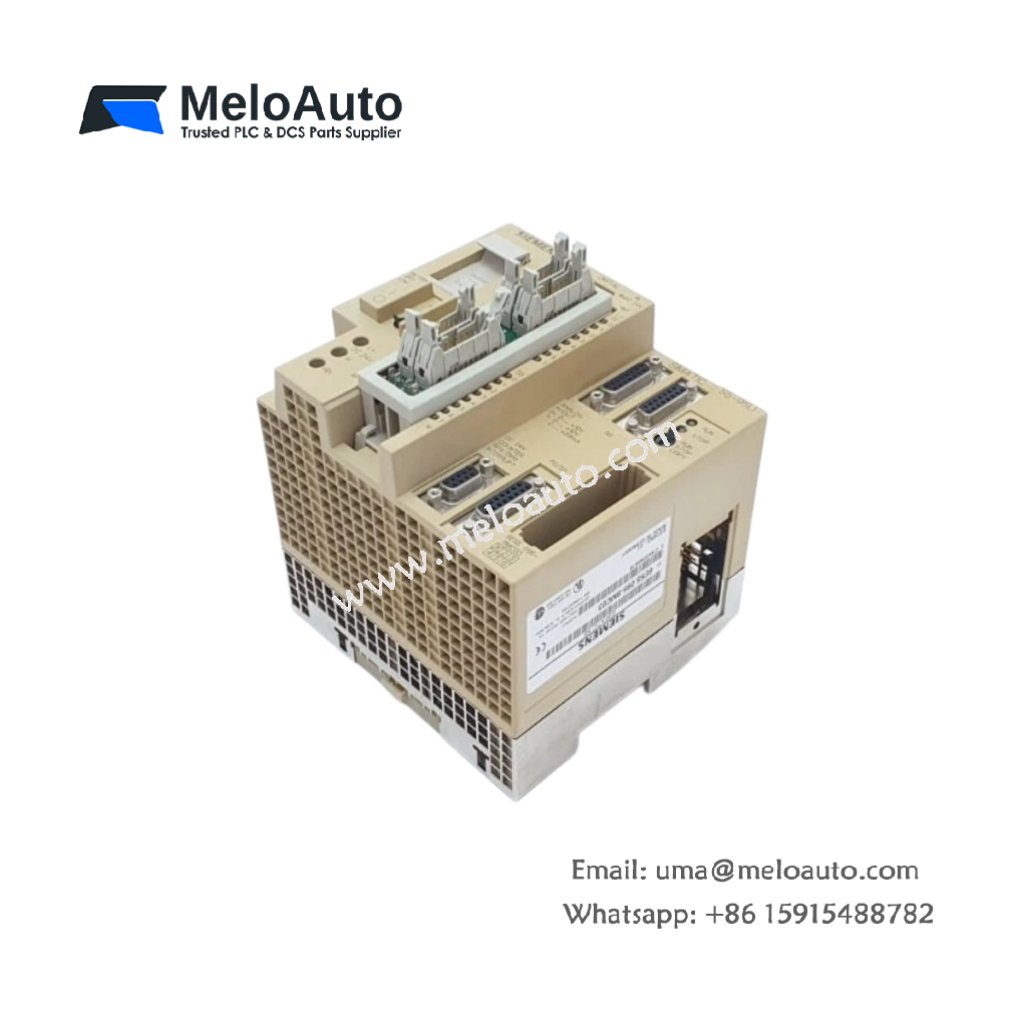

Siemens 6ES5095-8MC03 S5 Compact Unit

Integrated Control Solution for Small Applications

The 6ES5095-8MC03 operates as a compact unit for the Siemens SIMATIC S5 programmable controller series. This module integrates CPU, power supply, and I/O functions in one efficient unit. It provides a complete control solution for smaller machines and processes. The unit offers versatile I/O capabilities for diverse control tasks. Consequently, it delivers a cost-effective and space-saving alternative to modular systems.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Series	SIMATIC S5
Category	Compact Unit
Part Number	6ES5095-8MC03
Integrated CPU	Yes (dedicated processor)
Program Memory	16 KB RAM (battery-backed)
Data Memory	4 KB RAM (battery-backed)
Digital Inputs	16 (24 VDC)
Digital Outputs	16 (24 VDC, 0.5 A)
Analog Inputs	8 (0-10 VDC or 4-20 mA)
Analog Outputs	4 (0-10 VDC or 4-20 mA)
Communication	RS-232 (programming port)
Power Supply	115/230 VAC (selectable)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions	22.0 cm x 13.0 cm x 10.0 cm
Weight	1.8 kg
Status Indicators	LEDs (power, CPU run, fault)
Mounting	DIN rail or panel

Integrated Capabilities

The 6ES5095-8MC03 combines comprehensive control functions within a compact housing. It includes a built-in programming interface for straightforward configuration. The unit expands I/O capacity via the integrated bus interface. It features diagnostic LEDs for real-time status monitoring.

Application Suitability

This compact unit suits small to medium-sized automation systems and stand-alone machines. The 6ES5095-8MC03 also finds use in process monitoring applications and simple material handling systems. Its integrated design reduces installation complexity and costs.
