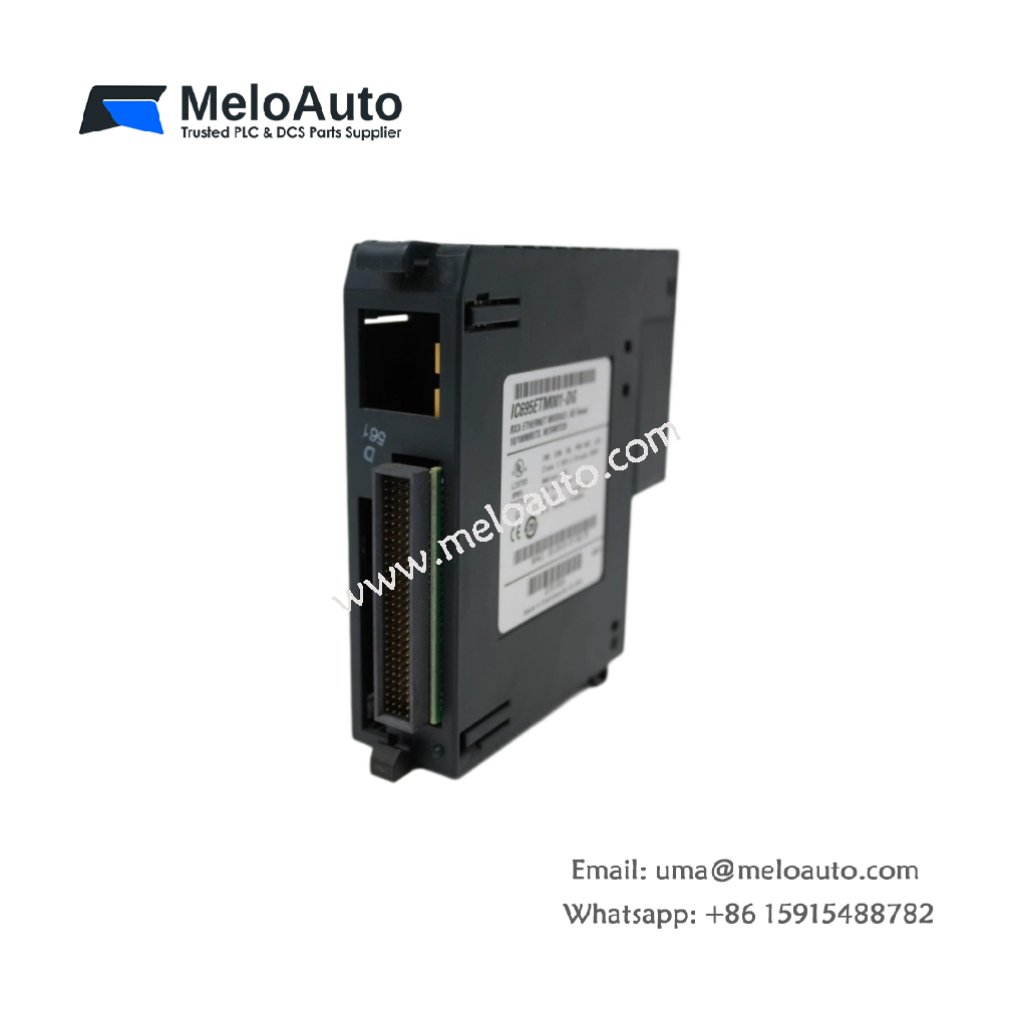

GE IC695ETM001-DG Ethernet Module | RX3i 2-Port 10/100 Mbps

Technical Overview and Key Specifications

The GE IC695ETM001-DG provides a robust Ethernet connection for PACSystems RX3i controllers. This module supports high-speed data exchange across industrial networks. You can rely on its dual RJ45 ports for redundant media connections. Each port automatically negotiates 10/100 Mbps speeds for flexible integration.

This interface module weighs approximately 0.32 kg (0.71 lbs). Its compact dimensions are 12.7 cm in height and 11.4 cm in depth. The module occupies a single slot in your RX3i rack. It includes no internal battery or separate energy storage unit. Instead, the module draws all operating power directly from the backplane.

Parameter	Specification
Manufacturer	GE Intelligent Platforms (Emerson)
Model	IC695ETM001-DG
Product Type	Ethernet Network Interface Module
Network Interface	2 x RJ45 (Copper)
Communication Speed	10/100 Mbps, Auto-negotiating
Backplane Current Draw	800 mA @ 3.3V DC
Power Dissipation	2.7 Watts (Typical)
Dimensions (H x D)	12.7 cm x 11.4 cm
Weight	0.32 kg
Energy Storage	None (No battery/capacitor)
Component Count	Single PCB with 2 ports

Connectivity and Installation

You must install this module into any RX3i Universal Backplane slot. The two RJ45 ports support both copper crossover and straight-through cables. Each port operates independently to provide redundant network paths. Consequently, the module maintains communication even if one link fails. This design uses no moving parts or external power adapters. Therefore, it offers a maintenance-free solution for critical control networks.
