Core Technical Specifications and Design Features

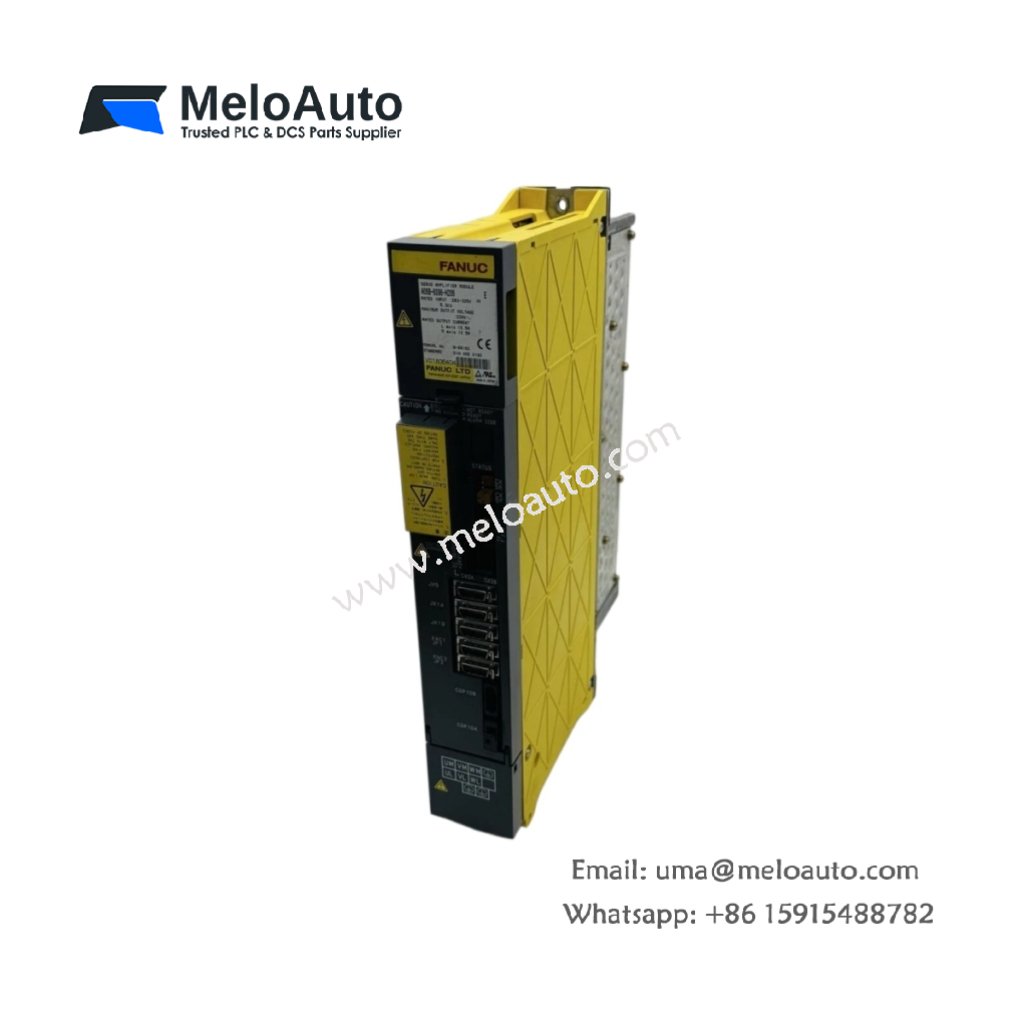

This servo amplifier module drives AC spindle motors in CNC machine tools. The GE A06B-6096-H206 delivers reliable power for precise rotational control. You will find this unit inside many FANUC-controlled machining centers. It operates without external cooling fans for quieter performance. The module weighs exactly 3.8 kilograms. Its dimensions measure 30 cm in height, 12 cm in width, and 21 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc Automation |
| Model | A06B-6096-H206 |
| Category | Servo Amplifier / Spindle Amplifier Module |
| Weight | 3.8 kg |
| Height | 30 cm |
| Width | 12 cm |
| Depth | 21 cm |
| Input Voltage | 200-230V AC (3-phase) |
| Main Circuit | 3-phase 200-230V AC |
| Control Circuit | Single-phase 200-230V AC |
| Number of Components | Single integrated power unit |
| Energy Storage | Built-in DC link capacitors (no battery) |
Installation and Operational Parameters
You must mount this module inside a standard CNC cabinet enclosure. The unit draws power directly from a 3-phase AC supply. Its internal capacitors store energy for short-term voltage stabilization. However, the amplifier does not include any backup battery. You should wait five minutes after power-off before servicing. This waiting period allows the DC link capacitors to discharge safely. The module uses forced convection cooling through its integrated heatsink. Consequently, you need proper ventilation around the unit.
Connectivity and System Integration
The GE A06B-6096-H206 connects to a FANUC CNC controller via high-density signal cables. It interfaces directly with the main processor board. The amplifier outputs three-phase motor power through dedicated terminals. You must use shielded cables for all feedback signals. This practice reduces electrical noise interference significantly. The module requires no separate software configuration for basic operation.
