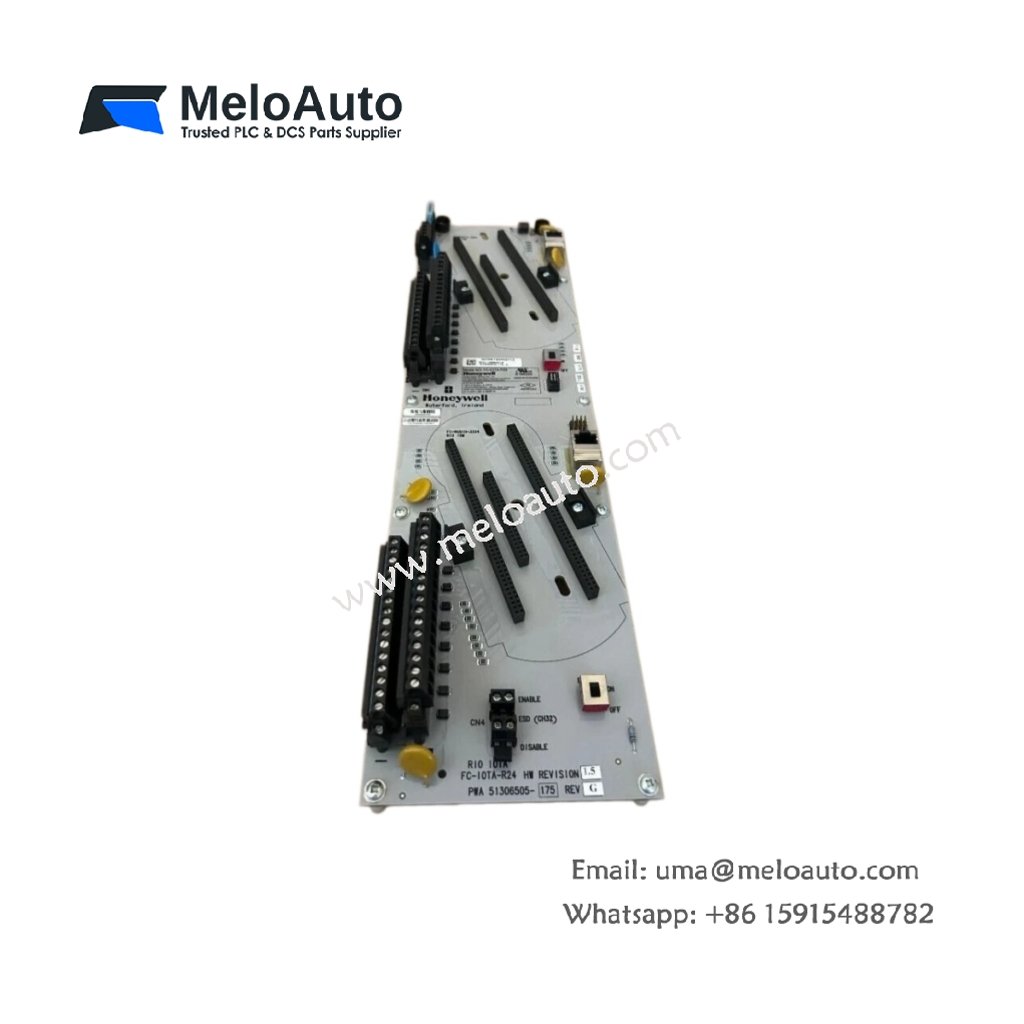

Honeywell FC-IOTA-R24 51306505-175 Rev G Termination Assembly

I/O Termination Assembly for Safety Manager Systems

The Honeywell FC-IOTA-R24 51306505-175 Rev G termination assembly provides field wiring termination for safety system I/O modules. This assembly connects field devices to Honeywell Safety Manager digital input modules. It serves as the interface between field sensors and the safety logic solver. The assembly supports emergency shutdown and fire and gas applications.

Technical Specifications

Field Wiring Interface

This assembly terminates field wiring for up to 24 digital input channels. Screw terminals accept solid and stranded conductors from 0.5 to 2.5 mm². Each channel includes clear labeling for straightforward wiring identification. Therefore, installers can complete field connections quickly and accurately.

Module Integration

The assembly interfaces directly with Honeywell Safety Manager digital input modules. A ribbon cable connects the termination assembly to the I/O module. This modular design simplifies installation and maintenance procedures significantly. Moreover, you can replace modules without rewiring field connections.

Robust Mechanical Design

The assembly features a durable housing that protects terminal connections effectively. DIN-rail mounting simplifies installation in standard industrial cabinets. The assembly occupies minimal panel space at 240 x 120 x 80 mm. Additionally, the sturdy construction withstands vibration and shock in plant environments.

Safety System Support

This termination assembly supports SIL 3 safety applications in process plants. It provides reliable connections for emergency shutdown and fire and gas systems. The assembly meets stringent safety standards for critical protection functions. Consequently, operators can trust this assembly for their most demanding safety applications.

Maintenance and Troubleshooting

Individual channel labeling simplifies identification during maintenance and troubleshooting. Test points on each channel enable signal verification without removing wires. The assembly design allows hot-swapping of connected I/O modules. This feature minimizes downtime during module replacement procedures.

Application Versatility

This termination assembly serves refineries, chemical plants, and offshore platforms. It also supports pipeline and terminal safety system installations. The assembly provides reliable field termination for oil and gas, power, and marine applications. Its standardized design ensures compatibility across Honeywell Safety Manager installations worldwide.
