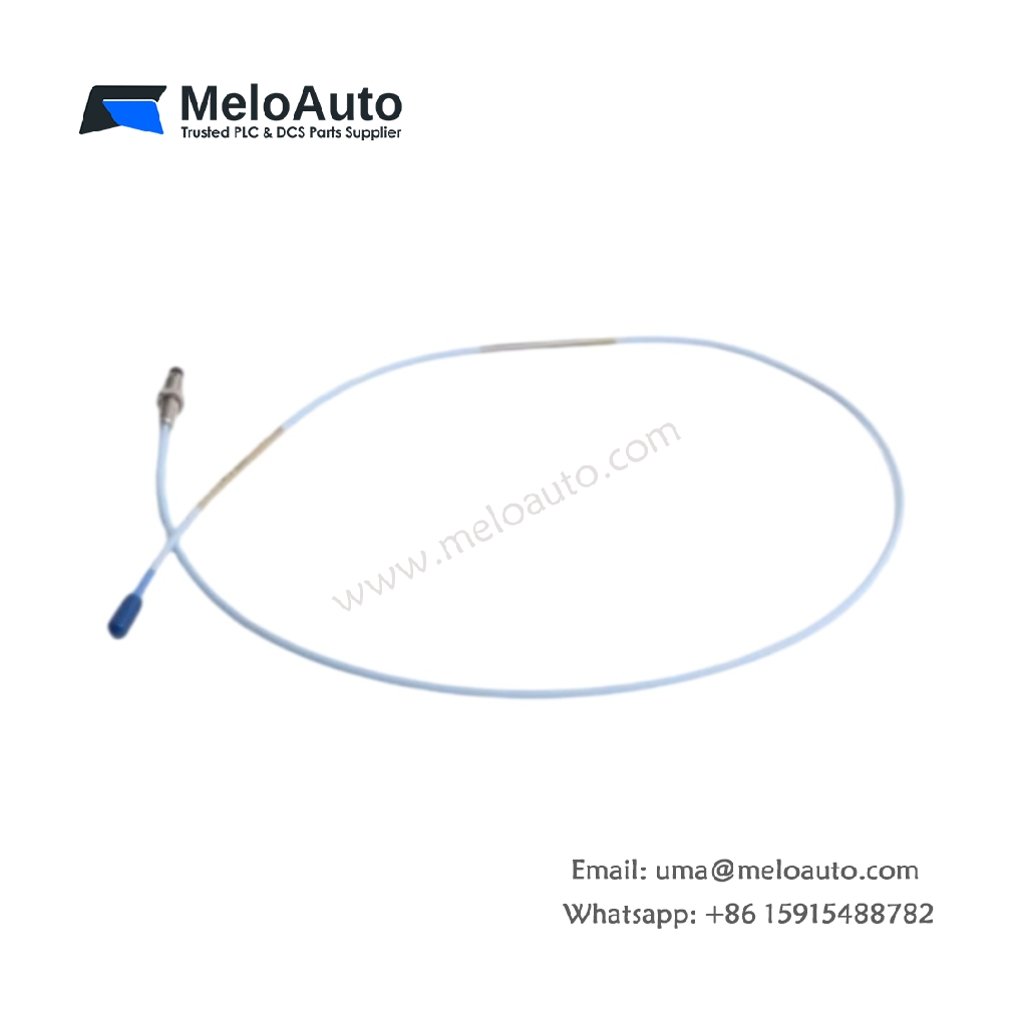

Bently Nevada 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probes

Core Technical Specifications

The 330106-05-30-10-02-00 belongs to the Bently Nevada 3300 XL family of reverse mount probes. Specifically, this 8 mm eddy current sensor measures shaft displacement in rotating machinery. Its reverse mount design allows installation from the rear of the bearing housing.

Each unit features a 30 mm unthreaded length and a 10 mm thread size. Additionally, the probe weighs roughly 0.36 kg with its integrated cable. The total case length measures 100 mm, so it fits standard 3300 XL mounting hardware.

Interface and Mounting Details

The 330106-05-30-10-02-00 uses a ClickLoc coaxial connector for secure signal transmission. Consequently, field technicians complete wiring without special tools or soldering. This probe works with 3300 XL extension cables and proximitor modules. Therefore, it integrates seamlessly into existing monitoring systems.

Reverse mounting means the cable exits away from the measured target. As a result, the probe suits confined spaces where front access remains limited. The system stores no internal energy, because it draws power from the proximitor.

Performance and Application Notes

Industrial operators rely on the 330106-05-30-10-02-00 for continuous vibration monitoring. Furthermore, its 10 kHz frequency response handles high-speed rotor applications. The 7.87 mV/µm scale factor matches standard Bently Nevada proximitor inputs. Meanwhile, the 2 mm linear range ensures precise displacement measurement.

The stainless steel housing resists corrosion and mechanical wear. In addition, the reverse mount configuration simplifies installation on compressors and turbines.
