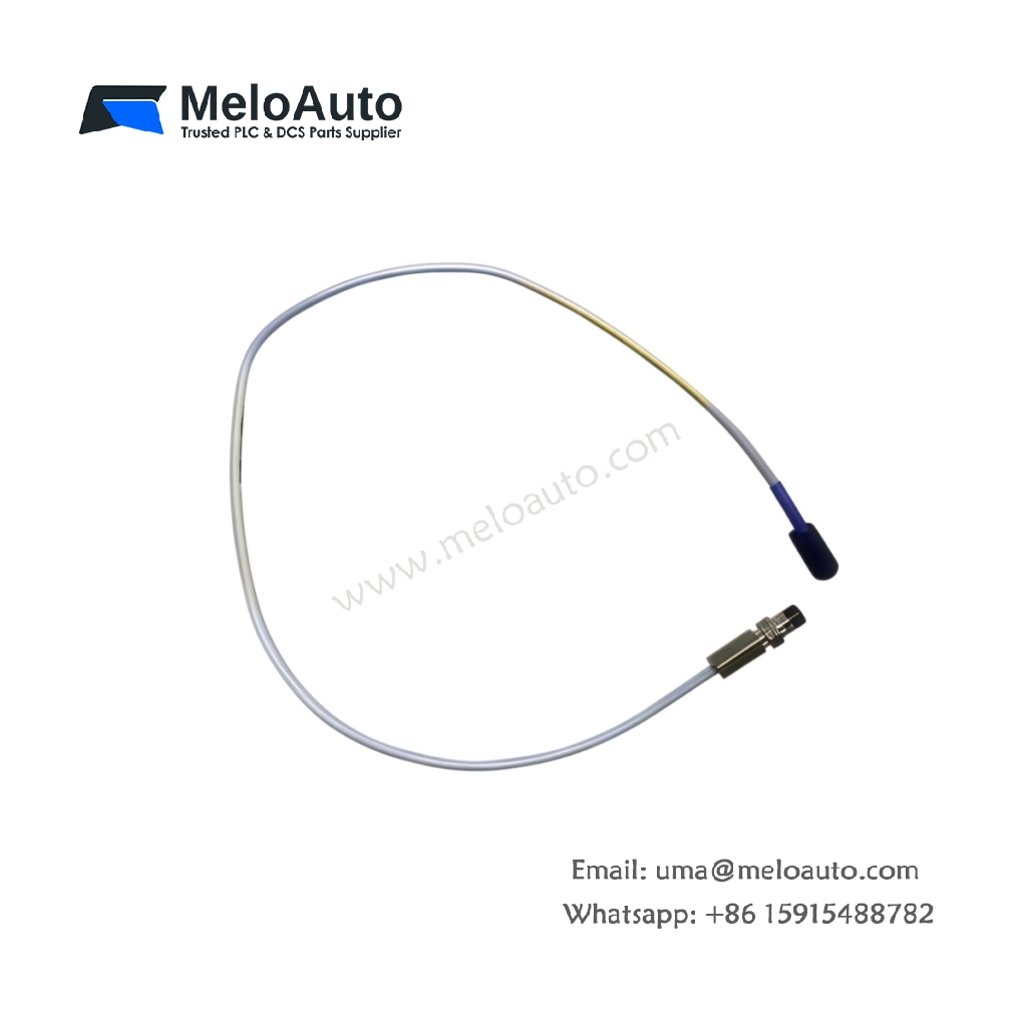

Bently Nevada 330103-00-05-10-02-00

Key Specifications of the 3300 XL 8 mm Probe

The 330103-00-05-10-02-00 belongs to the Bently Nevada 3300 XL series. Moreover, this 8 mm proximity probe delivers reliable eddy current measurement for rotating machinery. Its compact design suits tight installation spaces in industrial turbines and compressors.

Each probe measures 8 mm in tip diameter and weighs approximately 0.34 kg. Additionally, the stainless steel body resists corrosion in harsh plant environments. The unthreaded length reaches 50 mm, while the total case length spans 100 mm.

Parameter	Value
Tip Diameter	8 mm
Weight	~0.34 kg
Total Length	100 mm
Unthreaded Length	50 mm
Connector Type	ClickLoc coaxial
Cable Length	1.0 m
Operating Temperature	-35°C to +177°C
Linear Range	2 mm (80 mils)
Scale Factor	7.87 mV/µm (200 mV/mil)
Frequency Response	0 to 10 kHz

Interface and System Integration

The 330103-00-05-10-02-00 probe connects through a ClickLoc coaxial connector. Consequently, technicians achieve fast, tool-free installation without soldering. This probe pairs with 3300 XL extension cables and proximitor modules. Therefore, it forms a complete eddy current measurement chain.

The system stores no energy internally, since it relies on external proximitor power. Meanwhile, the probe generates a voltage signal proportional to shaft displacement. Its 2 mm linear range ensures accurate vibration and position readings.

Why This Probe Suits Industrial Monitoring

Plant operators choose the 330103-00-05-10-02-00 for continuous condition monitoring. Furthermore, its 10 kHz frequency response captures high-speed rotor dynamics. The 7.87 mV/µm scale factor matches standard Bently Nevada proximitor inputs. As a result, integration with existing 3300 XL systems remains straightforward.
