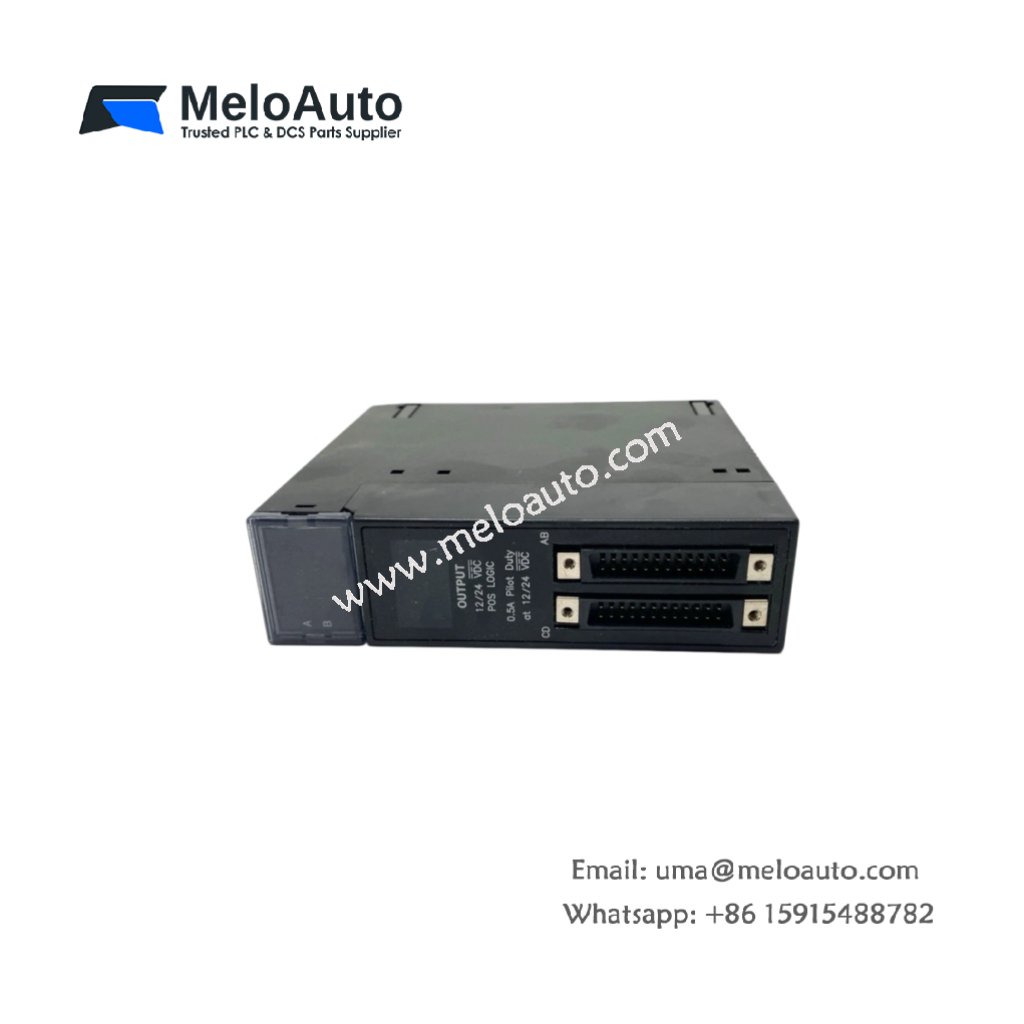

GE IC693MDL753F Logic Output Module

This logic output module provides reliable discrete control for Series 90-30 PLC systems. The GE IC693MDL753F features sixteen independent output channels in a compact form factor. Each channel delivers 24V DC at 0.5A for driving solenoids and indicator lamps. Consequently, automation engineers can control multiple field devices from a single module.

Technical Specifications of the Logic Output Module

The GE IC693MDL753F fits standard Series 90-30 PLC racks without any adapter. Its height measures 110 mm, and its depth reaches 130 mm. The module weighs approximately 0.28 kg including all internal circuitry. A single front panel LED array shows the on-off status for each output channel. The rear side uses a 48-pin backplane connector for power and communication. This design stores minimal energy in small suppression components only. Therefore, the module contains no batteries or large capacitors.

Parameter	Specification
Brand	GE Fanuc
Full Model	IC693MDL753F
Category	Logic Output Module
Dimensions (H x D)	110 mm x 130 mm
Weight	Approximately 0.28 kg
Output Channels	16 independent outputs
Output Type	24V DC, sourcing
Output Current	0.5A per channel, 4A total
Response Time	1ms typical
Backplane Connector	48-pin
Energy Storage	Minimal (suppression only)
Supply Voltage	5V DC from backplane

Functional Features and Protection Circuits

The GE IC693MDL753F includes built-in overcurrent protection on every output channel. You can connect each output directly to inductive loads without external suppression. The module automatically shuts down a channel during overload conditions. Each output also features an LED indicator for visual troubleshooting. Consequently, maintenance teams can identify faulty circuits instantly without meters.

Installation and System Compatibility

You must install this logic output module into any Series 90-30 PLC rack slot. The GE IC693MDL753F requires a standard 5V DC supply from the backplane. A removable terminal block accepts field wiring from 14 to 22 AWG. The module supports hot insertion into powered racks without system shutdown. Always verify load current limits before connecting multiple devices to one channel.

Maintenance and Operational Benefits

Because the GE IC693MDL753F stores no battery-backed data, it requires no periodic battery changes. Technicians can replace the module without losing any configuration settings. The transparent terminal cover prevents accidental contact with live wires. Consequently, the module offers safe and simple maintenance for industrial control panels.
