GE IC693CHS392E Expansion Baseplate

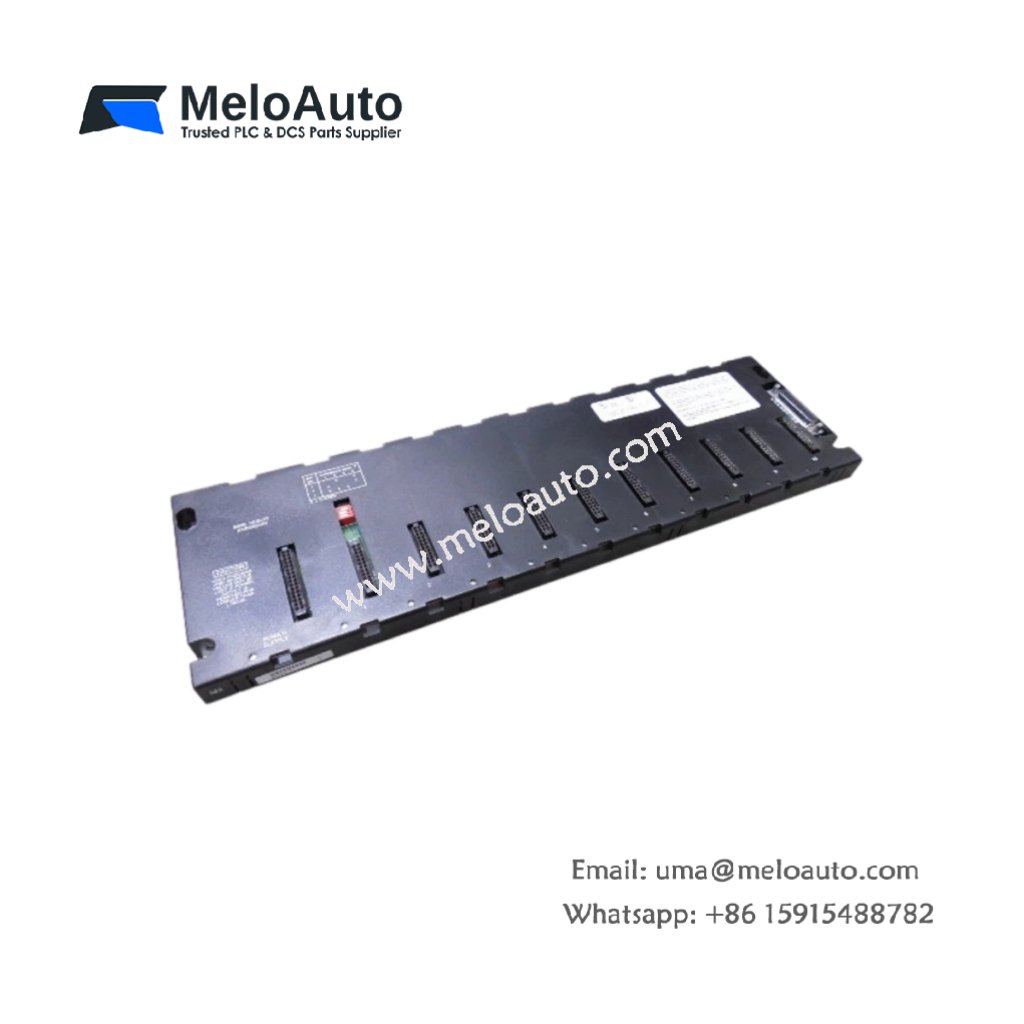

This baseplate adds extra I/O slots to your Series 90-30 control system. The GE IC693CHS392E connects to the CPU or another baseplate via expansion cable. It measures 482 mm in width and 160 mm in height. This unit weighs approximately 1.8 kg for cabinet installation.

Technical Specifications Table

Parameter	Value
Product Model	GE IC693CHS392E
Brand	GE Fanuc / Emerson
Category	Expansion Baseplate / I/O Rack
Compatible Series	GE Series 90-30
Number of Slots	10 slots
Slot Type	Series 90-30 standard
Backplane Bus	Passive with integrated PCB
Dimensions (W x H x D)	482 mm x 160 mm x 110 mm
Weight	1.8 kg
Mounting Type	19-inch rack or panel
Internal Components	1 x backplane PCB, 10 x slot connectors
Expansion Connector	1 x 50-pin male (for ribbon cable)
Ground Connection	1 x M4 grounding stud
Energy Storage	None (passive backplane)
Operating Voltage	Supplied by power supply module
Operating Temperature	0°C to 60°C

Internal Design and Backplane Architecture

This expansion baseplate uses a passive backplane PCB for signal distribution. Ten slot connectors link each module to the internal expansion bus. The GE IC693CHS392E receives power and communication from the main CPU baseplate. A 50-pin expansion connector accepts a ribbon cable to the master rack. The passive design introduces no signal delay or active signal processing. Consequently, this baseplate supports high-speed communication between all installed modules.

Installation and Connection Guide

First, mount this baseplate into a standard 19-inch cabinet using four M6 screws. Next, install your power supply module into the leftmost slot of the baseplate. Then, insert I/O modules into the remaining slots as needed. Connect the 50-pin ribbon cable between this baseplate and the CPU baseplate. Use the shortest possible cable length for reliable communication (maximum 15 meters). Connect the M4 grounding stud to your system’s earth ground for safety. This expansion baseplate works with all Series 90-30 CPU models including 311, 331, 341, 363, and 364. Always terminate unused expansion connectors with the provided protective cover.
