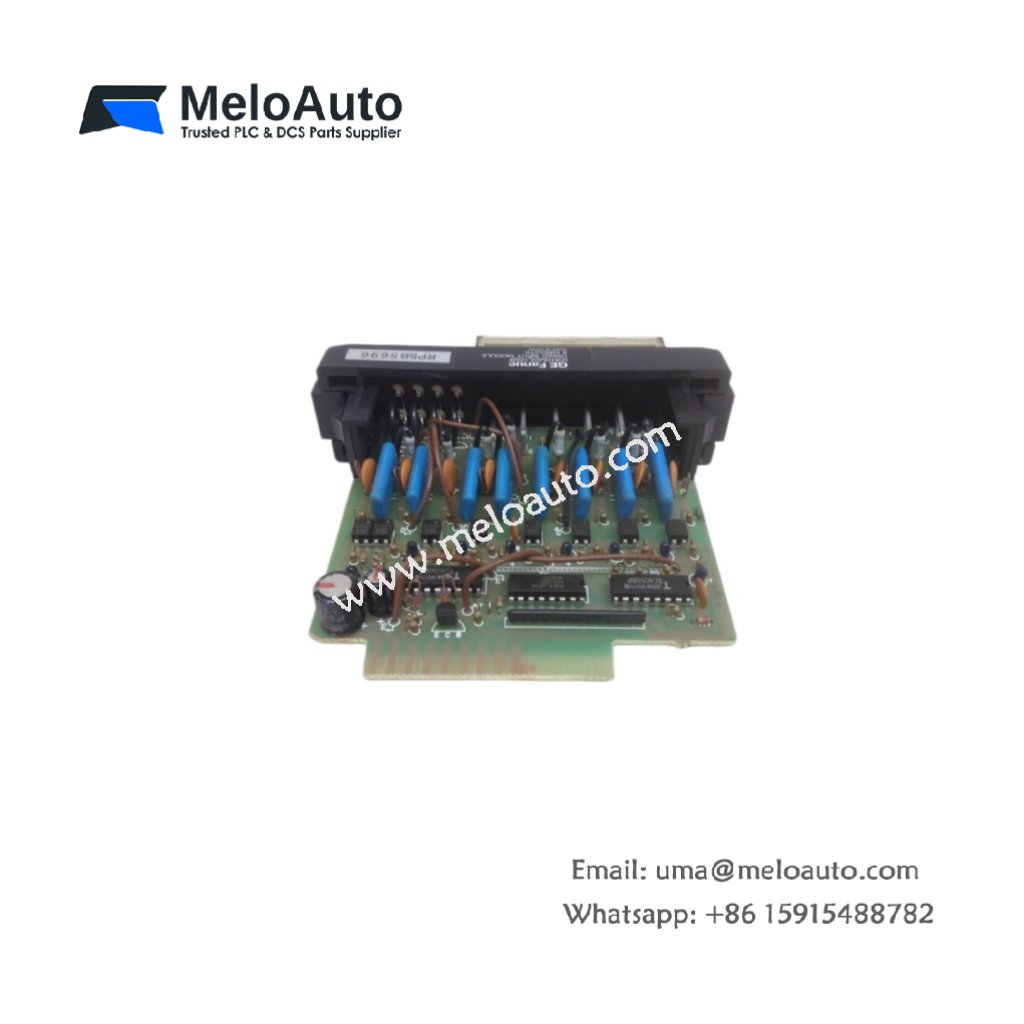

GE IC610MDL125B Input Module

This module captures field signals from switches, push buttons, and sensors. The GE IC610MDL125B provides 8 digital inputs for 120 V AC devices. It measures 200 mm in width and 90 mm in height. This unit weighs approximately 0.42 kg for rack mounting.

Technical Specifications Table

Parameter	Value
Product Model	GE IC610MDL125B
Brand	GE Fanuc
Category	Digital Input Module
Compatible Series	GE Series One (IC610)
Number of Inputs	8 channels
Input Type	120 V AC
Input Voltage Range	100 V AC to 132 V AC
Input Frequency	50/60 Hz
Input Current	12 mA typical per channel
Input Delay	10 ms (typical)
Dimensions (W x H x D)	200 mm x 90 mm x 85 mm
Weight	0.42 kg
Connector Type	1 x 20-pin screw terminal
Internal Components	8 x optocouplers, 1 x bridge rectifier
Electrical Isolation	1500 V AC between inputs and backplane
Energy Storage	None (real-time status only)
Input Filtering	Fixed 10 ms debounce
Operating Temperature	0°C to 60°C

Internal Design and Signal Processing

This input module uses eight optocouplers for electrical isolation from field devices. A bridge rectifier converts each AC input signal to DC for the optocoupler. The GE IC610MDL125B includes a fixed 10 ms filter for switch debouncing. This filter prevents false triggering from contact bounce or electrical noise. The module stores no input states after power loss. Consequently, the CPU reads fresh input values during each scan cycle. LEDs on the front panel show the real-time status of all 8 channels.

Installation and Wiring Guide

First, mount this module into any Series One rack slot. Next, connect your AC neutral wire to the common terminal (C). Then, wire your sensor outputs to the 8 input pins (I1 through I8). Each input accepts signals from limit switches, push buttons, or proximity sensors. Use a 1 A slow-blow fuse for external short circuit protection. The module requires no external power supply for the input circuits. This unit works with all GE Series One CPU models including IC610CPU101, IC610CPU104, and IC610CPU106. Always verify the input voltage polarity matches your field device specifications.
