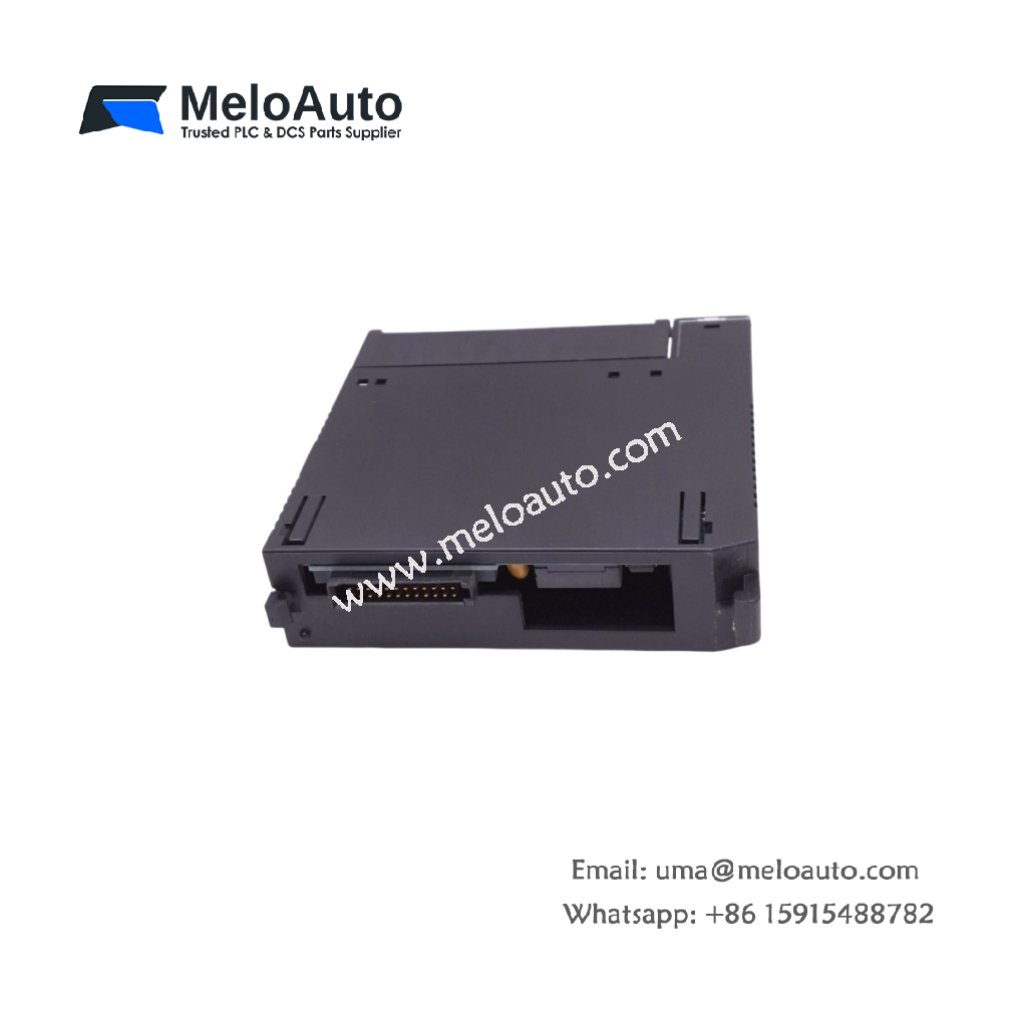

GE HE693STP101C Motor Indexer Module

This motor indexer module provides precise stepper motor control for automation systems. The GE HE693STP101C generates step and direction signals for single-axis positioning applications. A dedicated onboard microprocessor handles all acceleration and deceleration profiles independently. Consequently, machine builders can achieve accurate motion control without burdening the main PLC processor.

Technical Specifications of the Motor Indexer Module

The GE HE693STP101C fits a standard Series 90-30 PLC rack slot. Its height measures 110 mm, and its depth reaches 130 mm. The module weighs approximately 0.34 kg including all control circuitry. A single front panel LED array shows power, fault, and motor activity status. The rear side uses a 48-pin backplane connector for PLC communication. This design stores minimal energy in small filtering capacitors only. Therefore, the module contains no batteries or large energy storage elements.

Parameter	Specification
Brand	GE Fanuc / Horner
Full Model	HE693STP101C
Category	Motor Indexer Module (Stepper Controller)
Dimensions (H x D)	110 mm x 130 mm
Weight	Approximately 0.34 kg
Axis Control	1 stepper axis
Output Type	Step and Direction (5V DC)
Step Frequency	Up to 50,000 steps per second
Position Range	±16,777,215 counts
Acceleration Profiles	Programmable trapezoidal or S-curve
Backplane Connector	48-pin
Energy Storage	Minimal (filtering only)
Supply Voltage	5V DC from backplane

Functional Features and Motion Control

The GE HE693STP101C stores up to 99 motion profiles in onboard Flash memory. You can execute absolute, incremental, or continuous jog moves from ladder logic. The module provides dedicated inputs for home, limit, and emergency stop switches. An integrated quadrature encoder input supports position verification for closed-loop applications. Consequently, engineers achieve precise indexing for rotary tables and linear slides.

Installation and System Compatibility

You must install this motor indexer module into any Series 90-30 PLC rack slot. The GE HE693STP101C communicates with the CPU through the backplane automatically. A removable terminal block connects to the stepper driver and limit switches. The module also requires an external 24V DC supply for input circuits. Always verify step frequency limits before commissioning the motion system.

Maintenance and Operational Benefits

Because the GE HE693STP101C stores all motion profiles in non-volatile Flash memory, it needs no battery backup. Technicians can replace the module without reprogramming any position data. The module retains all acceleration and speed parameters indefinitely after configuration. Consequently, maintenance becomes simple and reliable for automated indexing applications.
