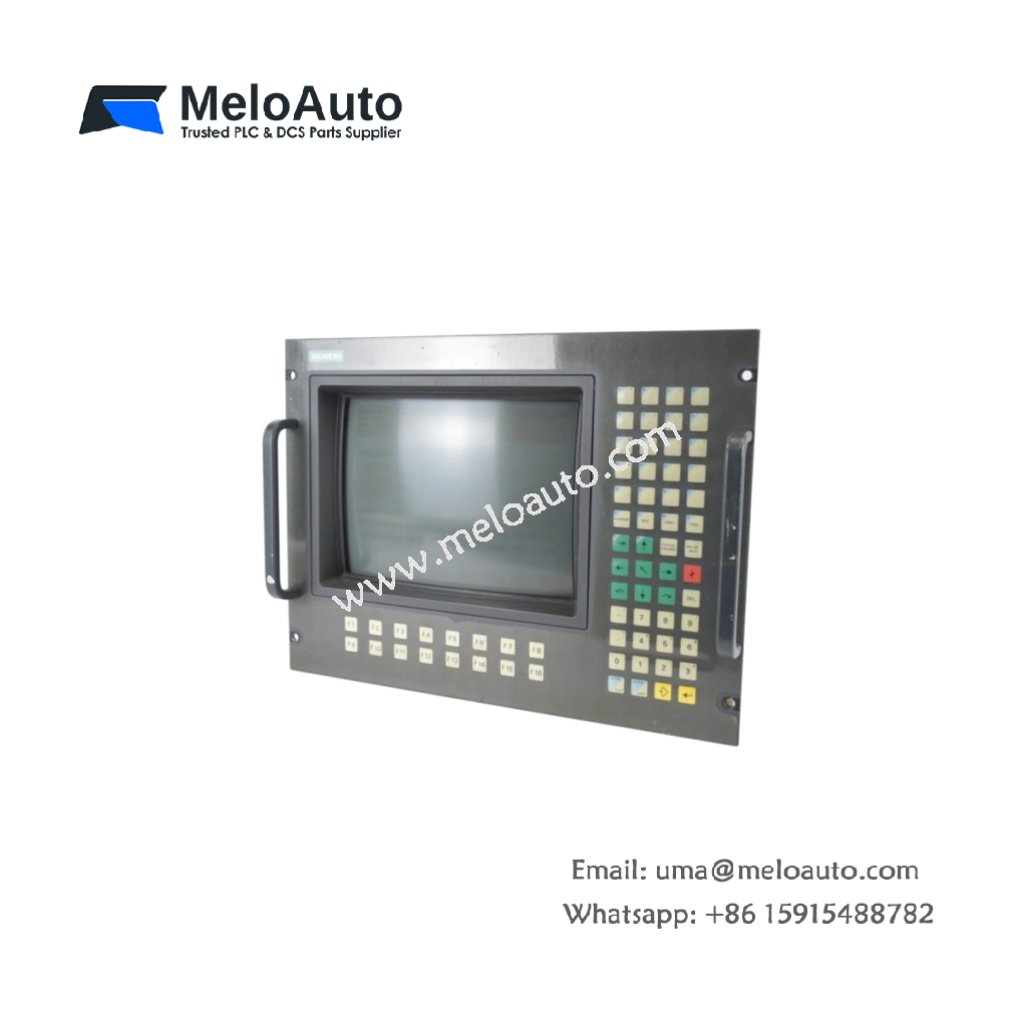

The 6AV5040-1BF12-0BA0 operates as a high-performance monitor panel for Siemens industrial automation systems. This unit provides advanced visualization capabilities for complex process monitoring and control. It displays high-resolution graphics, trends, and alarm logs with exceptional clarity. The panel accepts operator commands through an intuitive touchscreen interface. Consequently, it enables comprehensive human-machine interaction for demanding applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Category | Monitor Panel |
| Part Number | 6AV5040-1BF12-0BA0 |
| Display Type | TFT LCD (color) |
| Display Size | 38.1 cm (15 inches) |
| Display Resolution | 1024 x 768 pixels (XGA) |
| Touchscreen | Resistive (analog) |
| Communication | Ethernet, RS-232, RS-485, PROFIBUS |
| Memory | 32 MB (application storage) |
| Power Supply | 24 VDC |
| Current Consumption | 1.2 A (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 38.0 cm x 30.0 cm x 8.0 cm |
| Weight | 4.5 kg |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel-mount or VESA |
Display and Interaction Capabilities
The 6AV5040-1BF12-0BA0 features a large XGA display for detailed process visualization. Users can create complex graphical screens with multiple objects and animations. The resistive touchscreen supports gloved-hand operation for industrial environments. The unit stores extensive application data in its 32 MB memory. Additionally, the panel includes a USB port for data transfer and backup. The module also provides a real-time clock with battery backup.
Communication and Integration
This monitor panel supports Ethernet, PROFIBUS, and serial communication protocols. It integrates seamlessly with Siemens PLCs, drives, and other automation devices. Users can configure the panel through the WinCC software environment. The 6AV5040-1BF12-0BA0 also supports remote access and web-based monitoring. Its robust IP65 front rating ensures reliable operation in harsh industrial conditions.
