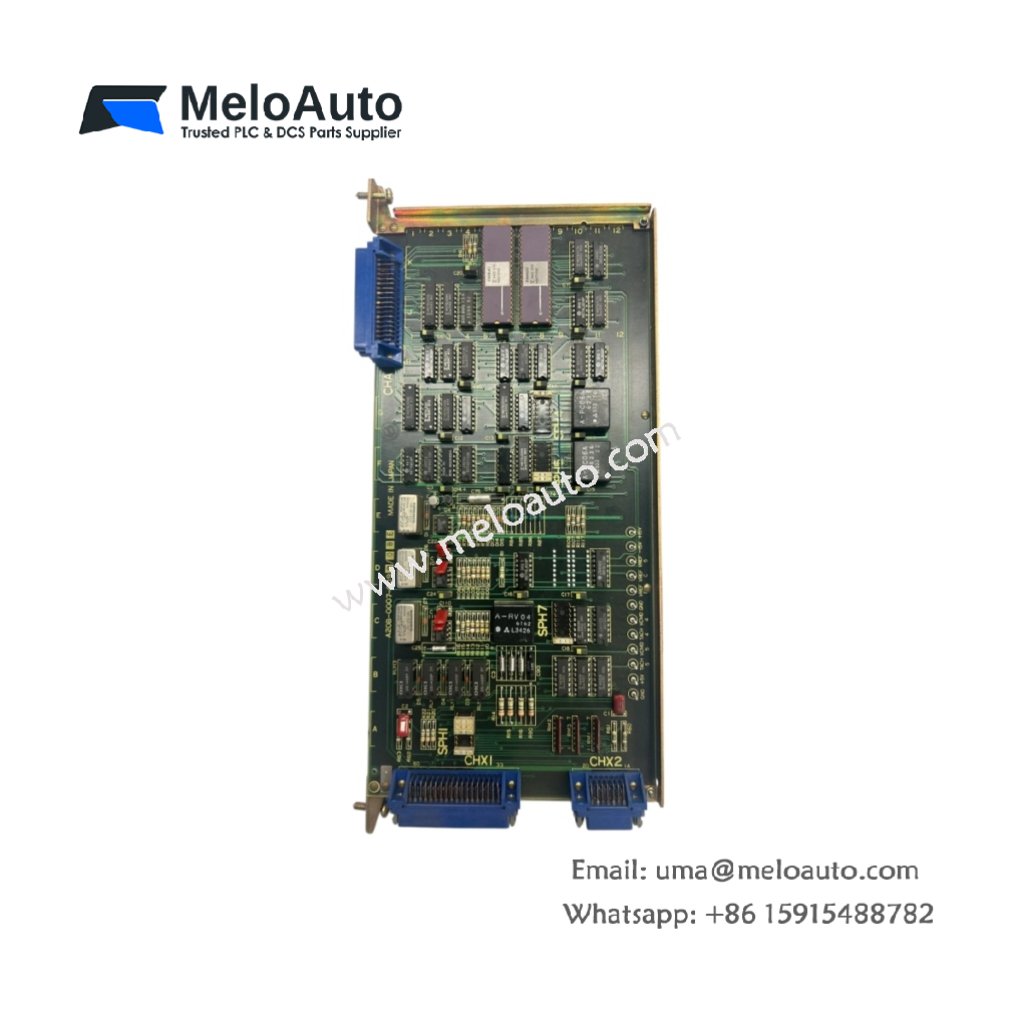

GE A20B-0007-0090/08E Circuit Board

The A20B-0007-0090/08E provides control functions for GE Fanuc CNC systems. This circuit board handles servo control and I/O management in machine tools. You can rely on it for precision machining and automation tasks.

Key Technical Parameters

The table below lists all essential technical specifications for this circuit board.

Specification	Details
Part Number	A20B-0007-0090/08E
Product Type	Circuit Board (CNC Control)
Compatibility	GE Fanuc Series CNC systems
Processor	32-bit RISC microcontroller
Memory	512 KB RAM, 1 MB flash
Number of Axes	3 controlled axes
Feedback Interface	Incremental encoder (differential)
Digital Inputs	16 channels (24V DC)
Digital Outputs	8 channels (transistor, 0.5A)
Input Voltage	5V DC and 24V DC
Dimensions (W x H x D)	280 mm x 220 mm x 35 mm
Weight	Approx. 0.82 kg
Connector Type	Multiple pin headers and edge connectors
Number of Components	20 ICs, 55 capacitors, 75 resistors
PCB Material	FR4 with conformal coating
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This circuit board weighs approximately 0.82 kg for secure rack mounting. Its dimensions measure 280 mm x 220 mm x 35 mm for CNC controller cabinets. First, align the A20B-0007-0090/08E with the backplane guides. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.

Processing and Memory Specifications

The A20B-0007-0090/08E integrates a 32-bit RISC microcontroller for high-speed processing. Program memory provides 1 MB of flash for non-volatile firmware storage. Data memory includes 512 KB of RAM for real-time variables. The board controls 3 axes for standard CNC machine configurations. Incremental encoder feedback with differential signaling ensures precise position tracking.

I/O and Component Layout

This circuit board includes 16 digital inputs for machine status signals. Eight transistor outputs drive small actuators and indicator lamps. The board contains 20 integrated circuits for logic, communication, and servo control. Fifty-five capacitors provide power filtering and noise suppression. Seventy-five resistors establish proper signal levels and termination. The A20B-0007-0090/08E requires both 5V DC and 24V DC power supplies. Use this board for milling, turning, or grinding CNC applications.
