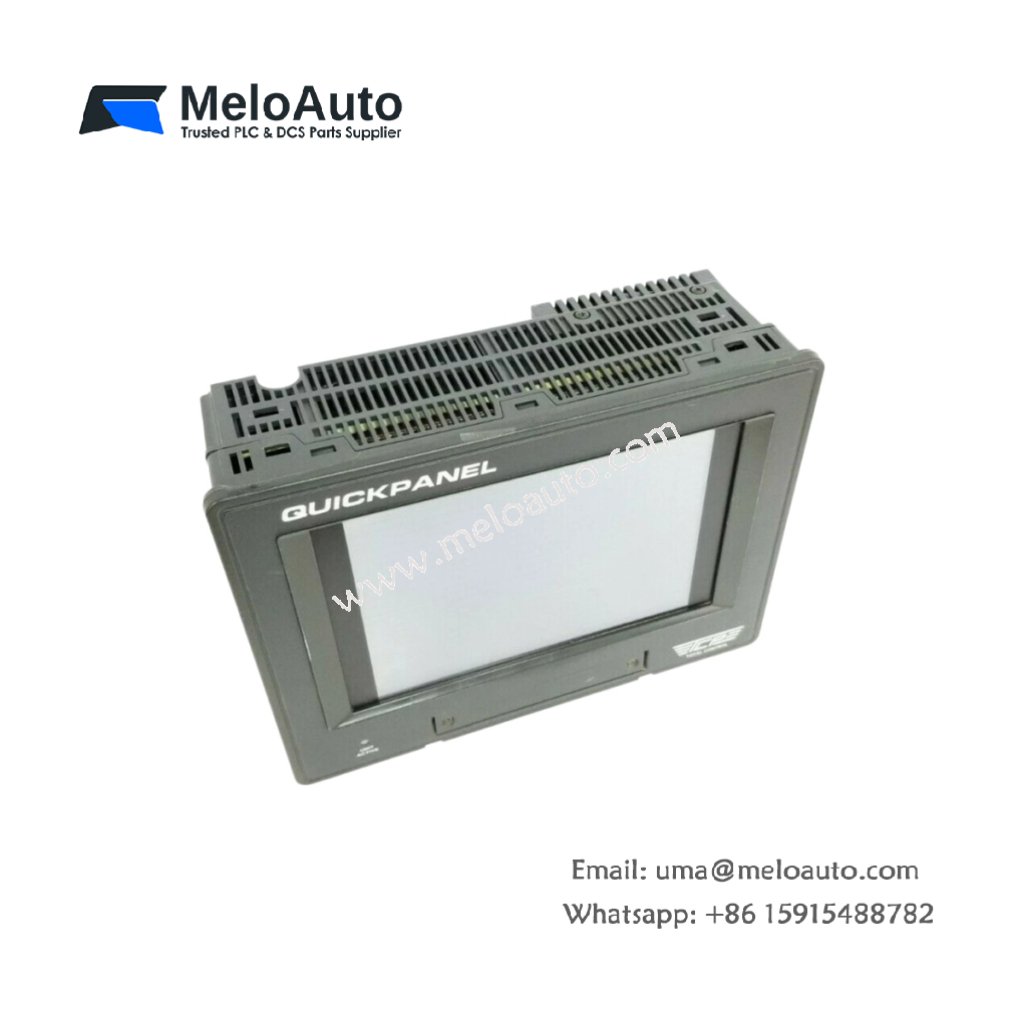

GE QPI-11100-S2P QuickPanel Monitor

The QPI-11100-S2P provides visual operator interface for GE QuickPanel HMI systems. This monitor displays machine status, alarms, and process data in color. You can rely on it for local control and monitoring in industrial environments.

Key Technical Parameters

The table below lists all essential technical specifications for this QuickPanel monitor.

Specification	Details
Part Number	QPI-11100-S2P
Product Type	QuickPanel HMI Monitor
Display Type	STN color LCD
Display Size	10.4 inches diagonal
Resolution	640 x 480 pixels (VGA)
Color Depth	256 colors
Touch Technology	Resistive analog
Backlight Type	CCFL (cold cathode)
Backlight Life	50,000 hours typical
Dimensions (W x H x D)	310 mm x 240 mm x 55 mm
Weight	Approx. 2.20 kg
Communication Ports	1 x RS-232, 1 x RS-422
Power Supply	24V DC
Power Consumption	25 W maximum
Protection Rating	IP65 (front)
Operating Temperature	0°C to 50°C

Physical Characteristics and Installation

This QuickPanel monitor weighs approximately 2.20 kg for secure panel mounting. Its dimensions measure 310 mm x 240 mm x 55 mm for standard cutout installation. First, cut a rectangular hole according to the supplied template. Then, insert the QPI-11100-S2P from the front of the door. Finally, tighten the mounting clamps from the rear side. The front panel carries an IP65 rating against dust and water jets.

Display and Touch Interface

The QPI-11100-S2P features a 10.4-inch STN color LCD for clear process visualization. The VGA resolution of 640 x 480 pixels displays detailed graphics and trends. 256 colors provide adequate distinction for alarms and status indicators. A resistive touch overlay registers user inputs accurately. You can operate this monitor even while wearing industrial gloves.

Communication and Power Requirements

This QuickPanel monitor includes two communication ports for PLC connectivity. An RS-232 port connects to legacy controllers directly. An RS-422 port provides longer cable runs for remote installations. The QPI-11100-S2P requires a 24V DC power supply for operation. The unit consumes 25 W maximum under full brightness. The CCFL backlight lasts 50,000 hours for years of reliable service.
