Technical Overview

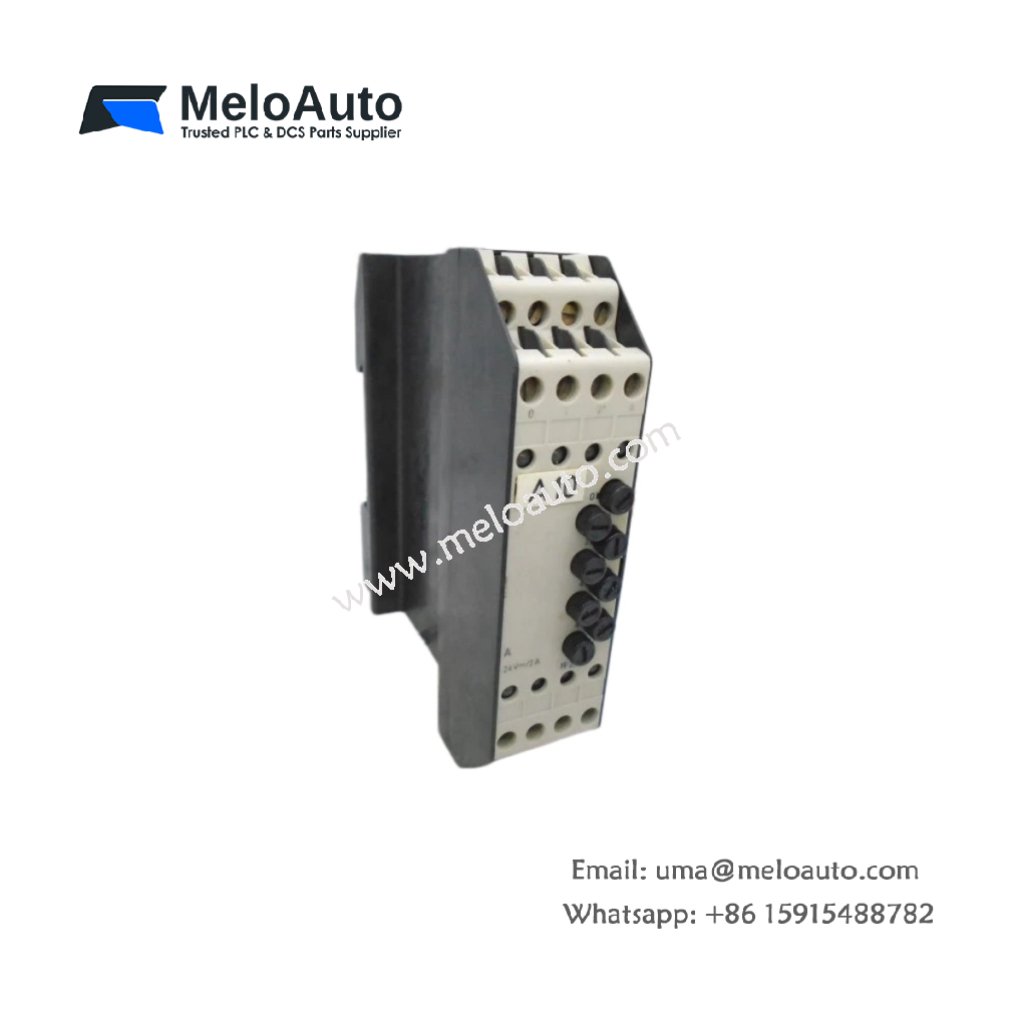

The Siemens 6ES5410-7AA11 digital output module belongs to the SIMATIC S5 programmable logic controller family. This module delivers 24 V DC control signals from the PLC to field actuators, solenoid valves, and indicator lamps. It provides 16 isolated output channels within a single slot, and optical isolation separates the field outputs from the system backplane. Furthermore, this module drives loads with a rated output current of 0.5 A per channel, thereby ensuring reliable actuation of field devices.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6ES5410-7AA11 |
| Product Type | Digital Output Module |
| Compatible System | SIMATIC S5 |
| Number of Outputs | 16 isolated digital outputs |
| Rated Output Voltage | 24 V DC |
| Output Current per Channel | 0.5 A (continuous) |
| Inrush Current Capability | 2.0 A for 10 ms |
| Output Voltage Drop | ≤ 1.0 V at rated load |
| Leakage Current (OFF) | ≤ 0.5 mA |
| Response Time (ON/OFF) | ≤ 1.0 ms |
| Isolation | 500 V AC between field outputs and system |
| Indicators | LED status display per channel |
| Power Supply | 5 V DC from S5 backplane |
| Current Consumption (5V) | 120 mA typical |
| Dimensions | 1 slot width (25 mm) × 233 mm × 150 mm |
| Weight | Approximately 0.8 kg |
| Operating Temperature | 0°C to 60°C |
Performance and Application Benefits
The 6ES5410-7AA11 provides 16 digital output channels for controlling field actuators in S5 automation systems. Moreover, the module’s optical isolation safeguards the CPU from voltage transients and short circuits on field wiring. In addition, the built-in overcurrent protection prevents damage from accidental overloads or wiring faults. Consequently, the fast 1.0 ms response time enables precise timing for valve sequencing and high-speed control loops. Therefore, this module is well-suited for applications requiring dependable output switching, including conveyor systems, packaging lines, and motor control panels.
