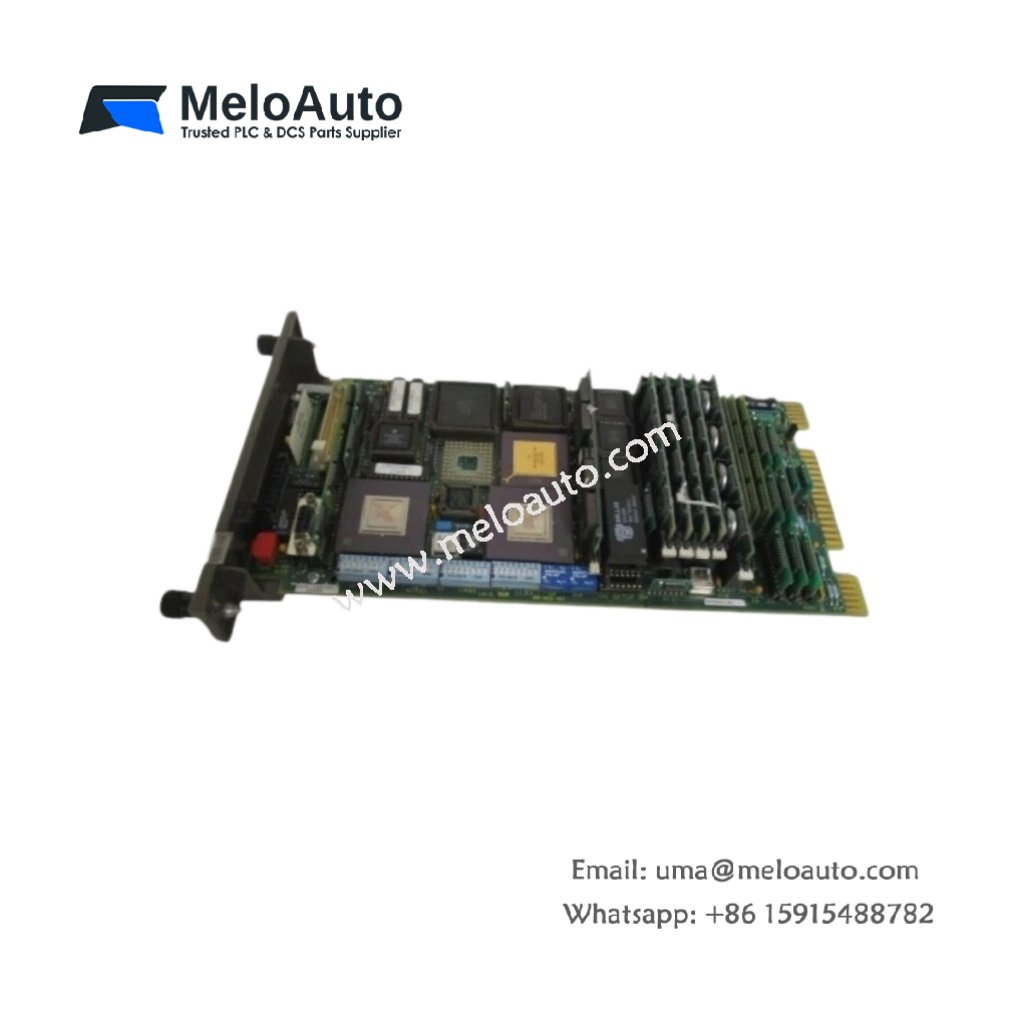

ABB Bailey IMMFP03 Processor Module

Physical Dimensions and Mechanical Layout

The ABB Bailey IMMFP03 serves as the main processing unit for Bailey distributed control systems. This module measures 160mm in height, 80mm in width, and 110mm in depth. You can mount this unit directly onto a 35mm DIN rail inside a protected enclosure. The module weighs 0.65 kilograms , so one person can handle the installation comfortably.

Internal Architecture and Component Count

The ABB Bailey IMMFP03 contains 248 individual components on its eight-layer PCB. A 32-bit RISC processor runs at 40 MHz for fast control loop execution. Sixteen static RAM chips provide 2 MB of total program memory. Additionally, eight flash memory devices store 1 MB of firmware and configuration data.

Energy Storage and Data Retention

This processor module integrates ten electrolytic capacitors with a total storage of 52.8 joules. This energy reserve maintains RAM contents for up to 120 seconds after power loss. Consequently, critical process data survives brief power interruptions without corruption. The storage also supports orderly shutdown routines during extended outages.

Parameter	Value	Unit
Dimensions (H x W x D)	160 x 80 x 110	mm
Weight	0.65	kg
PCB layer count	8	layers
Total components	248	pieces
Processor type	32-bit RISC	–
Processor speed	40	MHz
Static RAM total	2	MB
Flash memory total	1	MB
Electrolytic capacitors	10	units
Total energy storage	52.8	J
RAM retention time	120	seconds
Operating voltage	5	V DC
Backplane current draw	850	mA
Power dissipation	4.25	W
LED indicators	6	units

Interface and Connectivity Features

The ABB Bailey IMMFP03 provides two RS-232 serial ports for local programming access. A single RS-485 port handles communication with remote I/O stations. The module also includes one Ethernet 10Base-T port for network integration. A 20-pin diagnostic header gives you direct access to internal processor buses.

Processing Capabilities and Execution Cycle

This processor executes up to 10,000 logic blocks per 100ms scan cycle. The module handles analog loop control with 0.1% accuracy across 16 loops simultaneously. You can store 256 control strategies in the onboard flash memory. Furthermore, the unit supports peer-to-peer communication with up to 32 other processors on the same network.

Diagnostic and Status Monitoring

Six LED indicators on the front panel provide real-time operational status. A green POWER LED confirms proper 5V supply to the module. The amber RUN LED blinks at the current scan rate frequency. A red FAULT LED alerts you to processor or memory errors immediately. Moreover, the diagnostic port streams real-time variables without interrupting program execution.

Environmental Specifications and Compliance

The ABB Bailey IMMFP03 operates reliably from 0°C to 60°C ambient temperature. You can store the module between -40°C and 85°C without any damage. Non-condensing humidity tolerance spans 5% to 95% for diverse industrial settings. This module meets IEC 61131-2 standards for programmable controller equipment.
