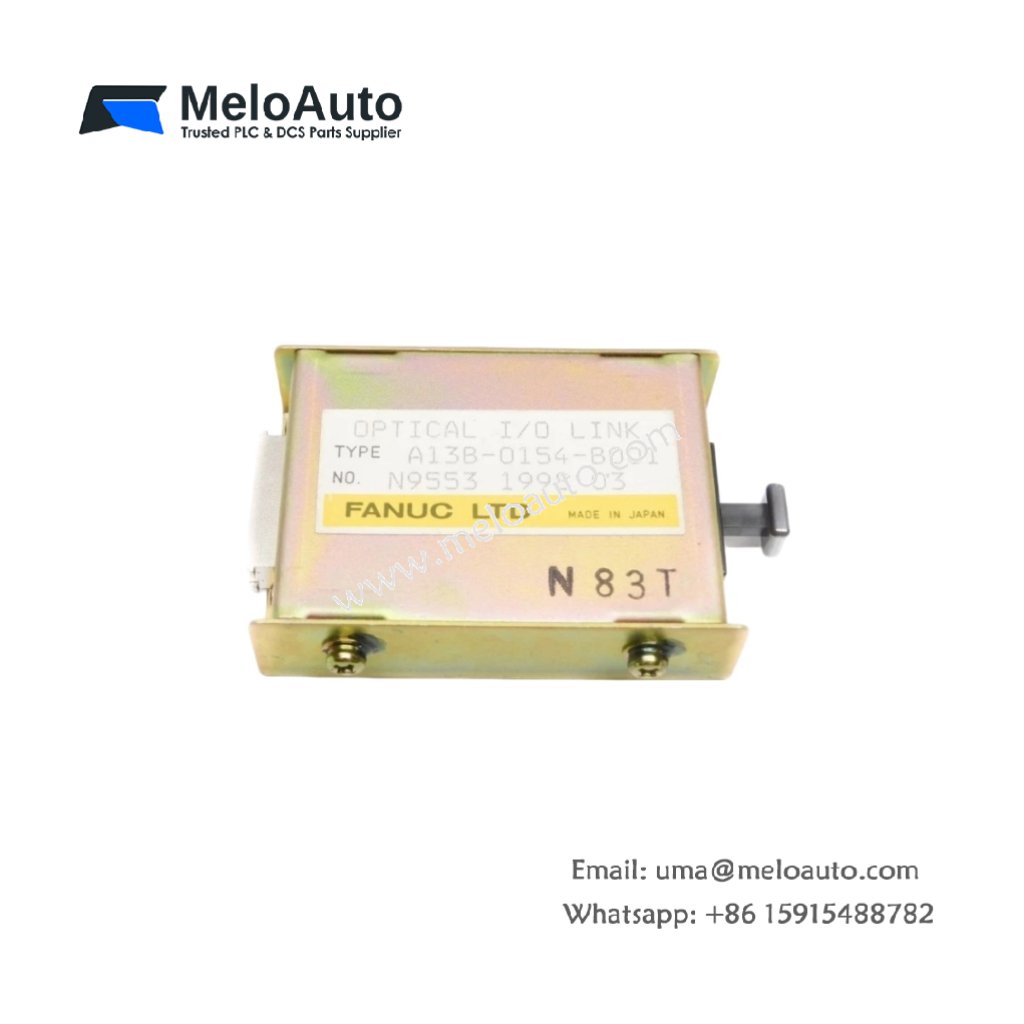

GE A13B-0154-B001 Optical Adapter

The A13B-0154-B001 converts electrical I/O signals to fiber optic communication for GE Fanuc CNC systems. This adapter enables noise-immune data transfer over long distances. You can rely on it for reliable remote I/O connectivity in harsh industrial environments.

Key Technical Parameters

The table below lists all essential technical specifications for this I/O Link i optical adapter.

Specification	Details
Part Number	A13B-0154-B001
Product Type	I/O Link i Optical Adapter
Compatibility	GE Fanuc Series CNC systems
Communication Protocol	I/O Link i (proprietary)
Optical Wavelength	660 nm (red light)
Fiber Type	Plastic optical fiber (POF)
Maximum Cable Length	20 meters (POF)
Data Transfer Rate	1.5 Mbps
Electrical Interface	20-pin ribbon cable
Optical Connector	Snap-in (JIS F05)
Dimensions (W x H x D)	90 mm x 60 mm x 25 mm
Weight	Approx. 0.12 kg
Power Supply	5V DC from CNC backplane
Current Consumption	100 mA
Operating Temperature	0°C to 50°C

Physical Characteristics and Installation

This optical adapter weighs approximately 0.12 kg for compact mounting. Its dimensions measure 90 mm x 60 mm x 25 mm for DIN rail or panel installation. First, mount the A13B-0154-B001 near your CNC controller. Then, connect the electrical ribbon cable to the I/O Link port. Finally, insert the plastic optical fiber into the snap-in connector. The red LED indicates active optical communication.

Optical Communication Specifications

The A13B-0154-B001 uses plastic optical fiber (POF) for noise-immune signal transmission. The optical wavelength operates at 660 nm (visible red light). This adapter supports cable lengths up to 20 meters between devices. The data transfer rate reaches 1.5 Mbps for responsive I/O updates. Fiber optic transmission eliminates electrical interference from motors and welders.

Compatibility and Power Requirements

This optical adapter works with GE Fanuc I/O Link i compatible CNC systems. The A13B-0154-B001 connects to remote I/O units, operator panels, and other peripherals. The device draws 100 mA from the 5V DC CNC backplane supply. Use this adapter for distributed I/O in electrically noisy environments. The snap-in optical connector provides secure and vibration-resistant termination.
