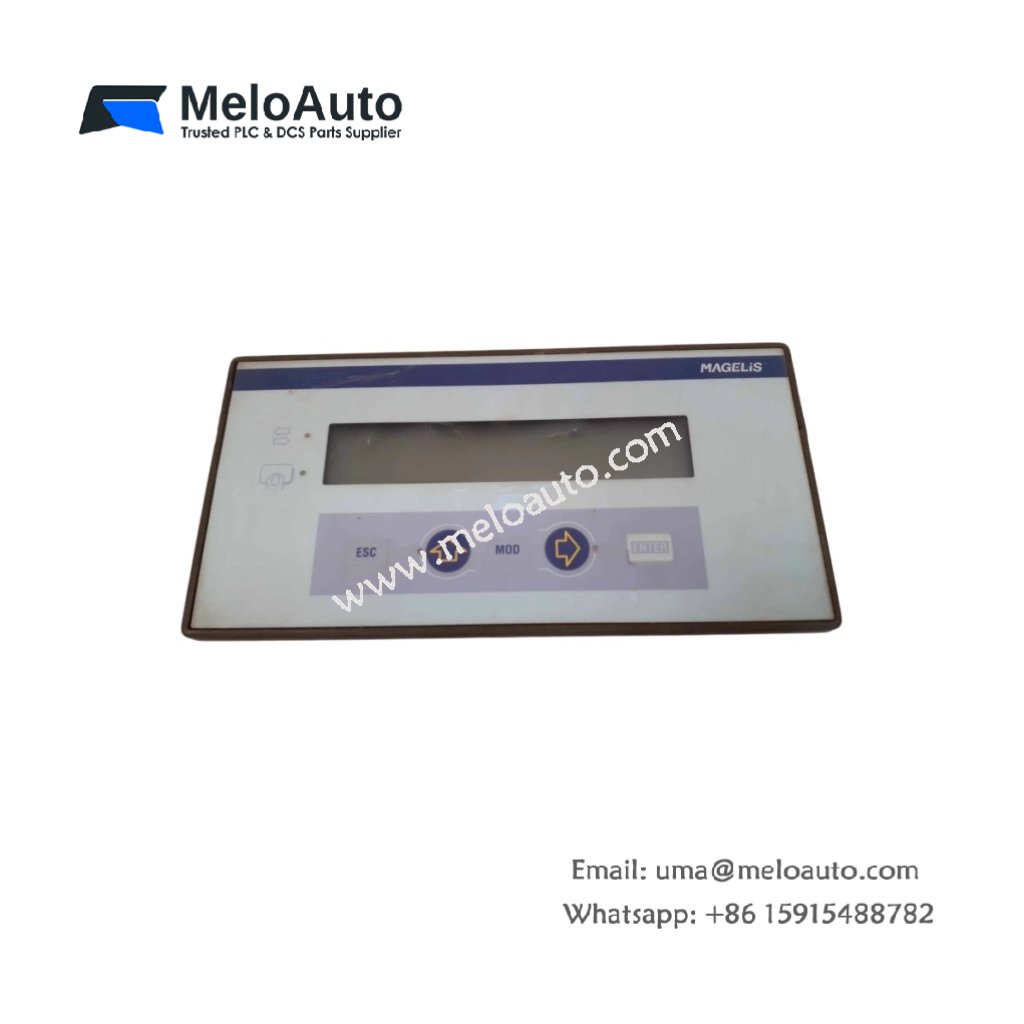

Schneider XBTH012010 Operator Interface | 20 Keys

User Control for Industrial Automation Systems

The Schneider XBTH012010 provides a compact operator interface for machinery control. This unit allows operators to input commands and monitor system status. It suits conveyor lines, packaging machines, and material handling equipment.

Technical Specifications

Parameter	Specification
Model	XBTH012010
Category	Operator Interface
Height	72 mm
Width	144 mm
Depth	47 mm
Weight	0.210 kg
Number of Keys	20 (arranged 2 x 10)
Key Type	Tactile membrane with embossed surface
Key Material	Polyester (UV and chemical resistant)
Key Life	1 million actuations minimum
Operating Force	3.5 N ±0.5 N per key
Key Travel	1.2 mm
Contact Configuration	Normally open (momentary)
Contact Material	Silver-plated nickel
Switching Voltage	24 V DC max
Switching Current	10 mA to 50 mA
Contact Resistance	<10 Ω initial
Insulation Resistance	>100 MΩ at 500 V DC
Dielectric Strength	500 V RMS for 1 minute
Connector Type	2 x 14-pin ribbon cables (200mm length)
Backlighting	None (non-illuminated)
Protection Rating	IP65 (front panel)
Internal Components	20 membrane contacts, 2 connector cables, 1 adhesive gasket
Energy Storage	None (no battery or capacitor)

Keypad Architecture and Layout Design

The XBTH012010 features twenty tactile membrane keys in a two-column layout. Each key provides a distinct embossed surface for finger positioning. The operator interface delivers 3.5 newtons of operating force with 1.2mm travel. You feel a clear tactile click upon each key actuation. The Schneider XBTH012010 uses silver-plated nickel contacts for reliable switching. Each normally open contact closes momentarily while you press the key.

Durability and Environmental Protection

This operator interface withstands one million actuations under normal industrial use. The polyester membrane resists UV exposure, oils, and common industrial chemicals. The XBTH012010 achieves IP65 protection rating from the front panel. This rating keeps dust and water jets away from internal electronics. A silicone rubber gasket seals the interface to the mounting panel. The rear electronics remain protected in humid or washdown environments.

Electrical Characteristics and Matrix Wiring

The Schneider XBTH012010 switches 24 V DC signals at 10 to 50 milliamperes. Initial contact resistance measures below 10 ohms for low-voltage applications. Insulation resistance exceeds 100 megohms at 500 V DC. Two 200mm ribbon cables with 14-pin connectors attach to the PCB. The XBTH012010 uses a common row and column matrix arrangement. This matrix reduces the required number of input wires from 20 to 9.

Physical Dimensions and Panel Mounting

The Schneider XBTH012010 weighs 0.210 kilograms for straightforward installation. Its height measures 72mm, width 144mm, and depth 47mm. Cut a 68mm x 140mm rectangular hole in the control panel. Mount the interface using four M3 screws through the corner holes. The unit operates reliably from -20°C to +70°C ambient temperature. Do not exceed 85% relative humidity (non-condensing) for safe operation.

Energy Storage and Passive Operation

The XBTH012010 stores no electrical energy internally. It contains zero batteries or capacitors of any kind. Hence, this operator interface requires no periodic maintenance whatsoever. You will never replace batteries or perform discharge procedures. The Schneider XBTH012010 consumes no power when idle. It only draws current during the brief moment of key actuation.
