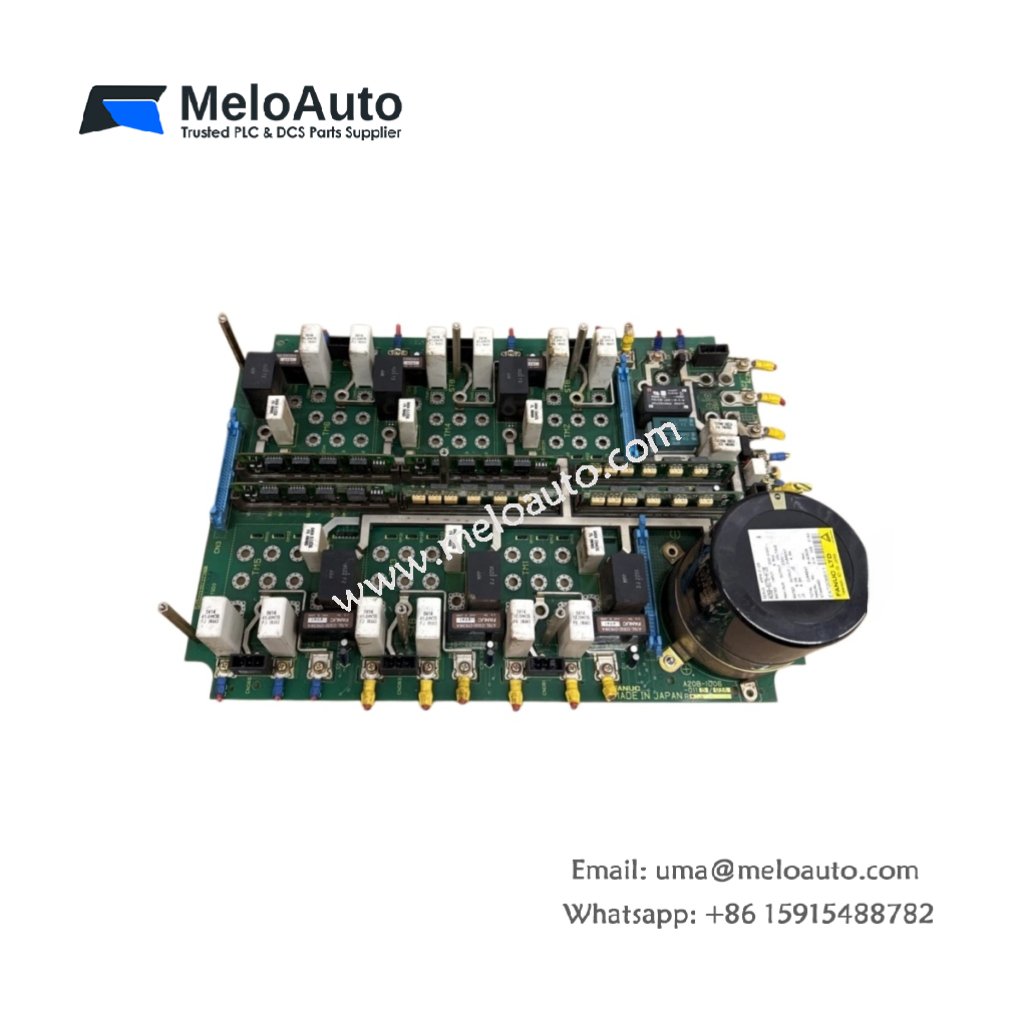

GE A06B-6076-H105 Servo Amplifier

The A06B-6076-H105 functions as a servo amplifier for GE Fanuc CNC machine tools. This unit drives AC servo motors with precise current and velocity control. It receives command signals from the CNC controller and amplifies them for motor operation. Therefore, this amplifier enables accurate axis positioning for machining applications.

Technical Specifications

We engineered this servo amplifier for demanding machine tool environments. Its rugged chassis provides excellent heat dissipation for continuous operation. Moreover, the unit includes built-in overcurrent and overvoltage protection circuits.

Parameter	Specification
Dimensions (H x W x D)	11.8 x 5.9 x 7.5 inches (300 x 150 x 190 mm)
Weight	4.5 kg (9.9 lbs)
Input Voltage (Main)	200-230V AC, 3-phase, 50/60 Hz
Input Voltage (Control)	200-230V AC, single-phase
Rated Output Current	5.6 A continuous
Peak Output Current	16.8 A for 1 second
Motor Type	AC servo (α or β series)
Control Method	IGBT PWM with sinusoidal commutation
Feedback Interface	2000 P/R encoder or serial pulse
Protection Functions	Overcurrent, overvoltage, overtemperature
Cooling Method	Forced air (internal fan)
Operating Temperature	0°C to 45°C (32°F to 113°F)

Power Circuit Design

The A06B-6076-H105 uses IGBT technology for efficient motor control. A three-phase bridge rectifier converts AC input to DC bus voltage. Large electrolytic capacitors smooth the DC bus for stable motor operation. Consequently, the amplifier delivers clean current waveforms with minimal torque ripple.

Control Interface and Command Processing

This servo amplifier receives analog velocity commands from the CNC unit. The control board processes these signals and generates IGBT gating pulses. An encoder feedback port provides position verification for closed-loop control. Therefore, the amplifier maintains accurate motor speed and position under varying loads.

Protection Features and Fault Handling

The A06B-6076-H105 includes multiple protection circuits for reliable operation. An overcurrent detector shuts down the amplifier within microseconds of a fault. The unit also monitors DC bus voltage and internal temperature continuously. A fault relay contact provides external status indication for the CNC system.

Energy Storage Components

This servo amplifier uses large electrolytic capacitors for DC bus energy storage. These capacitors maintain bus voltage during brief power interruptions. The unit contains no battery for parameter retention or memory backup. All configuration settings reside in the CNC controller, not on this amplifier.

Cooling and Thermal Management

The A06B-6076-H105 features an internal fan for forced air cooling. This fan draws air through the heatsink fins to remove heat. Maintain 100 mm of clearance above and below the unit for airflow. Consequently, the amplifier operates reliably at full rated current in warm environments.

Installation and Wiring Guidelines

Mount the A06B-6076-H105 vertically on a solid metal panel surface. Connect three-phase AC power to the L1, L2, and L3 terminals. Wire the motor cables to the U, V, and W output terminals securely. Connect the encoder cable to the feedback port on the front panel. Always wait five minutes after power removal before servicing the unit. Discharge the DC bus capacitors using a bleeder resistor before touching internal components.
