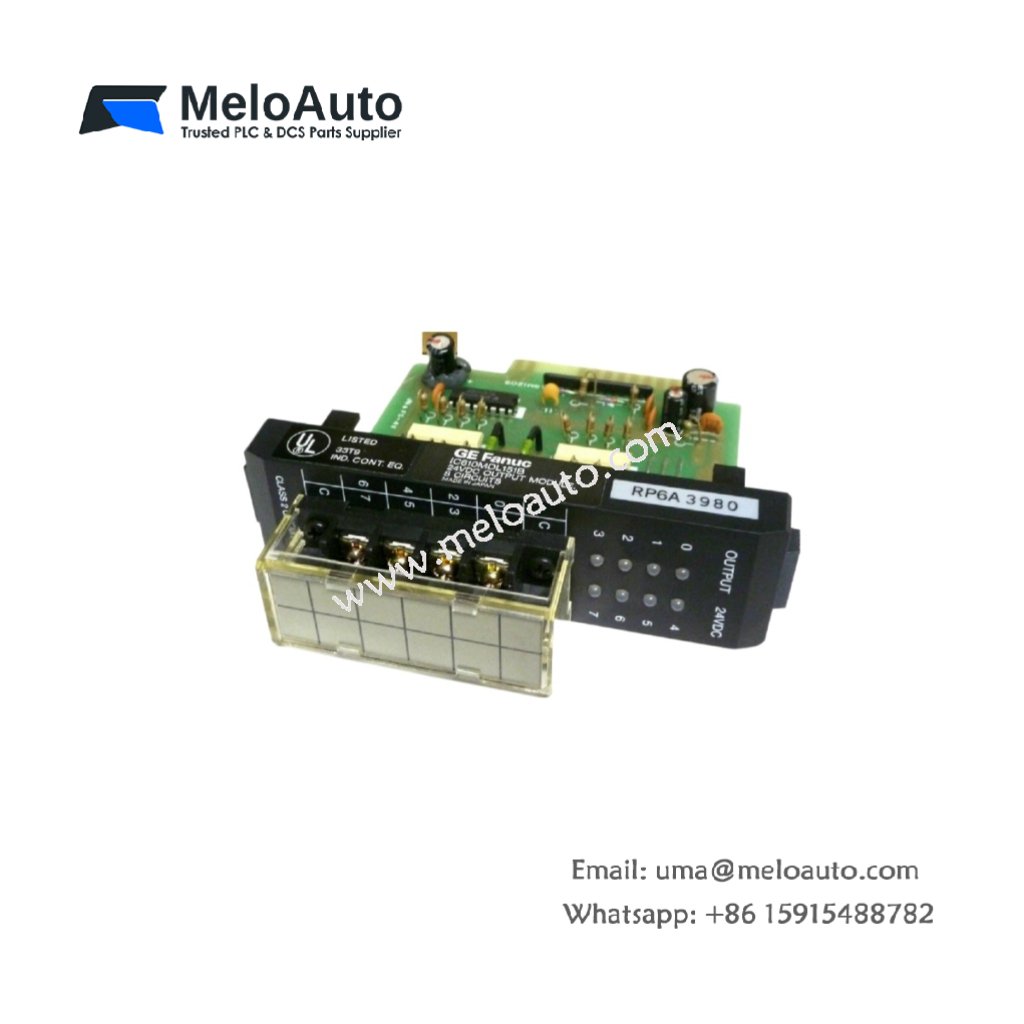

GE IC610MDL151B Output Module

The IC610MDL151B functions as a discrete output module for the GE Series One PLC system. This unit drives eight independent field devices from a single rack slot. It controls relays, solenoids, and indicator lamps with AC switching capability. Therefore, this module provides reliable machine control for legacy automation applications.

Technical Specifications

We engineered this output module for demanding industrial switching environments. Its compact single-slot design fits directly into a Series One rack. Moreover, the module includes built-in fuse protection for each output channel.

Parameter	Specification
Dimensions (H x W x D)	5.0 x 1.0 x 4.5 inches (127 x 25 x 114 mm)
Weight	0.27 kg (0.6 lbs)
Output Channels	8 discrete outputs
Output Type	Triac (AC switching)
Output Voltage Range	85-264V AC, 47-63 Hz
Output Current	2.0 A per channel, 8 A per module
Inrush Current	10 A for one cycle maximum
Off-State Leakage	2 mA maximum at rated voltage
Switching Speed	1/2 cycle typical (8-10 ms)
Protection	Fuse per channel (3 A fast-acting)
Internal Power Draw	200 mA from 5V DC backplane
Operating Temperature	0°C to 60°C (32°F to 140°F)

Output Circuit Design

The IC610MDL151B uses triac technology for each of its eight outputs. Each channel switches AC loads directly without external relays. Individual LED indicators show the status of every output point immediately. Consequently, you can troubleshoot field wiring without any external test equipment.

Protection Features and Fusing

This output module includes a fast-acting fuse for each output channel. Each fuse disconnects the output upon overcurrent or short circuit conditions. The module provides fuse failure indication through a dedicated LED per channel. Therefore, you can identify which output requires maintenance quickly and accurately.

Switching Performance and Load Types

The IC610MDL151B turns outputs on within 1/2 cycle of the AC waveform. This typical switching time equals 8 to 10 milliseconds at 60 Hz. The module handles resistive and inductive loads without additional suppression. High inrush loads like solenoids operate reliably with the triac design.

Power Requirements and Energy Storage

This output module draws 200 mA from the 5V DC backplane supply only. It does not require any external AC power for internal logic operation. The module contains no battery or capacitor energy storage components. All output states reset to off during PLC power loss for safe machine operation.

Isolation and Voltage Rating

The IC610MDL151B provides optical isolation between logic and field circuits. This isolation withstands 1500V AC between backplane and outputs. The module operates with any AC voltage from 85 to 264 volts. Hence, the same module works on 110V or 220V systems without changes.

Installation and Wiring

Mount the IC610MDL151B into any Series One rack slot securely. Connect your field devices to the removable terminal block using 18 AWG wire. Use a 2.5 mm flat-blade screwdriver for all terminal screw connections. Replace any blown fuse with an identical 3 A fast-acting type only. Always turn off system power before inserting or removing this module.
