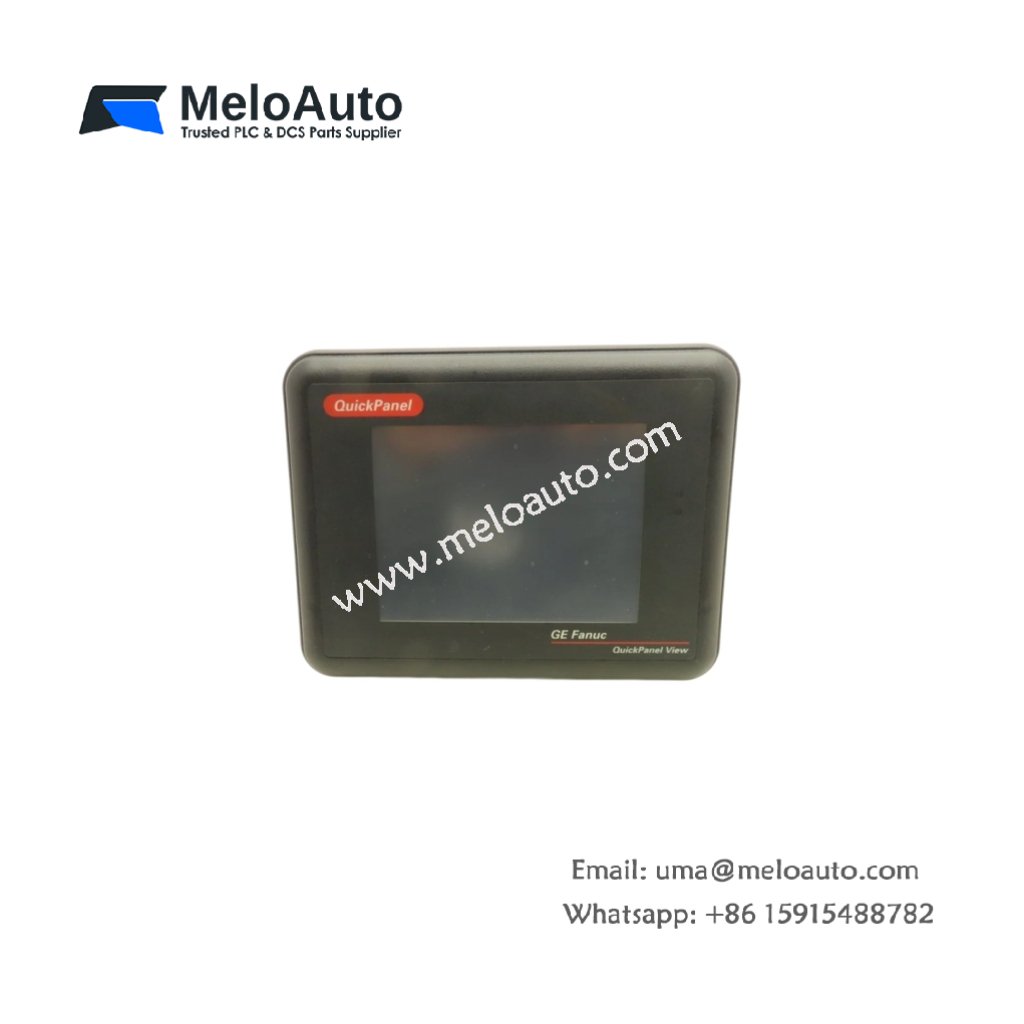

GE IC754VSI06STD Operator Interface

The IC754VSI06STD operates as a compact operator interface for the QuickPanel View series. This unit displays machine status and process data on its color touch screen. It accepts operator commands through a responsive analog resistive touch sensor. Therefore, this HMI enables intuitive local control for industrial automation systems.

Technical Specifications

We engineered this operator interface for space-constrained control panels. Its slim bezel design fits into standard cutouts with minimal clearance. Moreover, the unit includes multiple communication ports for PLC connectivity.

Parameter	Specification
Dimensions (W x H x D)	8.5 x 6.9 x 1.6 inches (216 x 175 x 41 mm)
Panel Cutout (W x H)	7.7 x 6.0 inches (196 x 152 mm)
Weight	0.68 kg (1.5 lbs)
Display Size	6.0 inches diagonal (152 mm)
Display Type	TFT LCD with LED backlight
Resolution	640 x 480 pixels (VGA)
Color Depth	256 colors (8-bit)
Touch Technology	Analog resistive
Touch Activation Force	50 grams typical
Communication Ports	1x RS-232, 1x RS-485, 1x Ethernet
USB Ports	1x USB 1.1 (Type A)
Input Voltage	24V DC nominal (18-32V DC)
Power Consumption	12 W typical
Operating Temperature	0°C to 50°C (32°F to 122°F)

Display Characteristics and Visibility

The IC754VSI06STD features a 6-inch TFT LCD with wide viewing angles. LED backlighting provides 350 cd/m² brightness for clear visibility. The display resists glare and remains readable under direct shop lighting. Consequently, operators can monitor process values without straining their eyes.

Touch Sensor Design and Responsiveness

This operator interface uses analog resistive touch technology for reliable operation. The sensor responds to gloved fingers, stylus pens, or any firm object. A hard-coated polyester surface resists scratches and chemical exposure. Therefore, this HMI works well in harsh industrial environments with operator gloves.

Communication Capabilities

The IC754VSI06STD features an Ethernet port for high-speed network connectivity. RS-232 and RS-485 ports support legacy PLC protocols and Modbus networks. The USB port allows application uploads, downloads, and data logging to flash drives. Consequently, this interface connects to virtually any industrial controller on the market.

Memory and Data Storage

This operator interface includes 32 MB of non-volatile flash memory for application storage. It provides 64 MB of RAM for runtime operation and screen caching. The unit retains all screen data during complete power loss automatically. No battery backup is necessary for application or configuration retention.

Energy Storage and Power Interruption

The IC754VSI06STD contains internal capacitors for brief power ride-through. These capacitors maintain operation for up to 50 milliseconds during voltage dips. The unit performs an orderly shutdown during extended power interruptions. No lithium battery exists on this device for real-time clock or data retention.

Installation and Mounting

Mount the IC754VSI06STD into a standard panel cutout using the included clips. Apply the supplied gasket to achieve NEMA 4X water resistance at the front. Connect 24V DC power to the rear terminal block with 18 AWG wire. Download your application via Ethernet or USB before placing the unit into service. Calibrate the touch sensor during initial commissioning for optimal accuracy.
