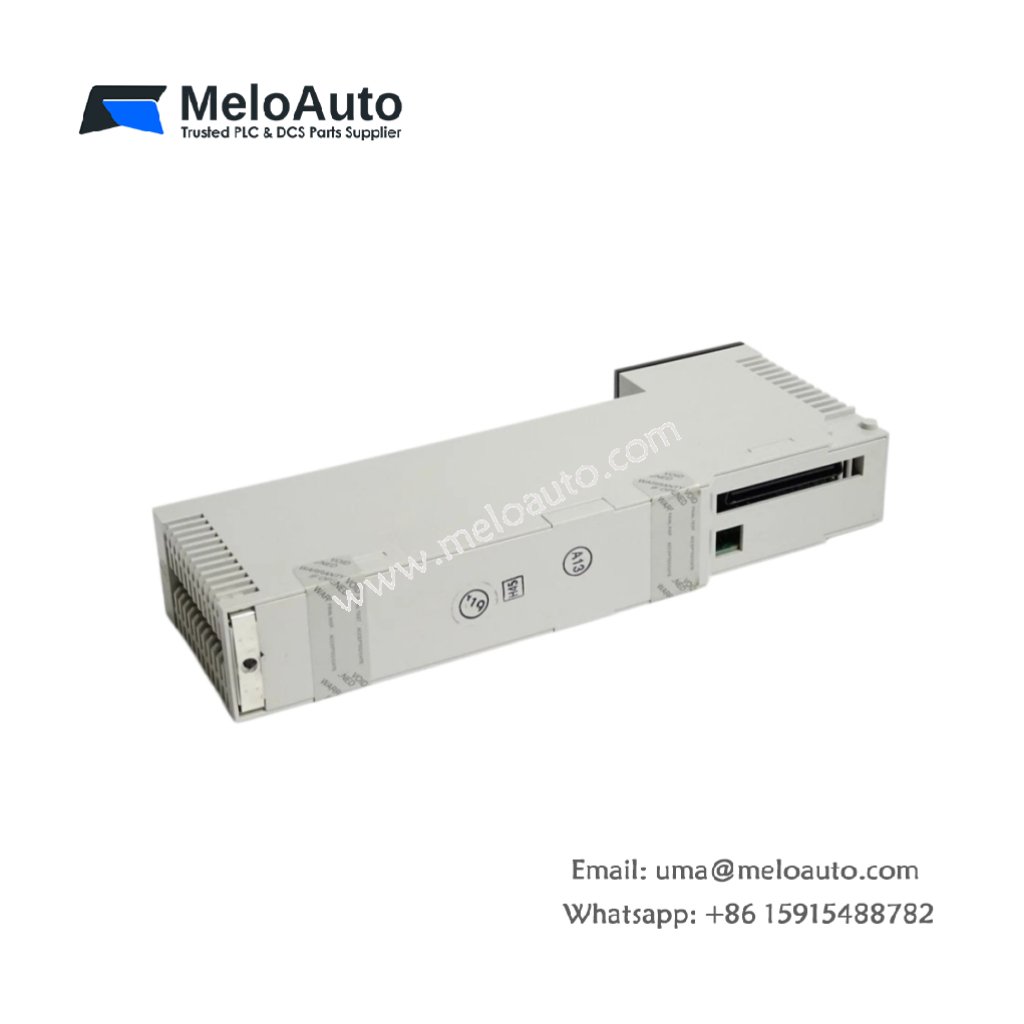

Schneider 140ECH10500 High Speed Counter

Precise Pulse Counting for Quantum Systems

The Schneider 140ECH10500 captures high-speed pulse signals from encoders and sensors. This module counts pulses, measures frequency, and monitors shaft position. It suits motion control, web handling, and flow measurement applications.

Technical Specifications

Parameter	Specification
Model	140ECH10500
Category	High Speed Counter Module
Height	123.9 mm
Width	40.1 mm
Depth	144.1 mm
Weight	0.295 kg
Counter Channels	2 independent counters (50-pin connector) or 4 counters (split mode)
Maximum Count Frequency	500 kHz per channel
Input Signal Types	RS-422 differential, 5-24 V DC single-ended
Counter Resolution	32 bits (0 to 4,294,967,295 counts)
Measurement Modes	Up/down, quadrature (X1, X2, X4), pulse/direction
Frequency Measurement	0.01 Hz to 500 kHz ±0.1%
Period Measurement	2 µs to 100 seconds
Input Voltage Range	5 V DC to 30 V DC
Input Impedance	4.7 kΩ
Connector Type	1 x 48-pin female (backplane), 1 x 50-pin (field)
Status Indicators	3 x LEDs (PWR, RUN, FLT), 4 x LED (counter activity)
Internal Components	2 counter ICs, 1 optical isolation board, 1 quartz oscillator
Energy Storage	1000 µF filtering capacitor

Counter Architecture and Channel Configuration

The 140ECH10500 features two independent high-speed counter channels. Each channel accepts RS-422 differential or single-ended 5-24 V DC signals. You can split the module into four counters using the configuration software. The Schneider 140ECH10500 provides 32-bit counter resolution for long counting ranges. It stores counts from 0 up to 4.29 billion pulses maximum. A quartz oscillator provides precise time base for frequency measurements.

Measurement Modes and Operational Flexibility

This high-speed counter module supports multiple measurement modes for various applications. Up/down mode counts pulses on two separate input lines. Quadrature mode decodes signals from incremental encoders with X1, X2, or X4 multiplication. Pulse/direction mode uses one pulse line and one direction line. The 140ECH10500 also measures frequency from 0.01 Hz to 500 kHz. Period measurement captures cycle times from 2 microseconds to 100 seconds.

Input Signal Conditioning and Noise Immunity

The Schneider 140ECH10500 includes optical isolation for all input channels. This isolation blocks electrical noise from reaching the backplane. The module accepts input voltages from 5 V DC to 30 V DC. Its 4.7 kΩ input impedance suits most industrial sensors. A 1000 µF capacitor filters power supply ripple for stable operation. The 140ECH10500 detects signal edges with 1 microsecond accuracy.

Physical Dimensions and Installation Guidelines

The Schneider 140ECH10500 weighs 0.295 kilograms for easy installation. Its height measures 123.9mm, width 40.1mm, and depth 144.1mm. Install this module in any Modicon Quantum rack slot. The module consumes 5.1 watts from the backplane power supply. It operates reliably from 0°C to +60°C ambient temperature. Use a shielded twisted-pair cable (140XTS00500) for field connections.

Status Indication and Diagnostic Features

Seven LEDs provide clear status information on the front panel. A green PWR LED indicates proper backplane power. A green RUN LED shows normal module operation. A red FLT LED signals a hardware fault condition. Four activity LEDs flash when counters detect input pulses. The Schneider 140ECH10500 stores diagnostic data in non-volatile memory. You can retrieve this data through the configuration software.
