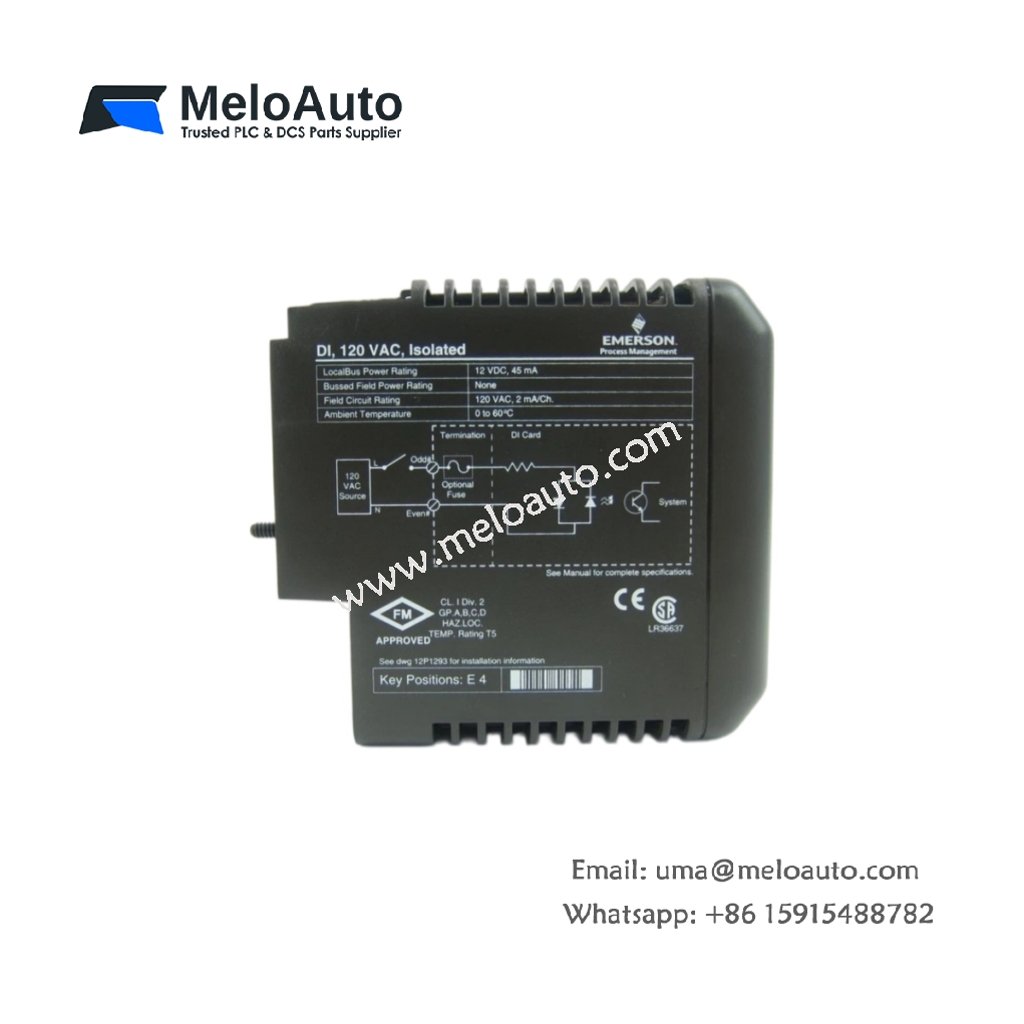

Emerson KJ3001X1-BC1 Input Module Specs

The KJ3001X1-BC1 input module from Emerson captures discrete field signals inside DeltaV control cabinets. This unit conditions incoming contact states and passes clean logic levels to the controller. Engineers pick this module when they need dependable digital sensing and fast commissioning.

Technical Specifications

Parameter	Specification
Product Model	KJ3001X1-BC1
Module Type	Digital Input Module
Input Type	Discrete contact sensing
Interface	Backplane connector, field wiring terminals
Mounting	DeltaV chassis slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.25 kg
Dimensions	Approx. 155 mm × 95 mm × 28 mm
Energy Storage	On-board capacitors for input filtering
Component Count	Multiple input channels per module

Interface and Signal Details

The KJ3001X1-BC1 links field wiring to the chassis backplane through a dedicated connector. Screw terminals secure incoming conductors and resist vibration during continuous operation. Therefore, technicians achieve firm terminations without soldering or adapter kits. The module occupies one chassis slot and draws power from the shared rail.

Physical and Environmental Parameters

The unit measures roughly 155 mm by 95 mm by 28 mm and weighs about 0.25 kg. Its compact housing fits crowded cabinets and simplifies panel layout. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board filtering suppresses contact bounce before signals reach the logic stage.

Why This Module Matters

Plant teams value the KJ3001X1-BC1 for its steady input handling and simple maintenance. The energy storage components keep readings stable during switching events. As a result, false triggers drop and troubleshooting takes less time. Technicians also appreciate the clear channel labeling and quick slot access.
