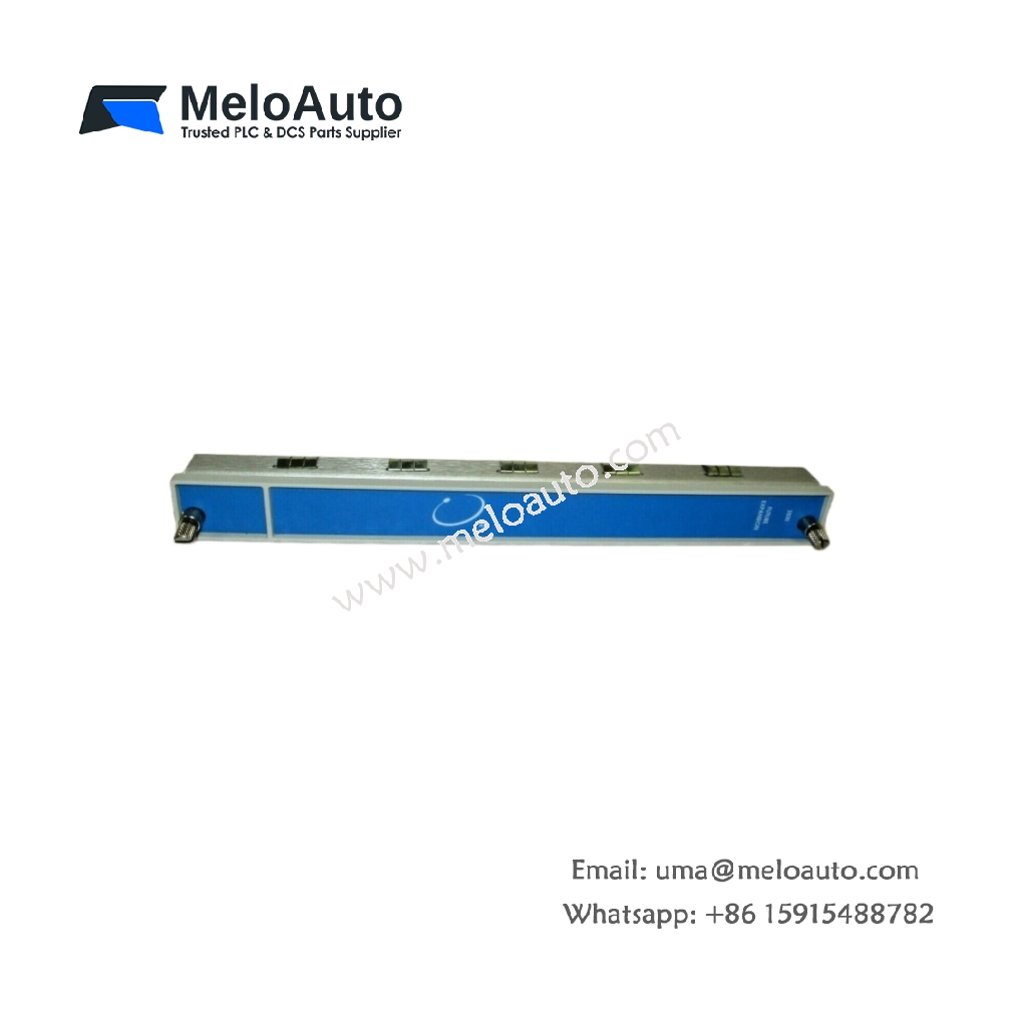

Bently Nevada 128275-01 Future Expansion Faceplate

Expansion Interface Overview

The Bently Nevada 128275-01 serves as a future expansion faceplate for the 3500 series monitoring systems. This component provides physical blanking coverage for unused rack slots. It maintains proper airflow and electromagnetic shielding within the chassis. System integrators use this faceplate to prepare for future monitoring channel upgrades.

Technical Specifications

The 128275-01 measures 241.3 mm in height and 25.4 mm in width. Its half-width design covers a single slot in the 3500 rack. The faceplate weighs approximately 0.2 kilograms. It requires no electrical power or signal connections.

Mechanical and EMC Design

This faceplate consists of a rigid aluminum body with conductive coating. Integral finger stock provides continuous grounding to the chassis. This grounding ensures effective electromagnetic interference shielding. The plating resists corrosion in industrial environments. The faceplate maintains the rack’s structural integrity when slots remain empty. Its half-width format matches the 3500 module slot dimensions exactly.

Airflow Management and Cooling

The Bently Nevada 128275-01 directs airflow properly through the 3500 rack. Blanking plates prevent air recirculation within the chassis. This redirection ensures cooling air passes through populated modules. Proper airflow extends the service life of active components. The faceplate design complies with the system’s thermal management requirements. Installing blanking plates maintains consistent rack temperature distribution.

Installation and System Preparation

Installing the 128275-01 requires securing it to the rack rail with two screws. The faceplate slides into position and locks with the captive fasteners. You can remove it quickly when adding new monitoring modules. The faceplate accommodates future system expansion without modification. It operates reliably from -30°C to +85°C ambient temperatures. This wide range suits various installation environments.

Reliability and Maintenance

The Bently Nevada 128275-01 requires no routine maintenance or calibration. Its passive design eliminates electronic failure points. Inspect the faceplate periodically for damage or loose mounting screws. Replacing a damaged faceplate takes only a few minutes. The durable construction ensures long service life in harsh conditions.
