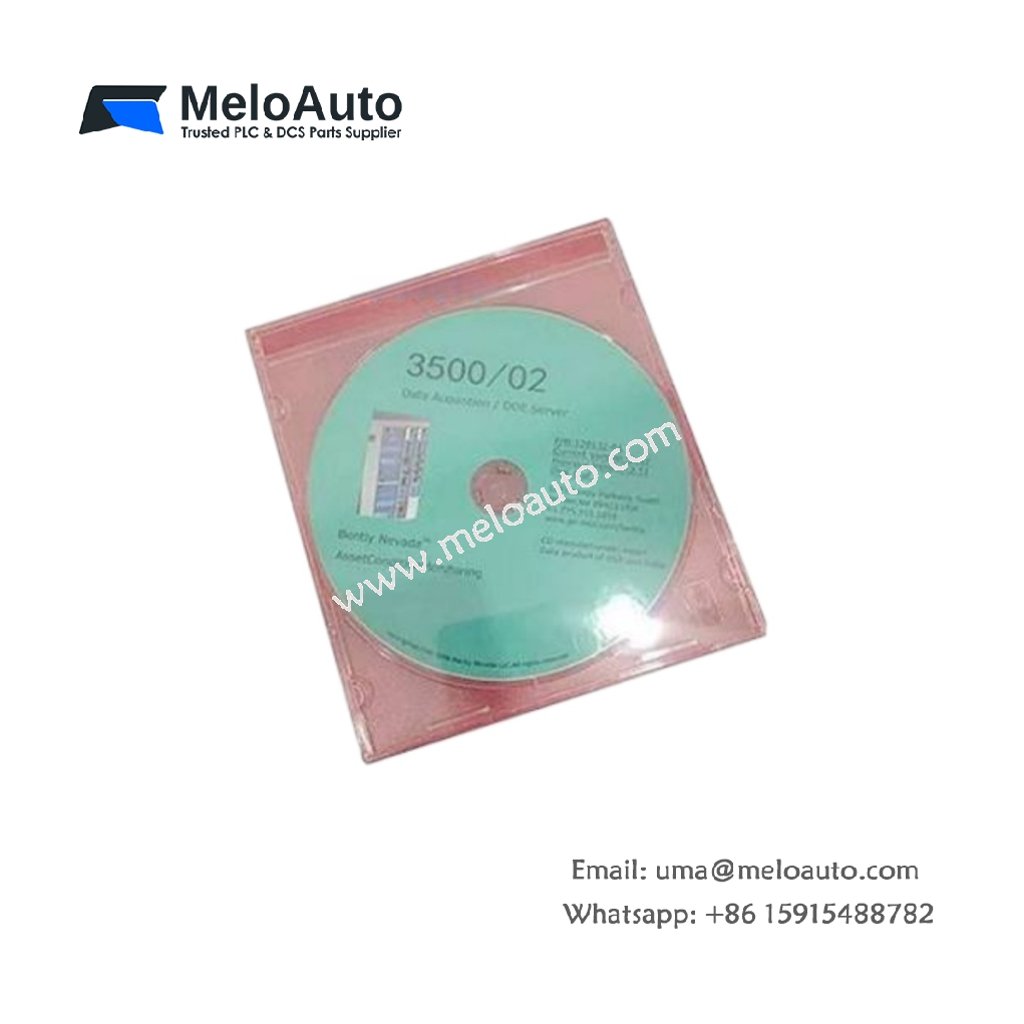

Bently Nevada 129132-01 3500/02 Config Software

Software System Overview

The Bently Nevada 129132-01 3500/02 provides configuration management for the 3500 series monitoring racks. This software enables engineers to configure channels, set alarms, and manage system parameters. It communicates with the rack through a dedicated serial or Ethernet interface. Machinery protection specialists rely on this tool for system setup and troubleshooting.

Technical Specifications

The 129132-01 3500/02 exists as a software package with specific hardware interface requirements. The media includes a CD-ROM with the installation files. It requires a Windows-based PC with a serial or Ethernet connection. The software supports all 3500 series modules and configurations.

Parameter	Specification
Model	129132-01
Product No.	3500/02
Product Type	Rack Configuration Software
Media Type	CD-ROM (1 disc)
Interface	Serial (RS-232) or Ethernet
Host OS	Windows 7, 8, 10, 11 (32/64-bit)
Rack Support	All 3500 series racks
Module Support	All 3500 series monitoring modules
Parameter Storage	Non-volatile rack memory
On-board Components	Software only (media disc)
Documentation	PDF user manual included
Network Protocol	Modbus, proprietary Bentley protocol
Programming Language	Visual C++
Operating Temp.	N/A (software environment)

Configuration Capabilities

This software allows complete rack configuration from a standard PC interface. Users can assign channel types, scaling, and measurement ranges for each module. Alarm setpoints for danger and alert bands are easily programmable. The software also configures transducer types and sensitivity values. It saves configuration files for backup or system duplication. These files ensure consistent setup across multiple monitoring racks.

Diagnostic and Troubleshooting Features

The Bently Nevada 129132-01 3500/02 includes powerful diagnostic tools for field use. It displays real-time channel readings and status information. Event logs capture alarm occurrences and system events. The software performs loop tests to verify transducer wiring. Onboard data monitoring assists in troubleshooting machine issues. These diagnostic capabilities reduce system downtime during maintenance.

Connectivity and Interface

This configuration software interfaces with the rack via standard RS-232 serial or Ethernet. A direct serial connection works for initial commissioning. Ethernet connectivity enables remote configuration from any network location. The software automatically detects connected racks and modules. The user interface presents parameters in logical groups. This design simplifies configuration for non-specialist personnel.

Installation and System Requirements

Installing the 129132-01 3500/02 requires a PC with a CD-ROM drive. The software installs in under 10 minutes with the setup wizard. You need administrative privileges for proper installation. The host computer must meet minimum Windows system requirements. A serial port or Ethernet port provides the physical interface. The software works with both 32-bit and 64-bit Windows systems.

Reliability and Support

The Bently Nevada 129132-01 3500/02 provides stable, professional-grade configuration tools. Regular software updates address bug fixes and module compatibility. The software stores configuration files for disaster recovery. Bentley Nevada offers technical support for integration issues.
