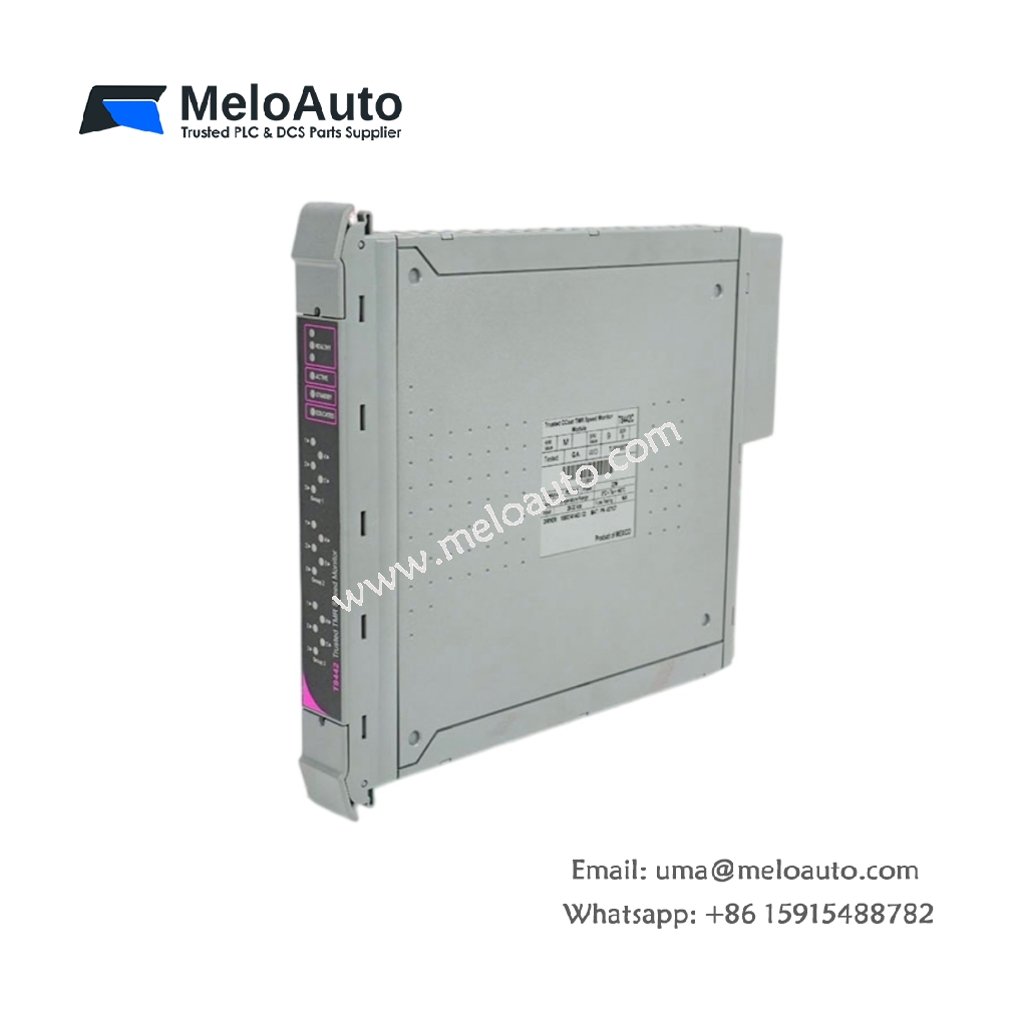

ICS Triplex T8442C Trusted TMR Processor

The ICS Triplex T8442C Trusted TMR Processor delivers triple modular redundancy for safety-critical control systems. Plant operators depend on this unit for continuous operation in high-risk industrial environments. Accordingly, its architecture ensures fault tolerance without compromising processing speed.

Key Technical Specifications

The T8442C module provides detailed parameters for accurate system planning. Its robust construction suits demanding Trusted system installations.

Parameter	Specification
Module Type	Trusted TMR Processor
Dimensions	180 mm x 110 mm x 32 mm
Weight	0.48 kg
Architecture	Triple Modular Redundant (TMR)
Processor Cores	3 independent voting cores
Connector Type	Backplane interface
Isolation Voltage	500 VDC channel-to-bus
Power Consumption	7 W typical
Operating Voltage	24 VDC nominal
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity Range	5% to 95% non-condensing
Component Count	78 active components
Energy Storage	250 µF capacitor bank
Mounting	Trusted rack chassis
Voting Time	Less than 3 ms

Redundancy and Fault Tolerance

Three independent cores vote on every computation to eliminate single-point failures. Moreover, the sub-3 ms voting time maintains deterministic control loop performance. Therefore, the T8442C supports SIL 3 safety applications across process industries.

Power Stability and Isolation

The 250 µF capacitor bank stabilizes voltage during transient load fluctuations. Additionally, 500 VDC optical isolation protects internal logic from external electrical noise. Consequently, the module maintains signal integrity in electrically harsh plant environments.

Integration and Diagnostics

Engineers mount the T8442C directly into Trusted racks through the backplane interface. Furthermore, built-in diagnostics report module health without interrupting active control operations. As a result, maintenance teams identify faults before they impact production.
