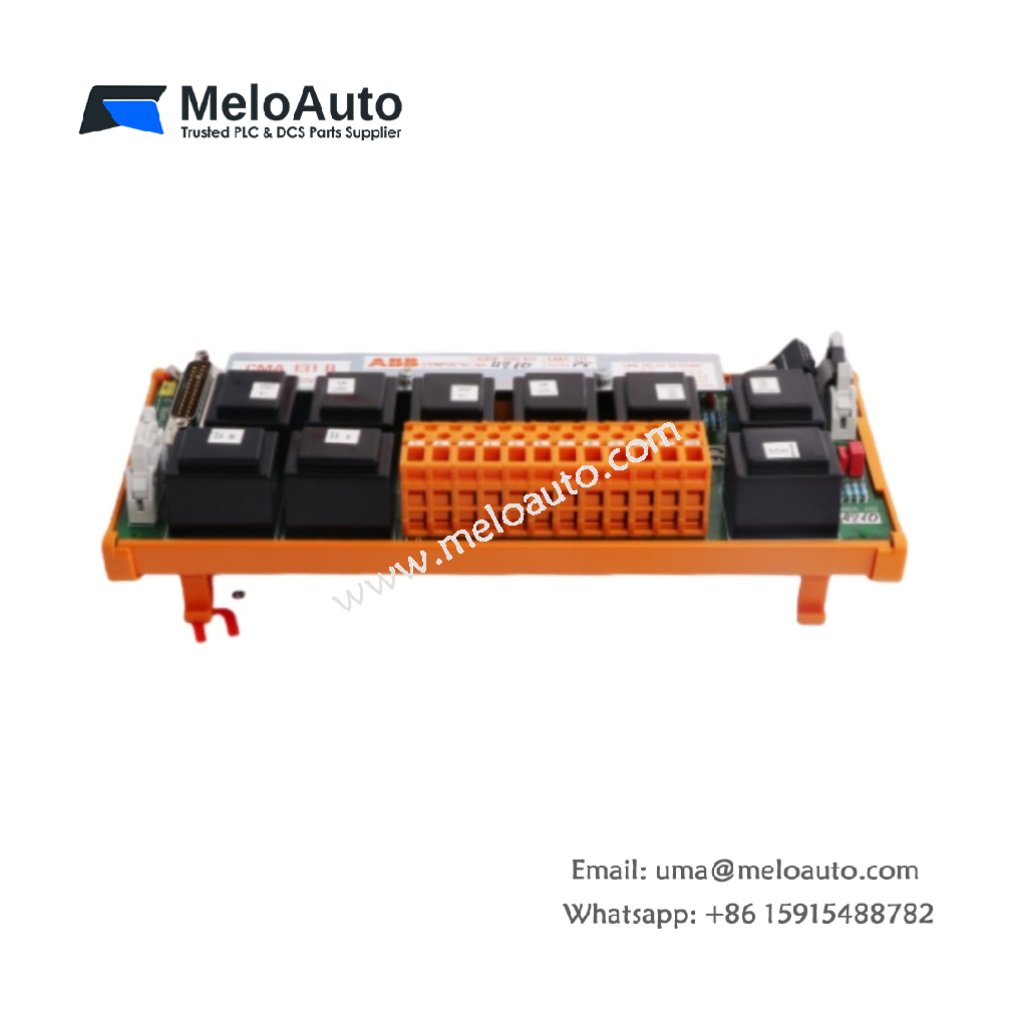

ABB CMA131 Servo Motor Drive Encoder Module

The ABB CMA131 is a high-performance servo motor drive encoder module designed for precise control and exceptional reliability. This versatile module offers efficient power handling, precise speed, and torque control, making it ideal for demanding industrial automation applications. It seamlessly integrates into various systems, ensuring smooth operation in robotics, manufacturing, and other precision-driven processes.

Key Features and Specifications

Manufacturer: ABB
Product Model: CMA131
Product Type: Servo Motor Drive Encoder Module
Category: Motion Control & Automation
Input Voltage: 200-460 VAc, 3-phase
Output Power: 0.5 to 1.5 kW
Continuous Current: 2.3 to 5.5 A
Peak Current: 4.6 to 11 A
Speed Range: 0 to 3000 rpm
Torque Range: 0.7 to 3.5 Nm
Encoder Resolution: 1000 to 20,000 PPR
Communication: RS-232, RS-485, CANopen

Physical Specifications

Parameter	Specification
Input Voltage	200-460 VAc, 3-phase
Output Power	0.5 to 1.5 kW
Continuous Current	2.3 to 5.5 A
Peak Current	4.6 to 11 A
Speed Range	0 to 3000 rpm
Torque Range	0.7 to 3.5 Nm
Encoder Resolution	1000 to 20,000 PPR
Communication	RS-232, RS-485, CANopen

Performance and Efficiency

The ABB CMA131 delivers efficient power with an output range of 0.5 to 1.5 kW, ensuring it meets the demanding power requirements of various industrial applications. This module supports continuous current up to 5.5 A and can handle peak currents of up to 11 A, providing ample power for high-performance servo motor systems.

Additionally, the CMA131 operates within a speed range of 0 to 3000 rpm and a torque range of 0.7 to 3.5 Nm, offering exceptional precision and versatility in speed and torque control. Furthermore, the encoder resolution ranges from 1000 to 20,000 PPR, providing fine-tuned control for applications that require high precision.

Communication Flexibility

Equipped with multiple communication protocols, including RS-232, RS-485, and CANopen, the CMA131 offers seamless integration into various industrial systems. These communication options provide flexibility, making the encoder module ideal for a wide range of applications.

Applications

The ABB CMA131 is perfect for high-performance servo motor systems and precision-driven applications, such as:

Industrial Automation and Robotics: Ensures precise control and reliability in automated systems and robotic arms.
Manufacturing Processes: Provides fine control in manufacturing systems requiring speed, torque, and encoder precision.
High-Performance Servo Motor Systems: Ideal for applications needing optimal performance and accuracy.

Availability

The ABB CMA131 is available through authorized ABB distributors. It is a reliable solution for industries that require high-performance motion control in industrial automation and robotics.
