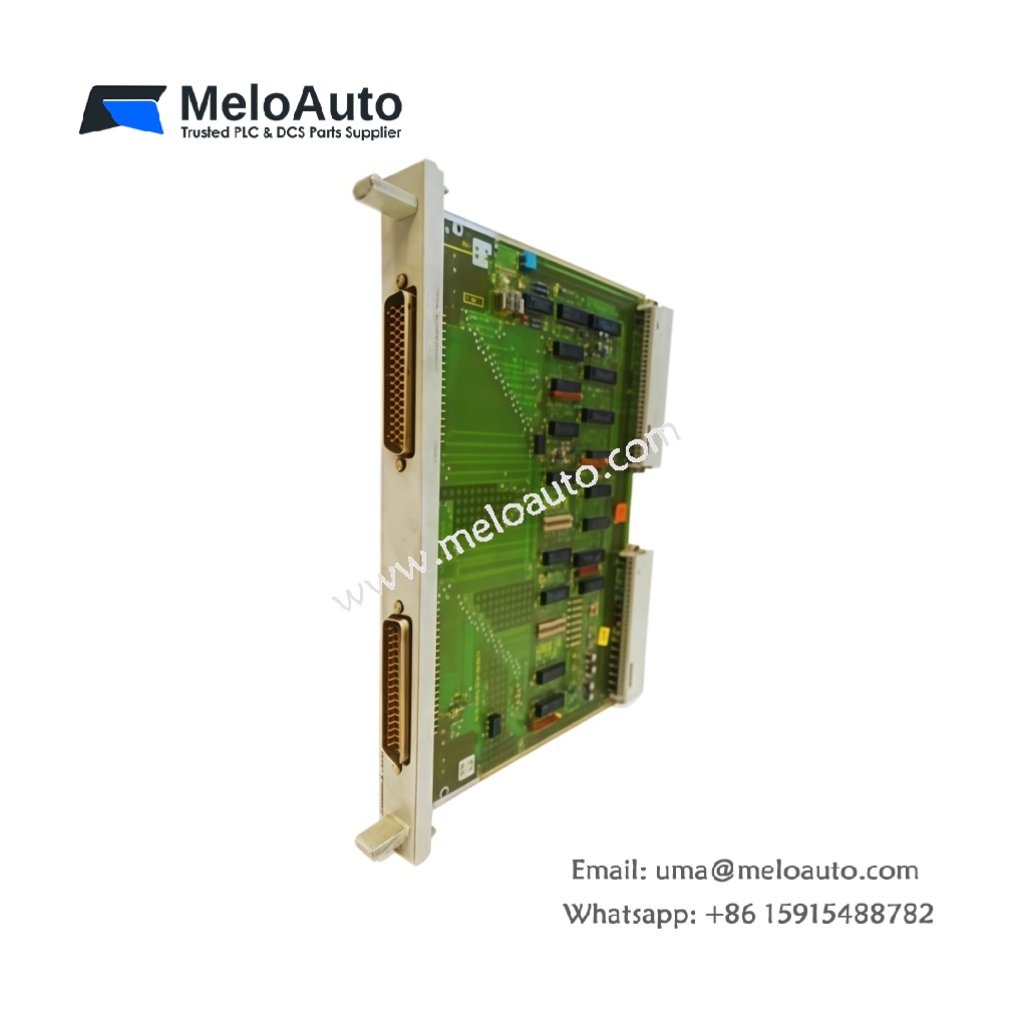

Siemens 6ES5310-5AA12 IM310 Compact Interface Module

Distributed Expansion Connection for SIMATIC S5 Systems

The 6ES5310-5AA12 interface module, also known as the IM310, serves as a critical link for connecting expansion units to a central SIMATIC S5 controller . This compact module extends the automation system’s reach while maintaining reliable communication between the CPU and remote racks. Consequently, it enables distributed configurations for large-scale industrial applications.

Technical Specifications

System Integration and Communication Performance

The 6ES5310-5AA12 interfaces between a central controller and connected expansion racks. This module supports communication over distances up to 1000 meters, allowing flexible placement of I/O stations throughout a facility . The IM310 couples to EU182 racks, extending the system’s I/O capacity . Furthermore, it ensures efficient data exchange between distributed components.

Physical Characteristics and Installation

Weighing just 0.19 kg, this interface module features a compact design suitable for space-constrained cabinets . Its lightweight construction simplifies installation and maintenance. The module fits standard S5 rack configurations and connects seamlessly to expansion units.

Product Availability

The 6ES5310-5AA12 module remains available through various industrial automation distributors. This module is currently in stock with many suppliers . Many vendors offer warranties on these modules, ranging from 1 to 2 years .
