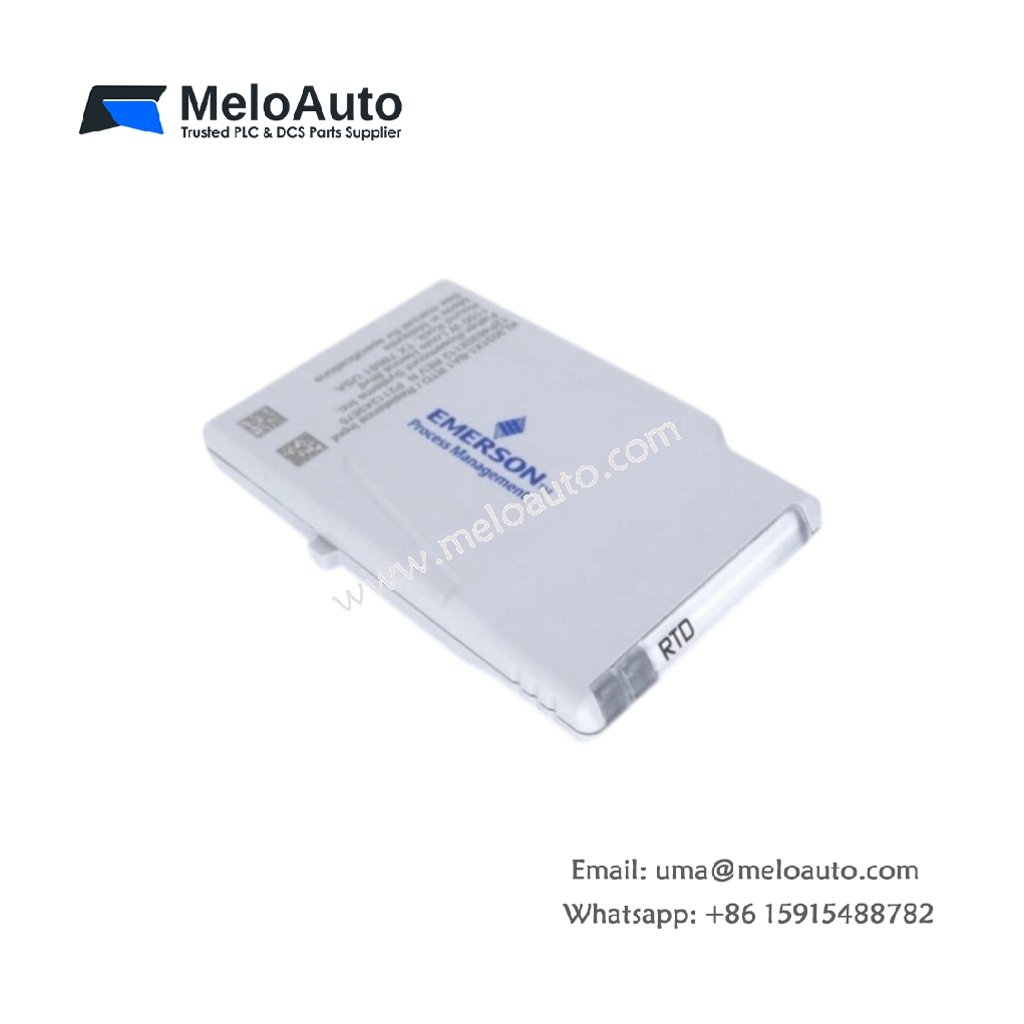

Emerson KL3031X1-BA1 RTD Input CHARM Specs

The KL3031X1-BA1 RTD input CHARM from Emerson measures temperature signals from resistive sensors inside DeltaV carriers. This module converts resistance changes into precise digital readings for the controller. Engineers choose this unit when they need accurate temperature monitoring with minimal field wiring.

Technical Specifications

Parameter	Specification
Product Model	KL3031X1-BA1
Module Type	RTD Input CHARM
Input Type	Resistive temperature detector sensing
Interface	Backplane connector, CHARM carrier contacts
Mounting	DeltaV CHARM carrier slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.18 kg
Dimensions	Approx. 140 mm × 88 mm × 25 mm
Energy Storage	On-board capacitors for excitation and filtering
Component Count	Single RTD input channel per module

Interface and Signal Details

The KL3031X1-BA1 connects field RTD leads to the carrier backplane through dedicated slot contacts. Each module handles one sensor channel and digitizes the resistance value internally. Therefore, technicians gain stable readings without external transmitters or signal conditioners. The unit seats in a standard carrier slot and draws power from the shared rail.

Physical and Environmental Parameters

The module measures roughly 140 mm by 88 mm by 25 mm and weighs about 0.18 kg. Its slim housing supports dense channel counts inside compact carriers. Meanwhile, the 0°C to 60°C operating range suits most control room environments. The on-board energy storage stabilizes excitation current and filters measurement noise.

Why This Module Matters

Plant teams value the KL3031X1-BA1 for its accurate temperature sensing and compact footprint. The filtering capacitors keep readings steady during electrical interference events. As a result, process control stays tight and calibration intervals extend. Technicians also appreciate the clear channel marking and quick slot replacement.
