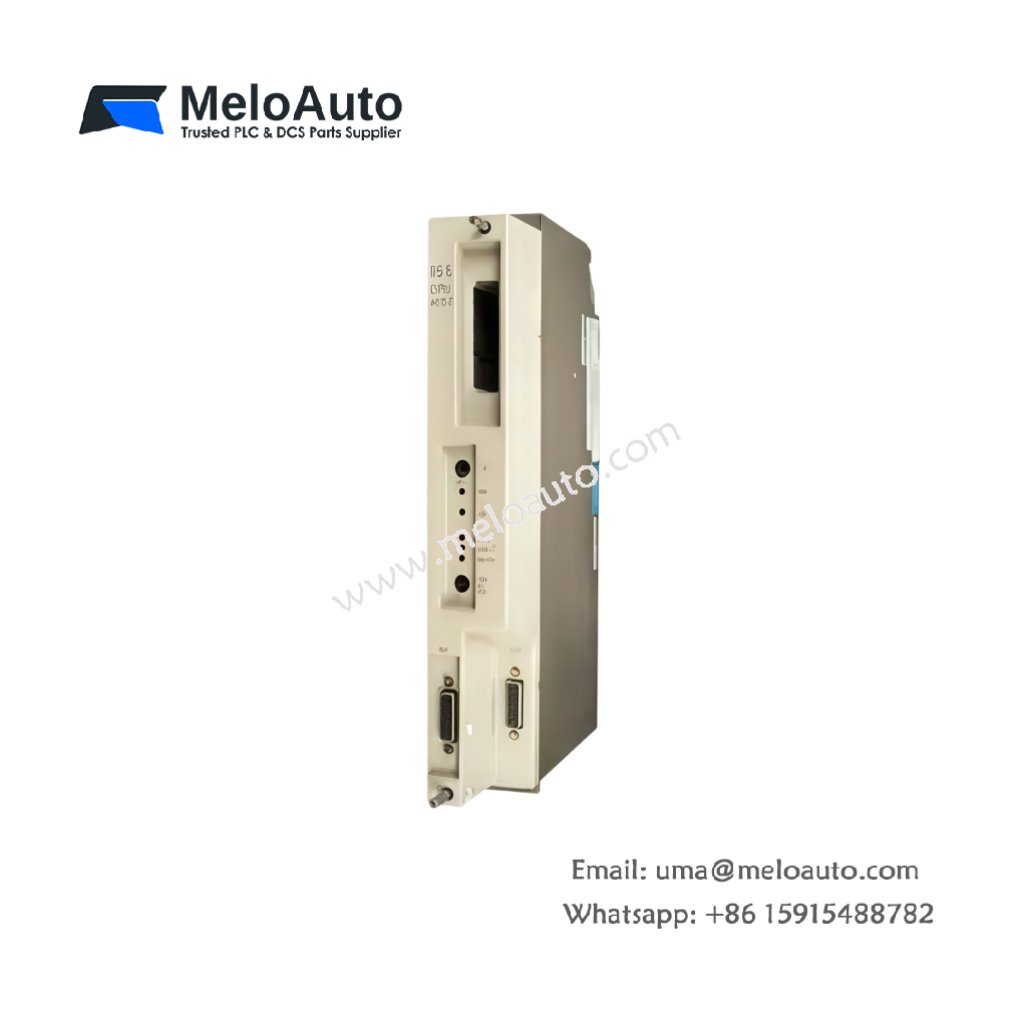

Siemens 8SX8501-0AB21 Processor Module

Core Processing Unit for SIMATIC S5 Systems

The 8SX8501-0AB21 processor module serves as a central component for the SIMATIC S5 automation platform. This module handles the execution of control programs and manages system resources efficiently. It utilizes the STEP 5 programming language, which is standard across the S5 family. Therefore, this module suits medium-scale automation tasks, similar to other CPUs like the 6ES5927-5KA13.

Technical Specifications

Memory and Program Execution

The 8SX8501-0AB21 features integrated RAM for program and data storage. Additionally, it supports optional submodules for memory expansion when required. The CPU executes the user program cyclically and processes interrupts without delay. Consequently, this design ensures deterministic control responses in time-critical applications. Moreover, the optional submodules store firmware upgrades or additional library functions effectively.

System Integration and Compatibility

This processor module fits directly into the S5 central rack (CR 700/701/702) or expansion racks (ER 701/702). Users attach the 8SX8501-0AB21 to the backplane bus and configure the system using a programming device. Furthermore, the module communicates with digital and analog I/O modules via the backplane bus. Thus, it enables comprehensive control over field devices in distributed configurations.

Physical Characteristics

The 8SX8501-0AB21 module occupies a single slot in the S5 chassis. Its dimensions are consistent with the standard S5 module format. The front panel includes a programming port and LED status indicators for “Run,” “Stop,” and “Error” states. In addition, this module forms part of the legacy S5 portfolio, which Siemens has discontinued.
