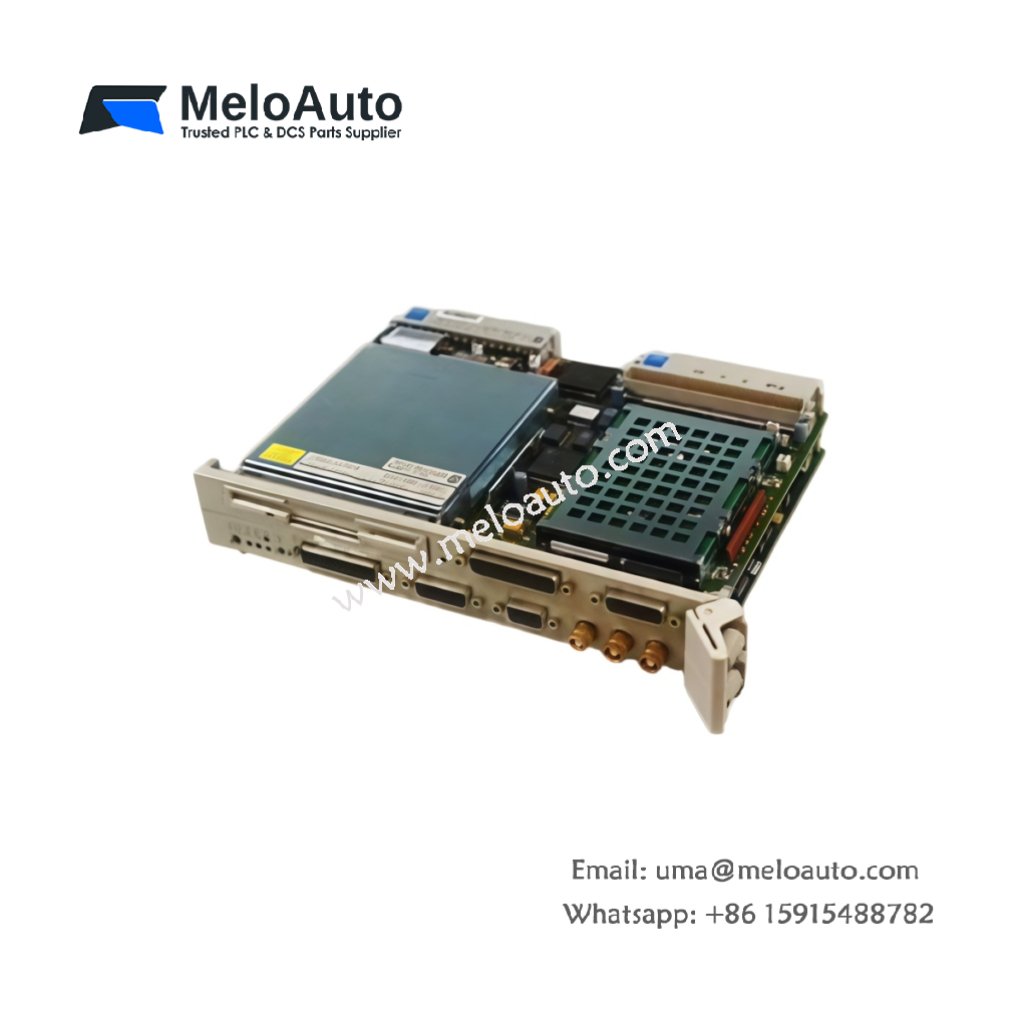

Siemens 6AV4530-1BD00-7HA0

Visual Interface Solution for SIMATIC S5 Systems

The 6AV4530-1BD00-7HA0 video module provides advanced graphic display capabilities for SIMATIC S5 operator control and monitoring. This module integrates seamlessly into existing S5 rack configurations, enhancing system visualization. Consequently, it serves as a vital component for applications requiring complex visual representations of process data. Operators rely on this module for clear, real-time insights into machine and plant status.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Line	SIMATIC S5
Model	6AV4530-1BD00-7HA0
Product Type	Video Module
Compatibility	SIMATIC S5 PLC Systems
Display Function	Graphic visualization
Communication	S5 backplane bus
Mounting	Standard S5 rack slot
Indicators	Status LEDs
Product Status	Legacy
Certifications	CE, UL, CSA

Display and Visualization Capabilities

The 6AV4530-1BD00-7HA0 transforms process data into clear visual representations, improving operator understanding of system status. It supports graphic displays that help operators monitor complex industrial processes effectively. Furthermore, this module enhances the human-machine interface by providing visual feedback for control actions and system alarms. The video module also supports various screen formats for flexible display configurations. Its high-contrast display ensures readability in varying lighting conditions.

System Integration and Application

This video module integrates with SIMATIC S5 CPUs through the backplane bus for seamless data exchange. It serves as an integral component for process monitoring applications. The 6AV4530-1BD00-7HA0 offers a robust solution for visualization tasks. Its design ensures reliable performance in industrial environments. The module also supports operator input through function keys for efficient navigation.

Physical Characteristics and Installation

The fits standard S5 rack slots for easy installation. Its front panel includes LED indicators for operational status. The module’s robust construction withstands factory conditions, including temperature variations and vibration. Users can install and replace the module during maintenance with minimal effort.

Product Status

Siemens has designated the 6AV4530-1BD00-7HA0 as a legacy product. Users may source this module through industrial automation distributors offering new old stock.
