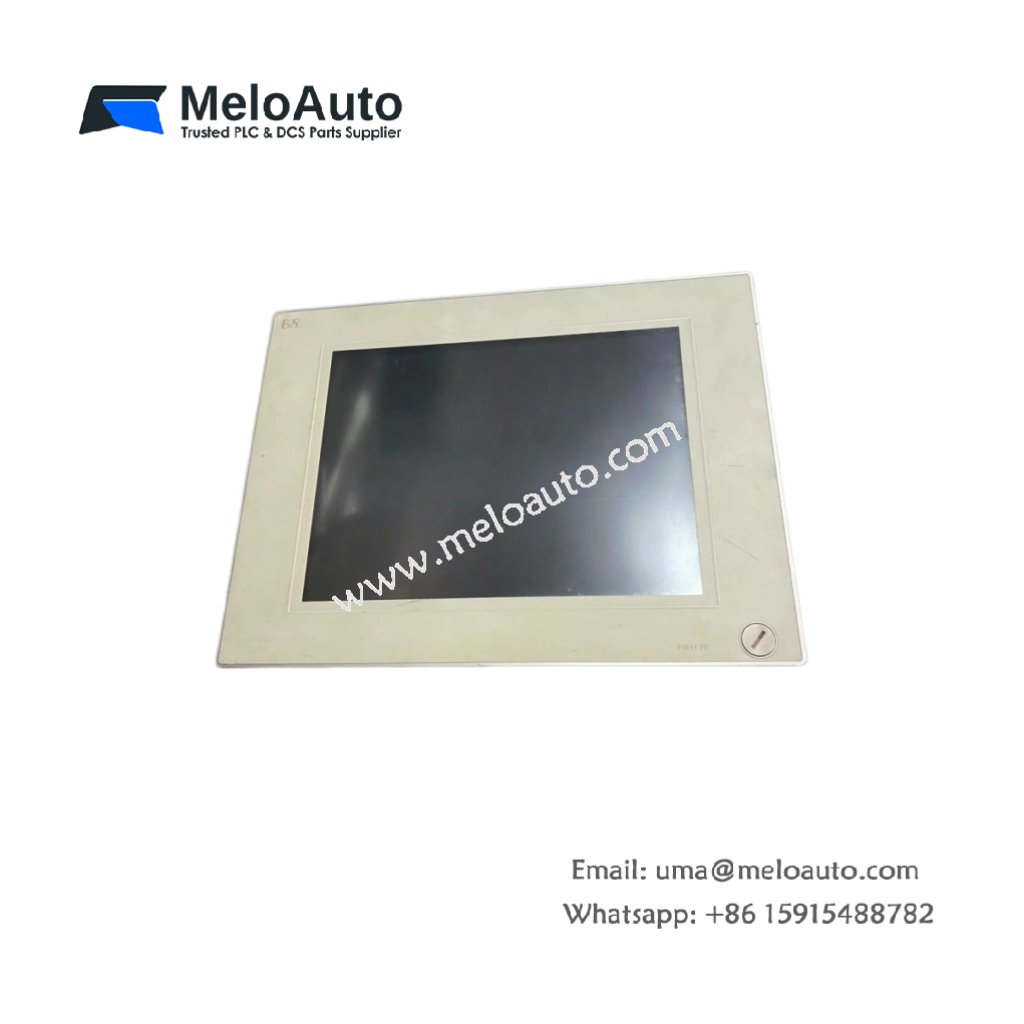

B&R 5PC820.1505-00 Color Display | 15 Inch XGA HMI Panel

This color display provides operator interface functionality for industrial automation systems. It visualizes machine data and accepts touch commands from operators. You will mount this panel on control cabinets or machine frames.

Key Technical Specifications

The 5PC820.1505-00 features a 15-inch TFT LCD with XGA resolution. Its resistive touch screen registers inputs from gloved fingers or stylus pens. The panel also includes a bright LED backlight for excellent outdoor readability.

Parameter	Technical Data
Product Type	Industrial HMI Color Display
Screen Size	15 inches diagonal
Resolution	1024 x 768 pixels (XGA)
Display Technology	TFT LCD
Touch Technology	Resistive, analog
Backlight Type	LED (50,000 hours typical)
Brightness	400 cd/m²
Aspect Ratio	4:3
Dimensions (W x H x D)	38.5 cm x 30.5 cm x 6.5 cm
Cutout Dimensions	36.5 cm x 28.5 cm
Total Weight	4.2 kg (9.26 lbs)
Interface Ports	2 x Ethernet, 2 x USB, 1 x RS-232
Power Supply	24V DC ±20%
Energy Storage	2200 µF input filtering
Operating Temperature	0°C to 50°C
Protection Rating (Front)	IP65 (NEMA 4X)

Hardware Architecture and Processing Power

The 5PC820.1505-00 integrates an Intel Atom processor running at 1.6 GHz. Its onboard memory includes 2 GB of DDR3 RAM for application execution. A separate 8 GB SSD stores the operating system and user projects. The LED backlight consumes only 12W of power during normal operation.

Interface and Connectivity

Two Ethernet ports connect the display to PLCs and network switches. Two USB ports accept mouse, keyboard, or storage devices for data transfer. One RS-232 serial port links legacy equipment to the modern HMI. The rear panel also features a 24V DC input terminal block with reverse polarity protection.

Practical Installation Notes

Cut a 36.5 x 28.5 cm hole in the cabinet door for flush mounting. The 5PC820.1505-00 requires 10 cm clearance behind the panel for cables. Use the included mounting clamps to secure the unit from the rear. Clean the resistive touch surface only with a soft, damp cloth.
