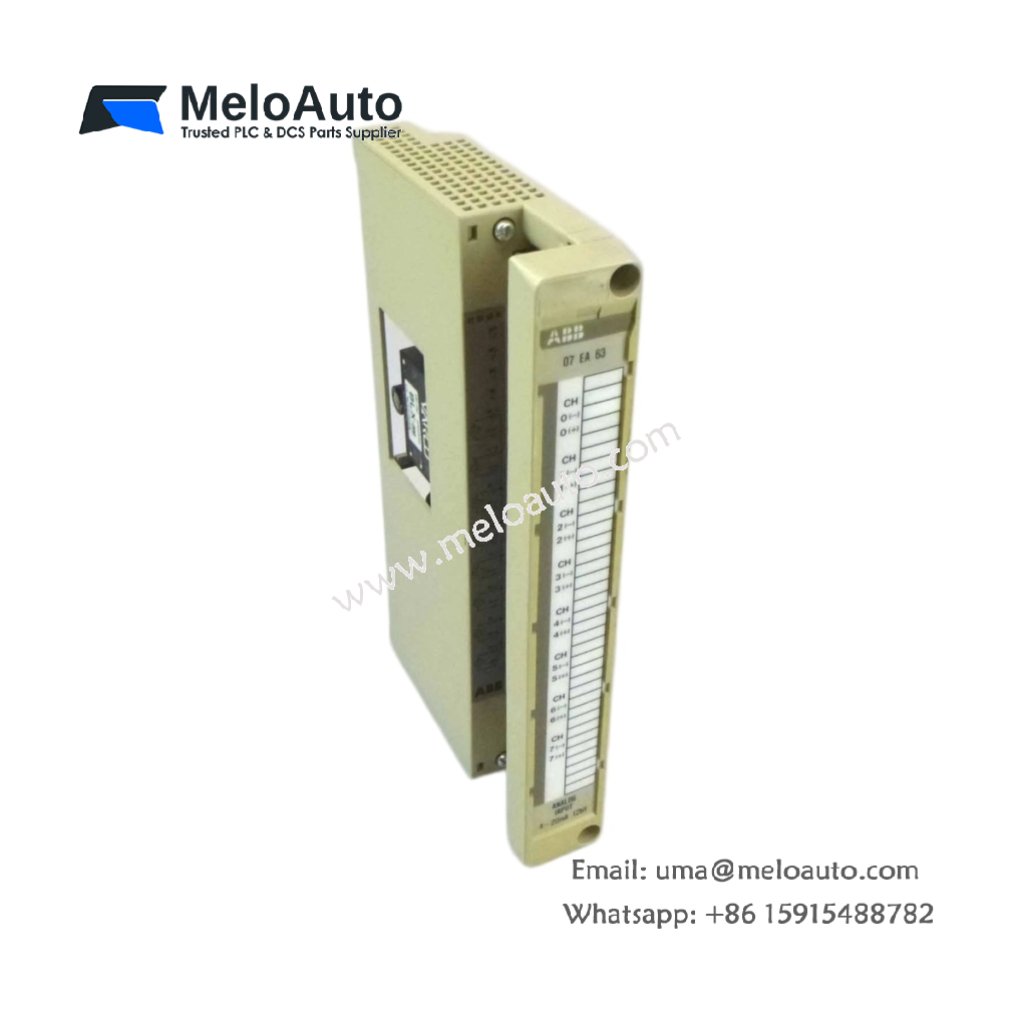

ABB 07 EA 62 R1 – Analog Input Module for Signal Acquisition

The ABB 07 EA 62 R1 converts field analog signals into digital data for controllers. This module measures 160 mm in width and 100 mm in height. It has a depth of 45 mm, so it fits compact DIN rail enclosures easily. The unit weighs 0.32 kg, making handling during installation simple.

Internal Architecture and Component Layout

This analog input module contains two separate circuit boards inside its plastic housing. One board handles signal conditioning, while the other performs analog-to-digital conversion. The ABB 07 EA 62 R1 includes eight single-ended input channels on its front panel. Each channel uses a dedicated 12-bit ADC for accurate signal conversion. The module stores 100 µF of capacitance for power supply filtering only.

Input Ranges and Field Wiring Connections

You can configure each channel for voltage signals from 0 to 10V DC. Alternatively, you can set any channel for current signals from 0 to 20 mA. The ABB 07 EA 62 R1 provides sixteen screw terminals on its front panel. These terminals accept wire gauges from 24 AWG to 18 AWG comfortably. Each input channel includes overvoltage protection up to 30V DC.

Power Requirements and Communication Interface

You must supply 24V DC power to the dedicated terminals on this module. The ABB 07 EA 62 R1 draws 100 mA at 24V DC during normal operation. Therefore, total power consumption reaches 2.4 watts for the entire module. A 20-pin ribbon cable carries digital data to the main controller. The module updates all eight channels every 20 milliseconds.

Environmental Tolerance and Mounting Details

You can mount this module on a standard DIN rail inside any control cabinet. The device operates reliably from 0°C to 55°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The ABB 07 EA 62 R1 contains no backup battery, so maintenance stays minimal. Consequently, it suits factory automation systems and small process control applications.

Below is a complete summary of its technical specifications.

The ABB 07 EA 62 R1 replaces older analog input cards in Advant OCS systems directly. You do not need any special adapters or additional configuration tools. This module also supports hot-swapping, so you can replace it without powering down. Therefore, you can maintain production while upgrading your analog input capacity.
