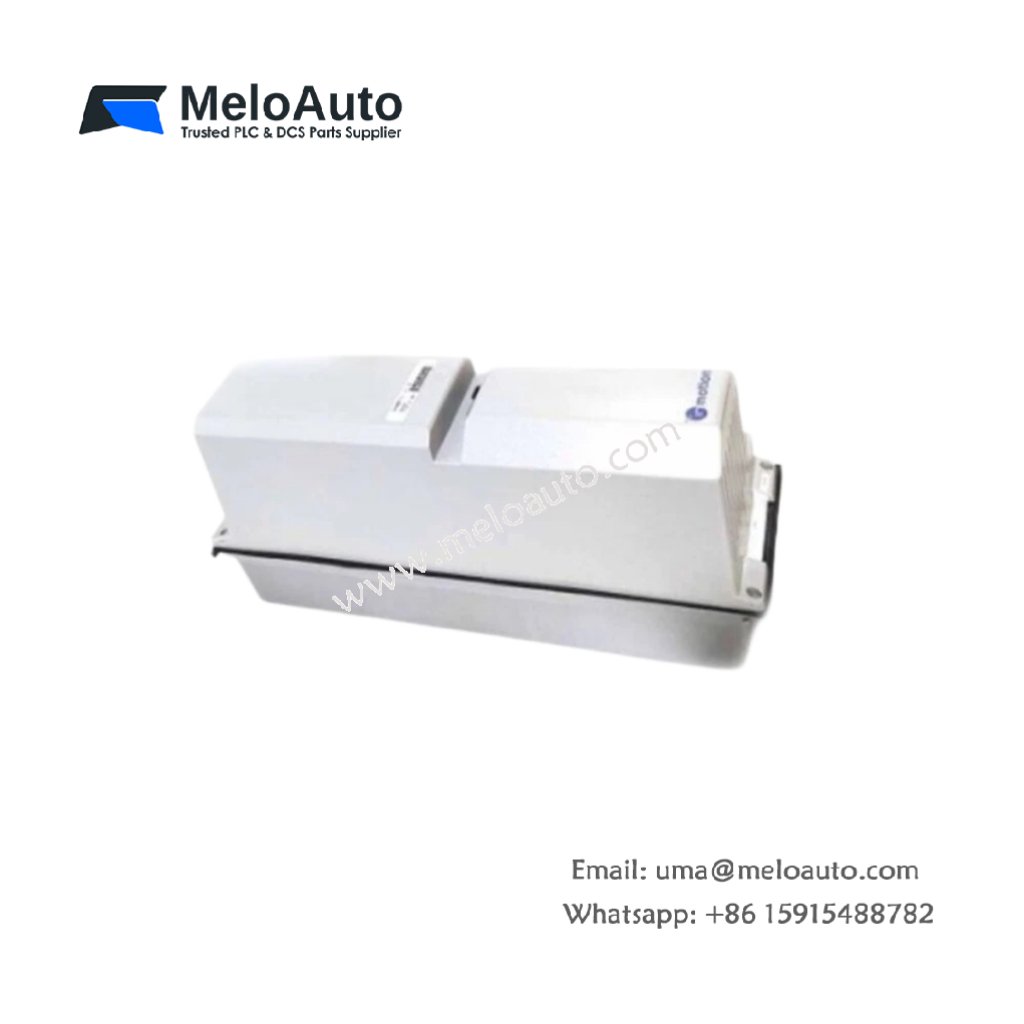

ABB 3HAB8101-3/11A Servo Drive

The ABB 3HAB8101-3/11A regulates speed and torque for small AC servo motors. This drive measures 300 mm in height and 60 mm in width. It has a depth of 180 mm, so it fits tight cabinet spaces easily. The unit weighs 1.9 kg, making mounting straightforward and secure.

Internal Power Stage and Component Configuration

This servo drive contains four IGBT modules arranged on its main power board. Each IGBT handles up to 8 amps of continuous current without overheating. The ABB 3HAB8101-3/11A includes a separate gate driver board for switching control. Two Hall effect sensors monitor phase currents in real time for accurate regulation. The module stores 800 µF of capacitance on its DC link bus.

Input Power and Output Specifications

You must supply 230V AC single-phase power to the main input terminals. The drive accepts a voltage tolerance of ±10 percent from this nominal value. The ABB 3HAB8101-3/11A delivers 2.2 kVA of continuous output power. It provides 5.0 amps of continuous current to the connected motor. For peak loads, the unit supplies 10.0 amps for up to 2 seconds.

Control Interfaces and Feedback Connections

You will find one encoder interface port on the front panel of this drive. This port accepts incremental encoder signals with A and B channels. The ABB 3HAB8101-3/11A also provides two digital input channels for enable and reset. One relay output indicates drive status as ready or faulted clearly. A 9-pin D-sub connector handles analog command signals of ±10V DC.

Energy Storage and Regenerative Management

The DC link capacitance of 800 µF absorbs regenerative energy from decelerating motors. This storage reduces voltage spikes on the internal DC bus significantly. The ABB 3HAB8101-3/11A also includes a braking chopper for excess energy dissipation. An external braking resistor connects to the dedicated terminals for heavy loads. The drive stores no backup battery for parameters, so you should save settings externally.

Below is a complete summary of its technical specifications.

Parameter	Value
Dimensions (H x W x D)	300 mm x 60 mm x 180 mm
Weight	1.9 kg
Number of IGBTs	4
Continuous Current	5.0 A
Peak Current (2 sec)	10.0 A
Output Power	2.2 kVA
Input Voltage	230V AC single-phase ±10%
DC Link Capacitance	800 µF
Feedback Interface	Incremental encoder
Digital Inputs	2
Relay Outputs	1
Command Signal	±10V DC analog
Communication Port	9-pin D-sub

The ABB 3HAB8101-3/11A operates reliably from 5°C to 45°C ambient temperature. You can mount this drive vertically to ensure proper natural convection cooling. The module tolerates humidity up to 85 percent without any condensation issues. Consequently, this servo drive suits light-duty axes like pick-and-place machines and small conveyors perfectly.
