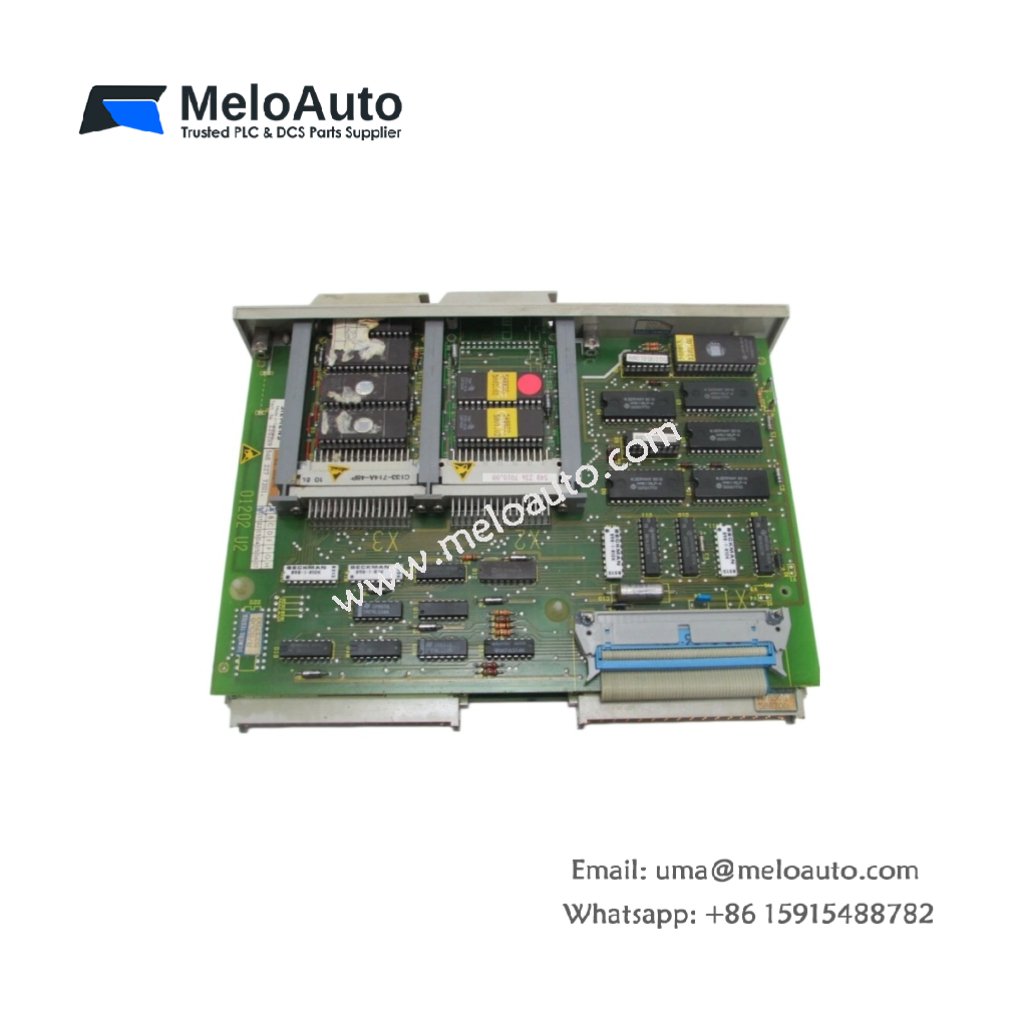

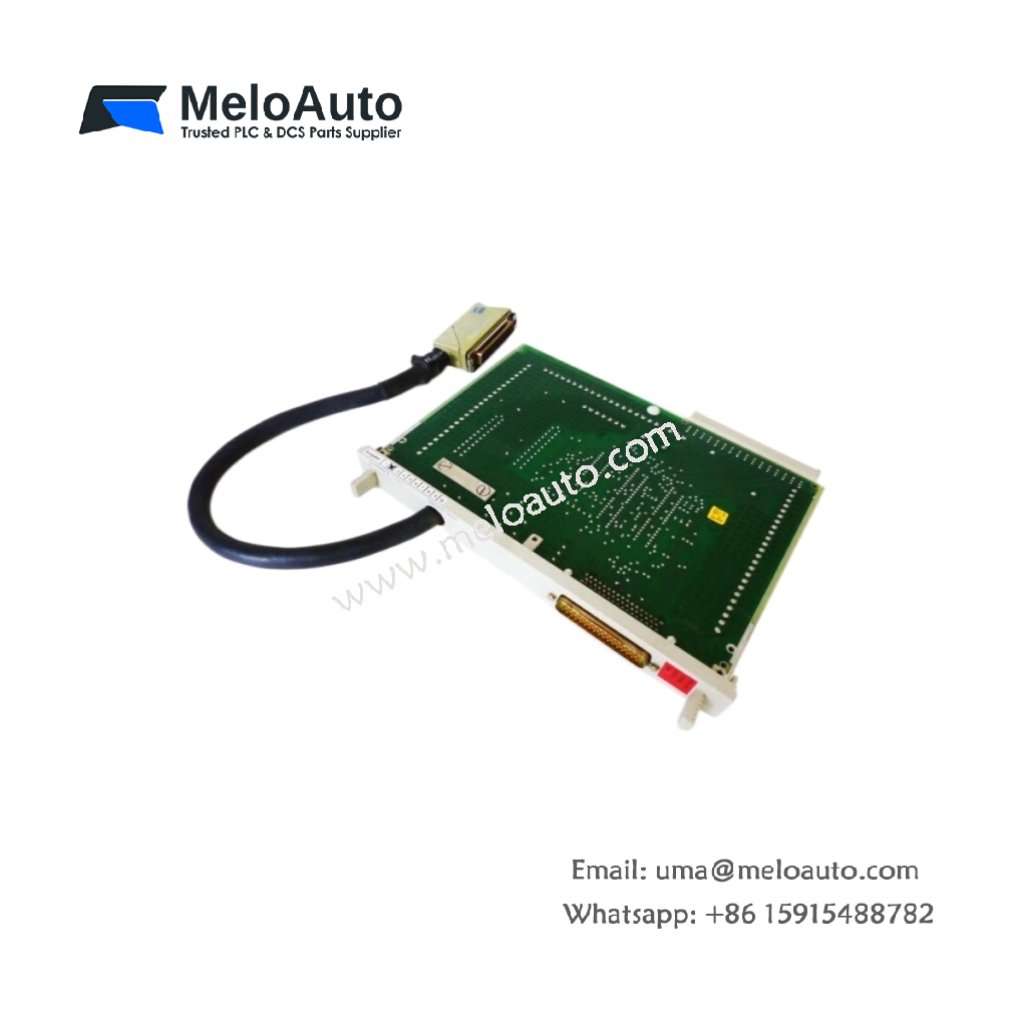

Siemens 6ES5312-5AA21 Interface Module

The 6ES5312-5AA21 serves as an interface module for SIMATIC S5 automation systems. This unit couples signals between different voltage levels and logic families. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.82 kilograms. Therefore, installation requires sliding the module into a standard S5 rack slot. One 20-pin front connector handles all field wiring connections.

Physical Layout and Connectors

The front connector accepts wires up to 16 AWG gauge. A green LED indicates power present on the module. Two guide rails secure the module firmly in the rack. Four status LEDs show signal direction and activity. You can remove the front connector without disconnecting the module from the backplane.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.82 kg
Signal Channels	16 (bidirectional)
Front Connector	1 x 20-pin (16 AWG)
Component Total	198 discrete parts
Input Voltage Range	5V to 48V DC
Output Voltage Range	5V to 48V DC
Current Capacity	50 mA per channel
Isolation Voltage	1500V (optocoupler)
Internal Energy Storage	470 µF capacitor bank
Response Time	1 ms typical
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5312-5AA21 contains exactly 198 discrete components onboard. A 470 microfarad capacitor bank filters the internal logic supply voltage. Sixteen bidirectional optocouplers provide signal isolation for each channel. Each optocoupler withstands 1500 volts between input and output sides. The module includes current limiting resistors for all signal paths. A simple PCB routes signals without active processing components.

Operational Performance

This interface module converts signals between 5V logic and 24V field devices. It couples signals in both directions without direction control signals. Moreover, the unit provides galvanic isolation for noise immunity. You can connect PLC outputs to field relays or contactors directly. The module filters voltage spikes on incoming signal lines. Four LEDs show signal direction and activity status. Consequently, you achieve reliable signal matching between mismatched systems. Siemens designed this module for industrial interfacing applications. Its passive design requires no software configuration.

In summary, the 6ES5312-5AA21 delivers flexible signal interfacing. Use this module for connecting 5V logic to 24V field devices. It simplifies voltage conversion without external components. Order this interface module for your Siemens SIMATIC S5 system.
