Technical Specifications and Input Features

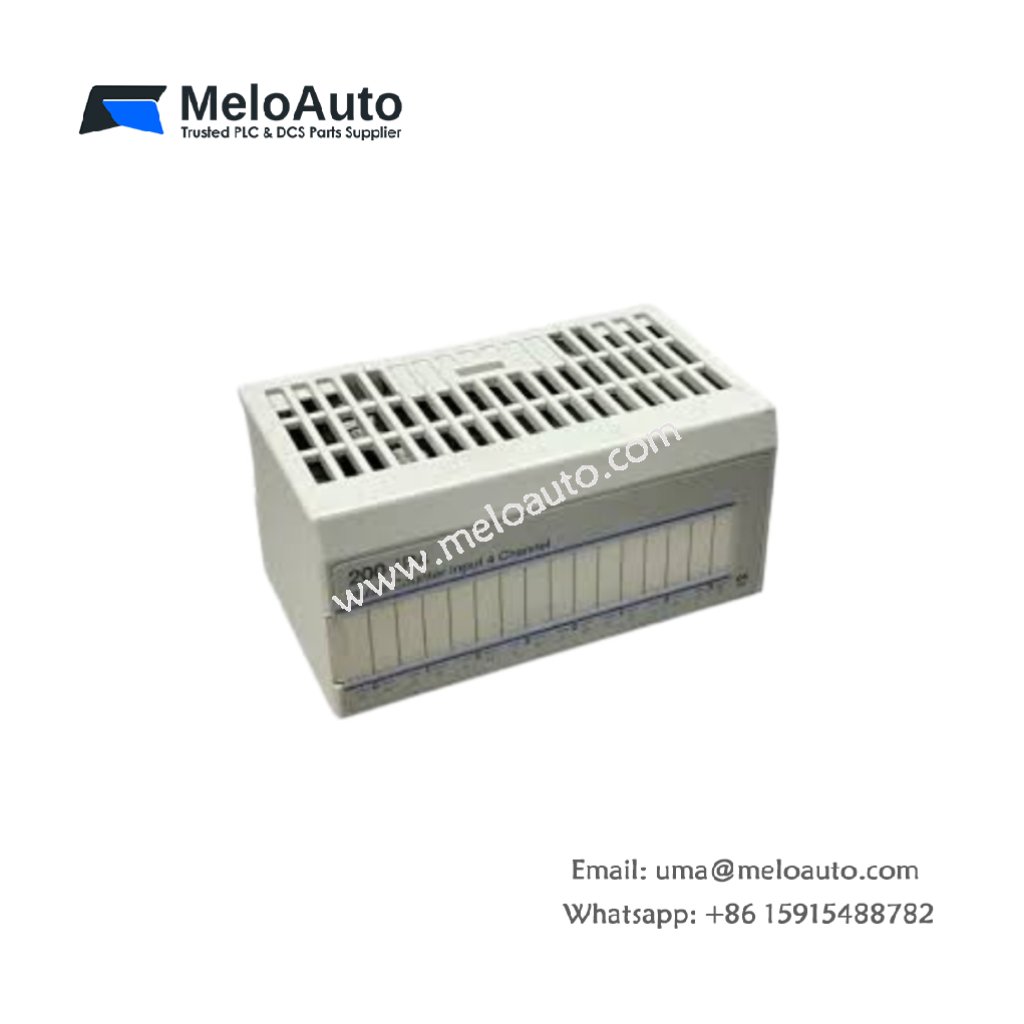

The ABB 200-IP4 frequency counter interface module belongs to the S200 I/O family, compatible with SattLine 200, SattCon 200, and Advant Controller 250 systems . This module provides 4 independent counter inputs for measuring frequency and counting pulses from incremental encoders and high-speed sensors . It supports both 24V DC and 5V DC input signals for flexible integration . The module’s dimensions measure approximately 2.2 cm x 12.4 cm x 12.6 cm, and it weighs about 0.1 kg . It connects to the system via a terminal base with screw connections .
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 200-IP4 |
| Alternative Reference | S200-IP4 |
| Product Family | S200 I/O |
| Product Type | Frequency Counter Interface Module |
| Counter Inputs | 4 independent |
| Input Signal Compatibility | 24V DC (logic level) |
| I/O Position | 4 bytes |
| Mounting | Terminal base with screw connections |
| Dimensions (H x W x D) | 2.2 x 12.4 x 12.6 cm |
| Weight | 0.1 kg |
| Product Status | Obsolete / Discontinued |
Functional Capabilities and Signal Processing
The 200-IP4 module actively measures frequency and counts pulses from sensors and encoders in industrial applications. It handles incremental encoders with A, B, and Z channels for accurate position and speed monitoring . The module supports input frequencies up to 100 kHz, making it suitable for high-speed motion control systems . It processes signals with A, /A, B, /B, Z, and /Z input configurations for differential or single-ended sensors . The 4-byte I/O addressing provides efficient data transfer to the controller. Users can configure the module for various counting modes, including up/down counting and quadrature decoding .
Application Scenarios and Integration
This frequency counter module suits industrial automation applications requiring precise pulse counting and frequency measurement. It integrates seamlessly into SattLine 200, SattCon 200, and Advant Controller 250 systems for motion monitoring, speed detection, and position tracking . The ABB 200-IP4 also serves in packaging machinery, conveyor systems, and rotating equipment monitoring. Its compact design makes it suitable for space-constrained control cabinets. Many legacy installations continue to rely on this module for frequency measurement tasks.
