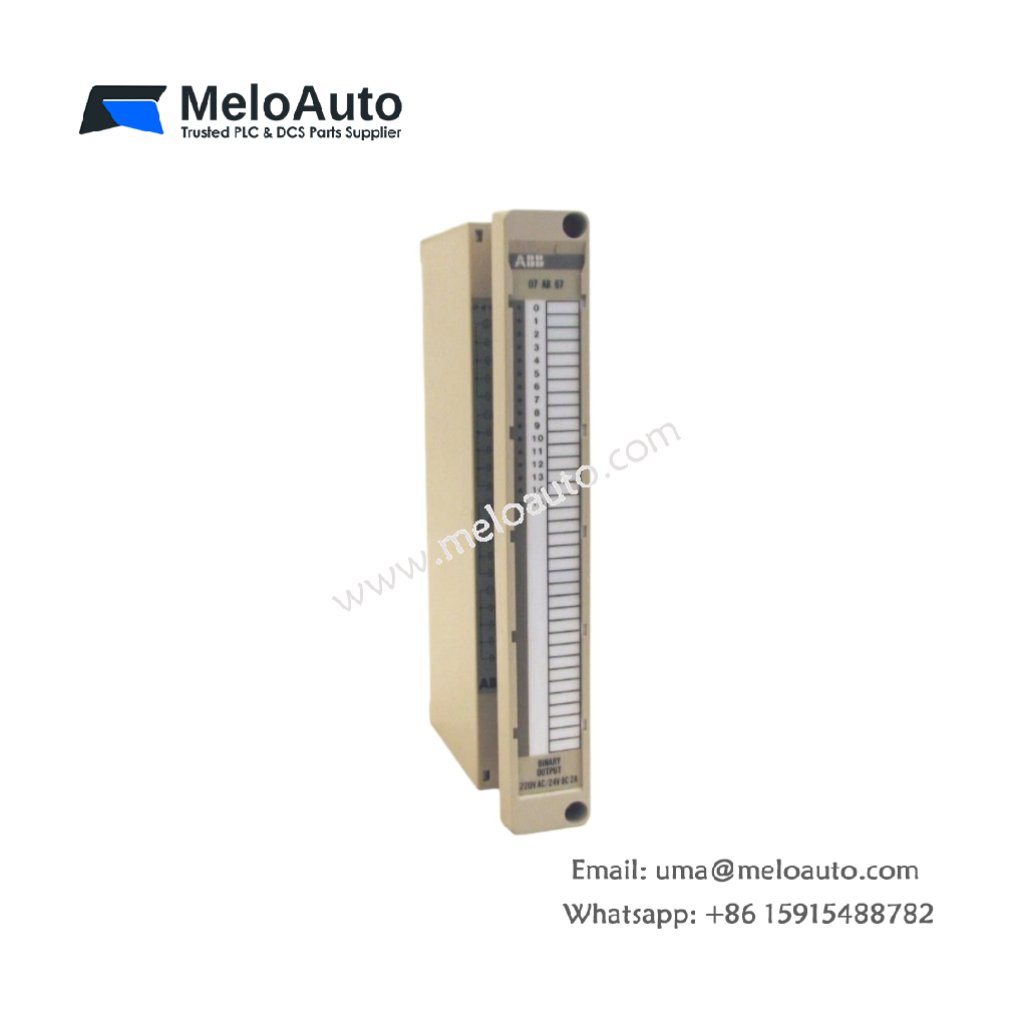

ABB 07AB67R1 Relay Output Module

Technical Specifications and Output Features

The ABB 07AB67R1 relay output module belongs to the Procontic T200 programmable logic controller system . This module provides 16 relay output channels for switching external loads and controlling field devices . Each relay output has a contact capacity of 240V AC at 2A, making it suitable for driving contactors, solenoid valves, and indicator lamps . The module’s dimensions measure approximately 25.4 cm x 5.1 cm x 15.2 cm (L x W x H), and it weighs about 0.5 kg to 0.6 kg . It occupies a single slot in the Procontic T200 rack system . The module includes channel-level LED indicators for real-time status monitoring .

Functional Capabilities

The 07AB67R1 module actively drives binary signal outputs to switch external loads in industrial control applications . It converts the controller’s logic signals into relay contact closures for powering field devices. The module’s 16 independent output channels enable multiple devices to operate simultaneously without additional interfacing components . Its robust design with industrial-grade components ensures reliable operation in demanding industrial environments . Furthermore, the channel-level LEDs simplify troubleshooting by providing immediate visual feedback of each output’s state .

Application Scenarios and System Integration

This relay output module suits a wide range of switching applications within the Procontic T200 system . It integrates seamlessly with central units like 07ZE60, 07ZE61, and 07ZE62 in both centralized and decentralized system configurations . Typical applications include controlling solenoid valves in fluid handling systems, switching contactors in motor control centers, and driving indicator lamps on operator panels. Many facilities continue to rely on this module to maintain and expand their existing Procontic T200 automation infrastructure. Its high contact capacity of 2A at 240V AC eliminates the need for external interposing relays in many applications .
