Technical Specifications and Processor Core

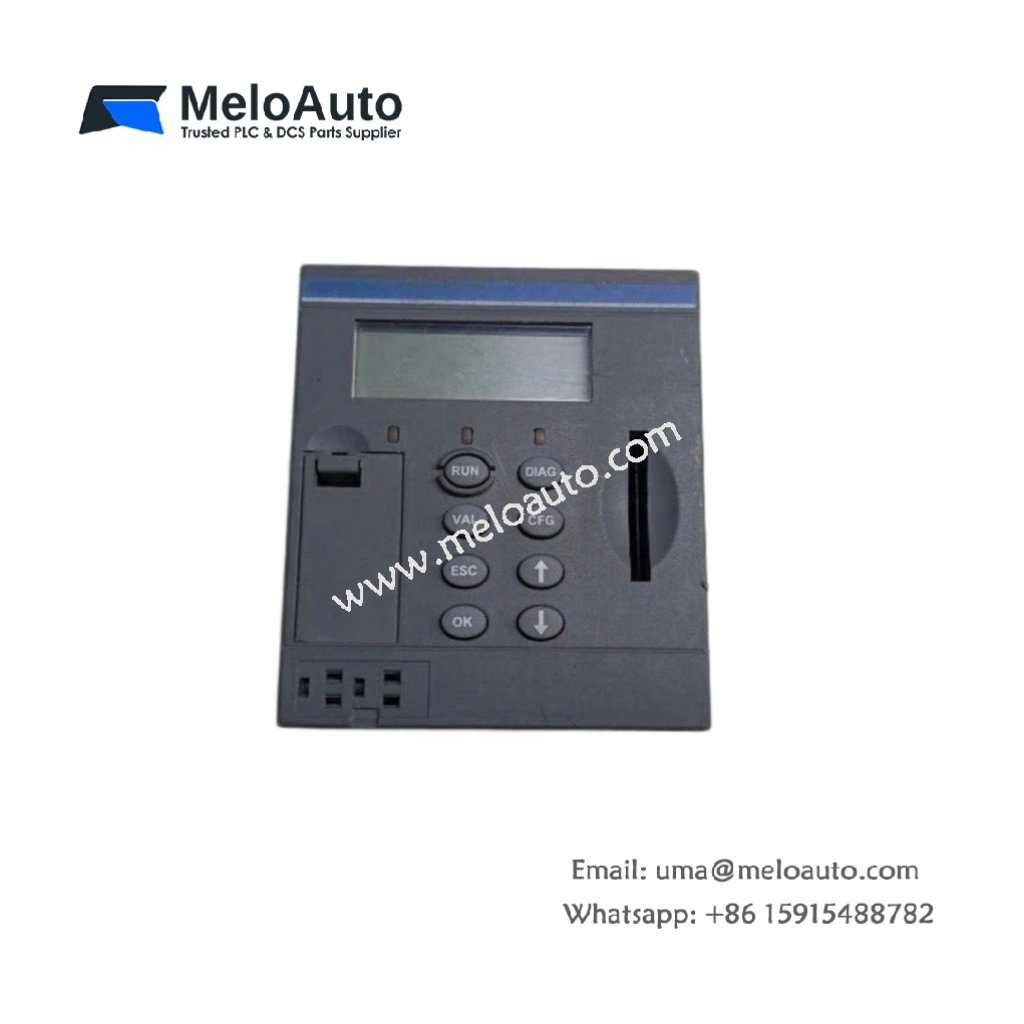

The ABB 1SAP140500R3160 central processing unit, also known as EC581-ARCNET, serves as a high-performance controller within the ABB AC500 automation platform. This CPU module integrates a 32-bit RISC processor operating at up to 200 MHz, delivering cycle times under 10 ms for real-time control applications . The module features 8 MB of DRAM and 4 MB of Flash memory for robust program and data storage . Its power supply requires 24V DC with an operating range of 18–30V DC and consumes a maximum of 5W . The unit measures 158 mm x 100 mm x 30 mm and weighs approximately 0.16 kg to 0.20 kg .
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 1SAP140500R3160 |
| Product Name | EC581-ARCNET |
| Processor Type | 32-bit RISC @ 200 MHz |
| Memory | 8 MB DRAM, 4 MB Flash |
| Power Supply | 24V DC (18–30V range) |
| Power Consumption | 5W (max) |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 158 x 100 x 30 mm |
| Weight | 0.16 – 0.20 kg |
| Protection Rating | IP20 |
| Certifications | UL 508, CE, IEC 61131-2 |
| Product Status | Active |
Functional Capabilities and ARCNET Communication
The 1SAP140500R3160 module executes control logic with high efficiency, managing both centralized and distributed I/O architectures. Its core strength lies in the integrated ARCNET communication interface, which supports deterministic real-time data exchange at 5–10 Mbps . ARCNET’s token-passing protocol ensures predictable network performance, making this module ideal for synchronized multi-axis motion control . The controller supports up to 255 nodes per network in bus or star topologies . Furthermore, it provides online program modification without process interruption, ensuring continuous operation in production environments . The module’s built-in self-diagnostics and predictive maintenance functions enhance system reliability.
Application Scenarios and System Integration
This CPU module suits demanding industrial applications requiring deterministic networking and robust control. It excels in automotive assembly lines, packaging machinery, and material handling systems where precise synchronization is critical . The ABB EC581-ARCNET integrates seamlessly with ABB’s S800 I/O modules, such as DI810 and AI830 series, and supports third-party integration via PROFIBUS DP . Its modular design allows flexible system expansion, accommodating up to 64 I/O modules . For system integrators, this CPU provides a reliable core for both new projects and upgrades to existing ABB AC500-based automation infrastructure.
