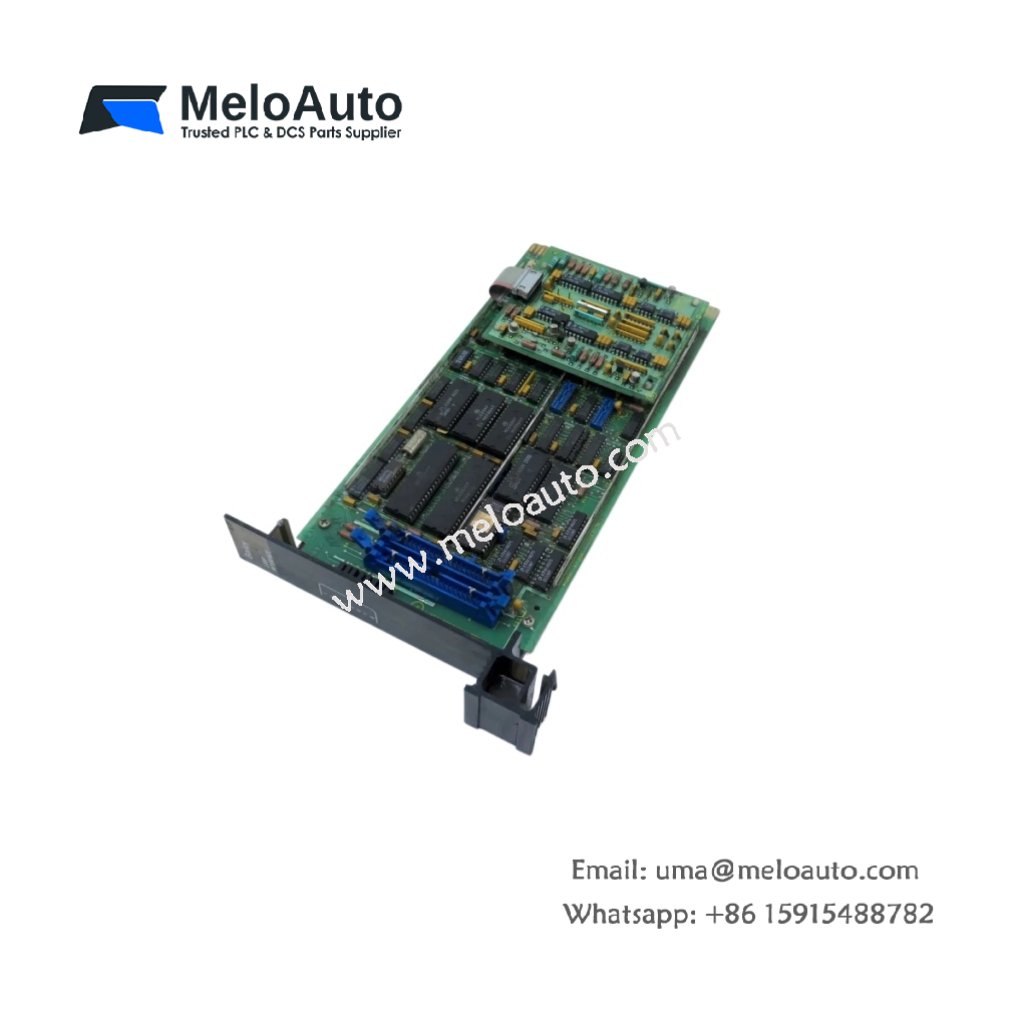

ABB Bailey IEPRA02 Interface Module | 2 Ports

Data Exchange and Protocol Handling

The ABB Bailey IEPRA02 enables data exchange between Bailey controllers and external systems. This module handles multiple communication protocols simultaneously for flexible integration. It bridges the gap between proprietary Bailey networks and standard interfaces.

Technical Specifications

Parameter	Specification
Model	IEPRA02
Category	Interface Module
Height	310 mm
Width	30 mm
Depth	250 mm
Weight	0.62 kg
Communication Ports	2 x serial (RS-232/RS-485 selectable)
Protocol Support	Modbus RTU, DNP 3.0, Bailey proprietary
Data Buffer Size	64 KB dual-port RAM
Scan Rate	10 ms typical
Connector Type	2 x DB9 female, 1 x ribbon cable header
Status Indicators	3 x LEDs (PWR, TX, RX, ERR)
Internal Components	1 main PCB, 1 buffer memory chip, 2 UARTs
Energy Storage	None (no battery or capacitor)

Internal Architecture and Data Flow

The IEPRA02 contains three main internal components for data processing. One main PCB carries all surface-mount integrated circuits. One 64 KB dual-port RAM chip buffers incoming and outgoing messages. Two UART controllers manage serial communication on each port independently. The ABB Bailey IEPRA02 includes four status LEDs on the front panel. A ribbon cable header connects the module to the backplane bus.

Communication Configuration and Setup

Configure each serial port’s protocol using the onboard DIP switches. Select either RS-232 or RS-485 electrical standards for each port. Set the baud rate from 1200 to 115200 through configuration software. The IEPRA02 supports Modbus RTU master and slave modes. It also handles DNP 3.0 and native Bailey proprietary protocols. The module scans data buffers every 10 milliseconds for real-time response.

Physical Dimensions and Installation Guidelines

The ABB Bailey IEPRA02 weighs only 0.62 kilograms for easy handling. Its height measures 310mm, width 30mm, and depth 250mm. This interface module consumes 3.2 watts of power from the backplane. Install the IEPRA02 in any standard Bailey rack slot. The module operates reliably from 0°C to +60°C ambient temperature. The green PWR LED lights up when backplane power is present.

Energy Storage and Maintenance Status

The IEPRA02 stores no electrical energy internally. It includes zero batteries or high-value capacitors. Hence, this interface module requires no scheduled battery replacements. You will never lose configuration data due to power failures. The buffer memory loses all temporary data immediately upon power loss.
