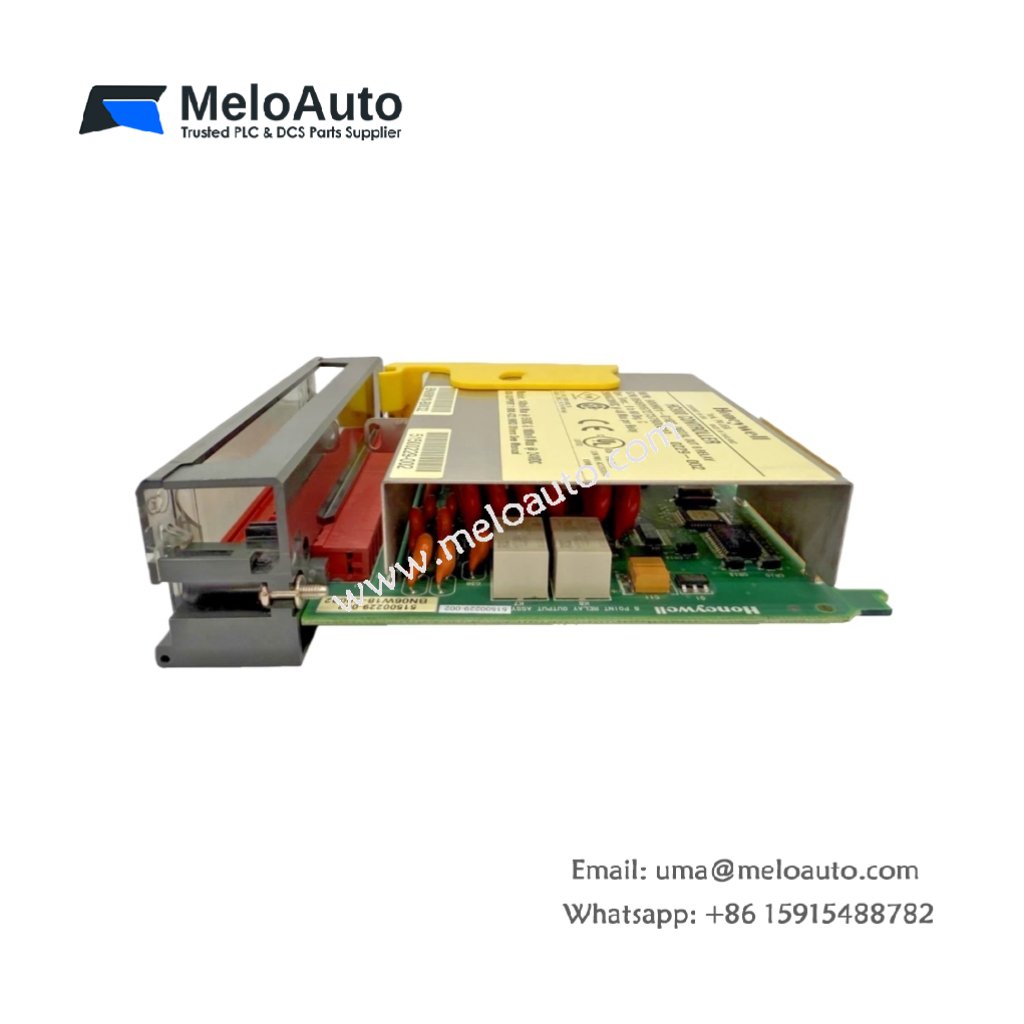

Honeywell 900H01-0102 Digital Relay Output Module

Overview

The Honeywell 900H01-0102 is a versatile digital relay output module designed for use with the Honeywell HC900 Hybrid Controller. This module provides eight discrete electromechanical relay outputs, making it ideal for controlling various field devices such as solenoids, alarms, and motor starters in industrial automation systems. Built to handle demanding environments, it offers high load capacity, robust isolation, and user-configurable failsafe modes to ensure reliable and safe operation.

Key Features

Mixed Relay Configuration: The 900H01-0102 combines Form-A and Form-C relay configurations, providing flexibility for various control applications.
High Load Capacity: This module supports up to 4 A for resistive loads and 0.5 A for incandescent lamp loads, making it suitable for a wide range of devices.
LED Diagnostics: Each relay channel has an LED indicator, allowing for easy troubleshooting and maintenance.
Failsafe Operation: The failsafe mode ensures the module maintains safe output behavior in fault conditions, protecting connected equipment.
Robust Isolation: The galvanic isolation between relay contacts and logic circuitry minimizes electrical interference, ensuring stable performance.
Industrial-Grade Reliability: Designed for demanding automation environments, this module meets the high standards of industrial-grade components.
System Compatibility: Seamlessly integrates with the Honeywell HC900 Hybrid Controller, enhancing the flexibility and functionality of your automation system.

Technical Specifications

Parameter	Details
Model Number	900H01-0102
Series	HC900 ControlEdge
Product Type	Digital Output Module
Output Channels	8 total (4 Form-A, 4 Form-C)
Relay Type	Electromechanical
Voltage Rating	120/240 VAC or 30 VDC
Current Rating	4 A for resistive loads
	0.5 A for incandescent lamp loads
Isolation	Galvanic isolation between relay contacts and logic circuitry
Status Indicators	LED per channel
Failsafe Mode	User-configurable
Mounting	DIN rail or panel
Weight	1.58 lbs
Warranty	12 months
Country of Origin	USA

Applications

The Honeywell 900H01-0102 is ideal for a wide range of industrial applications, including:

Motor Control: Controls motor starters and other related devices.
Solenoid Control: Manages solenoid valves in process control systems.
Alarm Systems: Activates alarms and warning systems in critical areas.
Industrial Automation: Integrates seamlessly with PLCs and machine control systems.
Packaging and Material Handling: Used for controlling devices in automated packaging lines.

Benefits

Enhanced Flexibility: The mixed relay configuration (Form-A and Form-C) enables a wide range of control possibilities.
Easy Troubleshooting: LED status indicators for each channel simplify fault diagnosis and maintenance.
Increased Safety: The failsafe operation ensures safe behavior during power loss or faults, preventing damage to equipment.
High Reliability: Built for industrial environments, the Honeywell 900H01-0102 ensures reliable performance in harsh conditions.
Seamless Integration: Compatible with Honeywell HC900 Hybrid Controllers, it integrates easily into your existing automation systems.
