Technical Overview

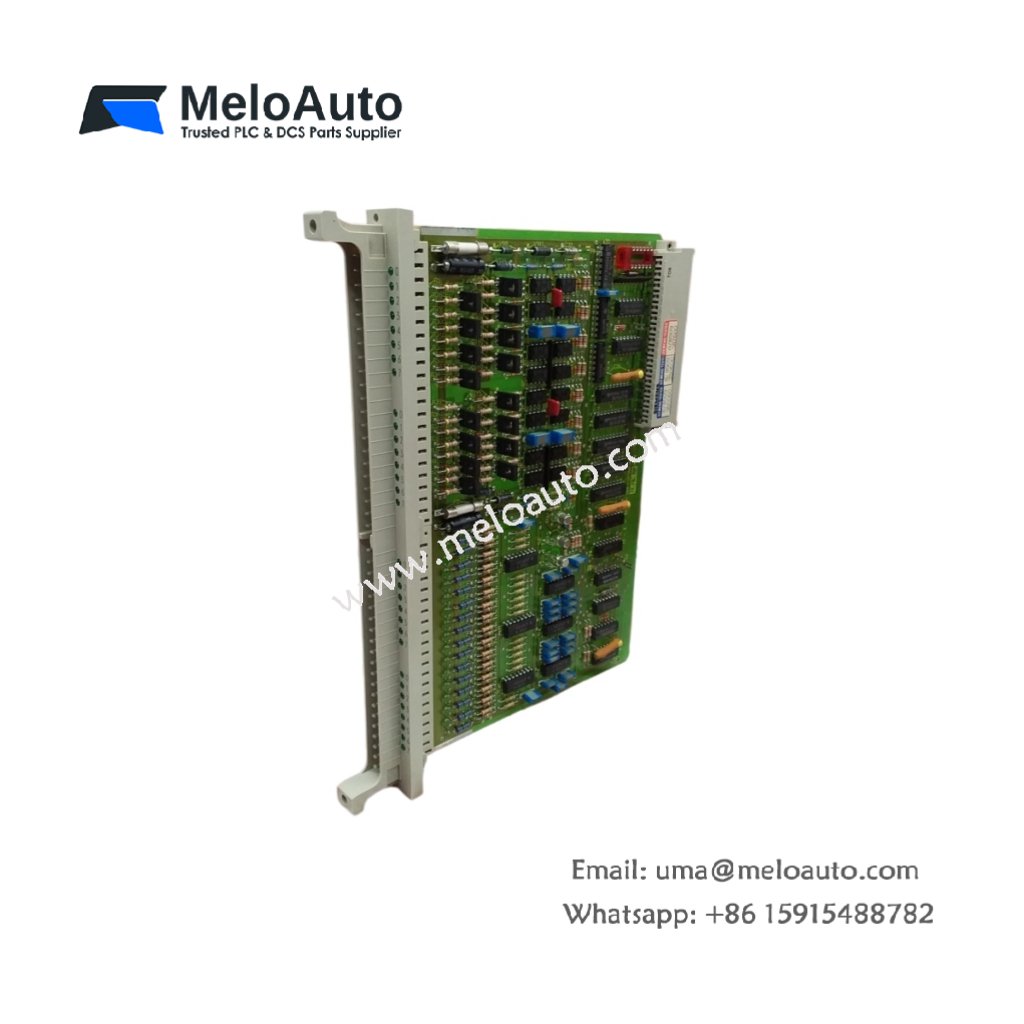

The Siemens 6ES5482-3BA11 is a combined digital input/output module for the SIMATIC S5 programmable logic controller family. This module provides both input and output capabilities within a single slot, offering efficient I/O utilization. It features 16 digital inputs and 16 digital outputs, all operating at 24 V DC. Moreover, optical isolation separates both the inputs and outputs from the system backplane. This hybrid design makes the 6ES5482-3BA11 ideal for applications requiring balanced I/O configurations with high-current output capability.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6ES5482-3BA11 |
| Product Type | Digital Input/Output Module |
| Compatible System | SIMATIC S5 |
| Number of Inputs | 16 isolated digital inputs |
| Number of Outputs | 16 isolated digital outputs |
| Rated Input Voltage | 24 V DC |
| Rated Output Voltage | 24 V DC |
| Input ON-State Voltage | 13.0 V DC to 30.0 V DC |
| Input OFF-State Voltage | ≤ 5.0 V DC |
| Output Current per Channel | 2.0 A continuous |
| Input Current per Channel | 7.0 mA typical |
| Response Time (Inputs) | ≤ 2.5 ms (filtered) |
| Response Time (Outputs) | ≤ 1.0 ms |
| Isolation | 500 V AC between field and system |
| Protection Features | Short-circuit and thermal overload protection on outputs |
| Indicators | LED status display per channel |
| Power Supply | 5 V DC from S5 backplane |
| Current Consumption (5V) | 250 mA typical |
| Dimensions | 1 slot width (25 mm) × 233 mm × 150 mm |
| Weight | Approximately 1.0 kg |
| Operating Temperature | 0°C to 60°C |
Performance and Application Benefits
The 6ES5482-3BA11 combines 16 inputs and 16 high-current outputs in a single module, saving valuable rack space in S5 automation systems. Moreover, the 2.0 A per channel output capability allows direct driving of relays, contactors, and small motors without external interposing devices. In addition, the optical isolation protects the CPU from electrical noise and voltage surges on both field inputs and outputs. Consequently, the built-in filtering on inputs eliminates contact bounce from mechanical switches, preventing false triggers. Furthermore, the output channels include short-circuit and thermal protection for enhanced reliability. Therefore, this module is well-suited for compact control applications requiring high-current outputs, including small conveyor systems, packaging machines, and hydraulic control panels.
