Technical Overview

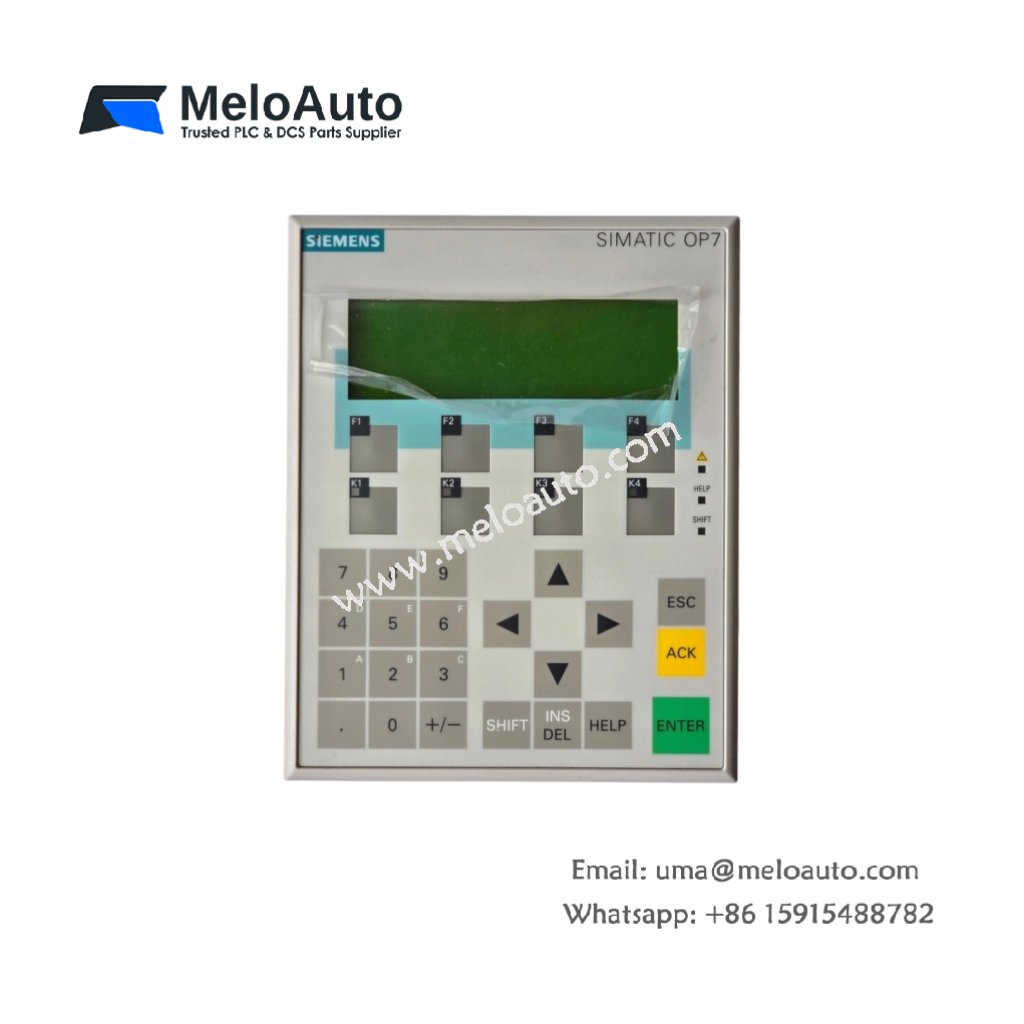

The Siemens 6AV3607-1JC00-0AX1 is an operator panel for the SIMATIC automation family. This HMI device provides a clear interface for machine monitoring and control tasks in industrial environments. It features a 4-inch monochrome display with configurable function keys for user interactions. Moreover, the 6AV3607-1JC00-0AX1 communicates with the PLC via MPI and PROFIBUS protocols. This panel supports alarm handling and process visualization for effective operator supervision.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AV3607-1JC00-0AX1 |
| Product Type | Operator Panel / HMI |
| Compatible Systems | SIMATIC S5 and S7 |
| Display Size | 4 inches diagonal |
| Display Type | Monochrome LCD (blue mode) |
| Resolution | 160 × 64 pixels |
| Function Keys | 4 configurable soft keys |
| Communication Interfaces | MPI and PROFIBUS DP |
| Power Supply | 24 V DC |
| Power Consumption | 10 W typical |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel mount with sealing frame |
| Dimensions (W × H × D) | 160 mm × 120 mm × 45 mm |
| Weight | Approximately 0.8 kg |
| Operating Temperature | 0°C to 50°C |
Performance and Application Benefits
The 6AV3607-1JC00-0AX1 provides a compact and reliable operator interface for small to medium-sized control applications. Moreover, the 4-inch blue-mode display ensures clear visibility under various lighting conditions, including low-light environments. In addition, the four soft keys enable quick access to essential machine functions and screen navigation. Consequently, the MPI and PROFIBUS interfaces facilitate fast communication with the PLC, supporting real-time data exchange. Furthermore, the panel supports alarm messages and simple process graphics, offering operators immediate feedback on system status. Therefore, this operator panel is ideal for applications requiring a compact HMI solution, including small conveyor systems, packaging machines, and stand-alone automation cells.
