Technical Overview

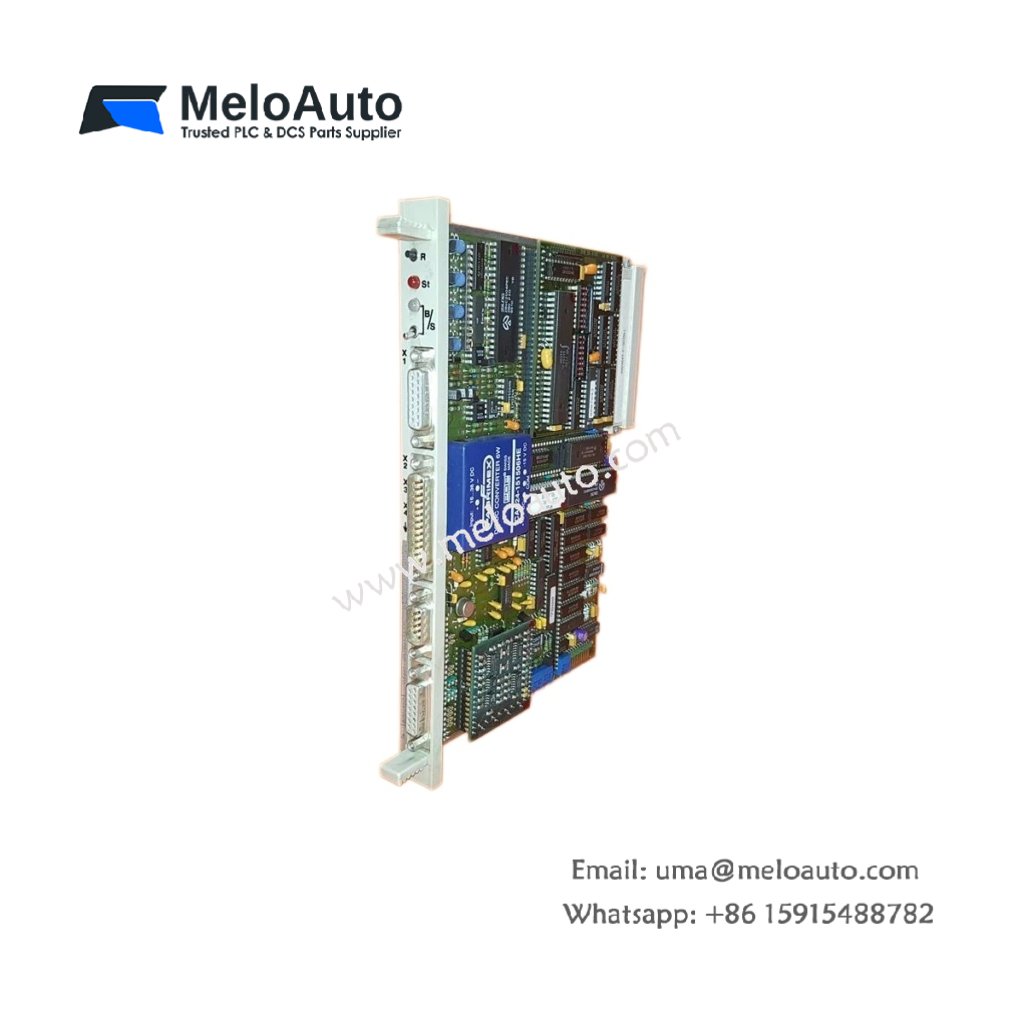

The Siemens 6FM1661-3AA10 is a WF661 positioning module for the SIMATIC S5 programmable logic controller family . This module provides precise motion control capabilities for positioning axes, conveyors, and machine tools in industrial automation systems . It supports various axis types, including linear axes with software limit switches and rotary axes with configurable end-of-rotation values . Moreover, the 6FM1661-3AA10 handles target range monitoring, standstill monitoring, and velocity supervision for accurate positioning tasks .
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6FM1661-3AA10 |
| Product Type | Positioning Module / WF661 |
| Compatible System | SIMATIC S5 |
| Positioning Channels | 1 positioning channel |
| Axis Types | Linear axis or rotary axis (configurable) |
| Target Range Monitoring | 0 to 1,000,000,000 μm (configurable) |
| Monitoring Time | 0 to 100,000 ms (rounded to 8 ms cycles) |
| Standstill Range | 0 to 1,000,000,000 μm (configurable) |
| Standstill Velocity | 0 to 100,000 μm/min (configurable) |
| Software Limit Switches | Start and end limits for linear axes |
| Indicators | LED for module status and fault detection |
| Power Supply | 5 V DC from S5 backplane |
| Dimensions | 1 slot width (25 mm) × 233 mm × 150 mm |
| Weight | Approximately 1.0 kg |
| Operating Temperature | 0°C to 60°C |
Performance and Application Benefits
The 6FM1661-3AA10 provides precise motion control for positioning applications in S5 automation systems . Moreover, the module supports both linear and rotary axis configurations, offering flexibility for various machine designs . In addition, the configurable target range and monitoring time ensure accurate target approach and position verification. Consequently, the standstill monitoring function detects drive drift, preventing unintended axis movement after positioning completes . Furthermore, the software limit switches for linear axes protect against mechanical over-travel, enhancing system safety . Therefore, this positioning module is well-suited for applications requiring accurate motion control, including CNC machines, conveyor systems, and automated assembly stations.
