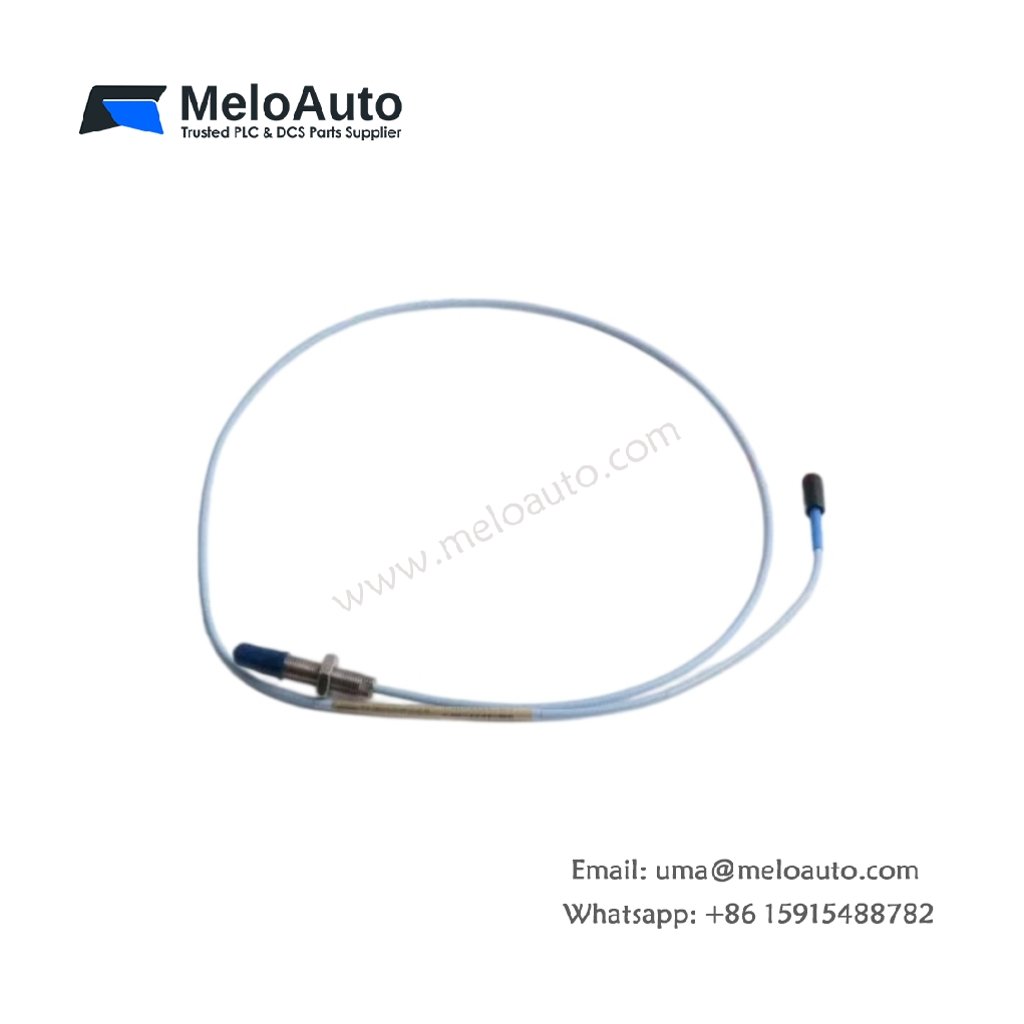

Bently Nevada 330103-00-04-10-02-05 | 3300 XL 8mm Transducer

Core Technical Specifications

The 330103-00-04-10-02-05 belongs to the Bently Nevada 3300 XL series and functions as an 8 mm eddy current proximity transducer. It delivers non-contact displacement measurement for shaft vibration, axial position, and keyphasor monitoring. Therefore, reliability engineers depend on this transducer for continuous rotating machinery protection.

Full Parameter Table

Parameter	Specification
Model	330103-00-04-10-02-05
Series	3300 XL
Thread Type	M10 × 1
Unthreaded Length	0 mm
Case Length	40 mm
Total Length	1.0 meter (3.3 feet)
Tip Diameter	8 mm
Tip Material	Polyphenylene sulfide (PPS)
Case Material	AISI 303/304 stainless steel
Connector	Miniature coaxial ClickLoc
Linear Range	2.0 mm (80 mils)
Scale Factor	7.87 V/mm (200 mV/mil)
Operating Temperature	-51°C to +177°C
Pressure Seal	7 bar (100 psi)
Weight	Approximately 0.13–0.5 kg depending on packaging

Physical Design and Interface Features

This transducer features a fully threaded M10 × 1 case with a 40 mm body length. The mid-length housing balances reach and clearance for most bearing housing installations. Furthermore, TipLoc molding bonds the PPS tip firmly to the stainless steel body. Meanwhile, CableLoc construction provides 330 N of pull strength at the cable junction.

System Integration Notes

The operates as one component inside a complete 3300 XL transducer system. Consequently, it requires a matching extension cable and Proximitor sensor for accurate readings. A 1.0-meter probe typically pairs with a 4.0-meter cable, creating a 5-meter system length. However, users should always verify impedance compatibility before combining different cable lengths.
